Name: China ODM Automotive Training Equipment Manufacturers, Suppliers - Engineering Education Equipment - Zhongcai
Brand: Zhongcai
SKU: 319346351

**Core Configuration:** Includes a lithium iron phosphate (LFP) power battery pack, an integrated BMS (Battery Management System) unit, an on-board charger, a GB-standard charging port/gun, an emergency power-off switch, a Hall-effect current sensor, DC contactors (including charging, main positive, main negative, and pre-charge relays), a DC-DC converter, an auxiliary battery (12V 45Ah), a discharge load, a pre-charge resistor, etc. **Fault Simulation:** Most units are equipped with a fault simulation and assessment system capable of simulating issues such as open circuits, high-voltage interlock anomalies, individual cell overcharge/over-discharge, and excessive temperatures; there are at least 12–15 fault points.

Send Inquiry

Product Introduction

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of odm automotive training equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

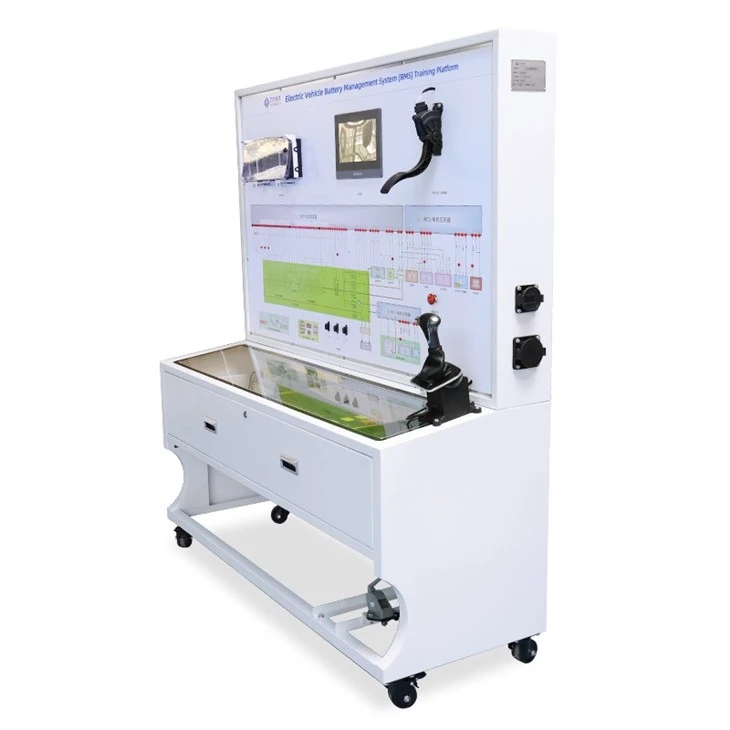

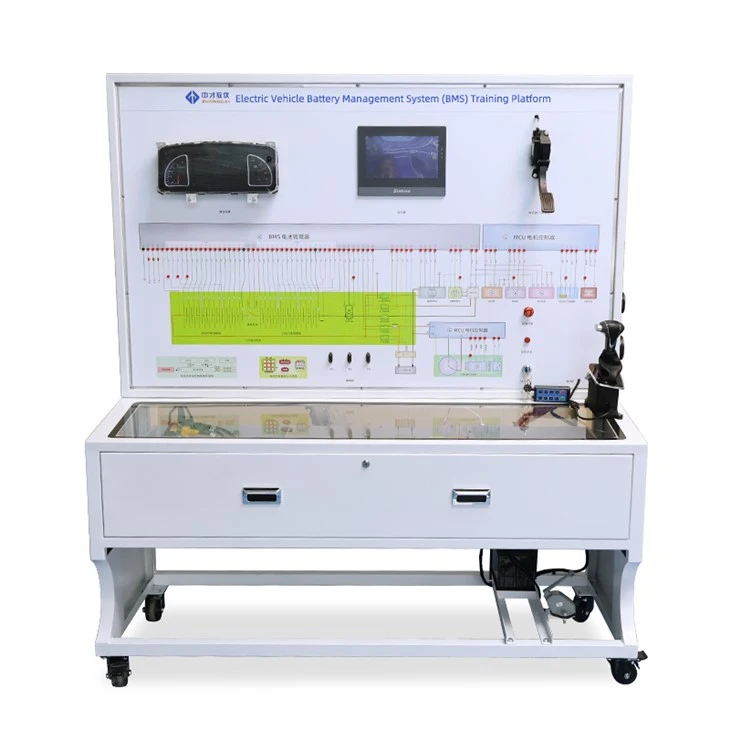

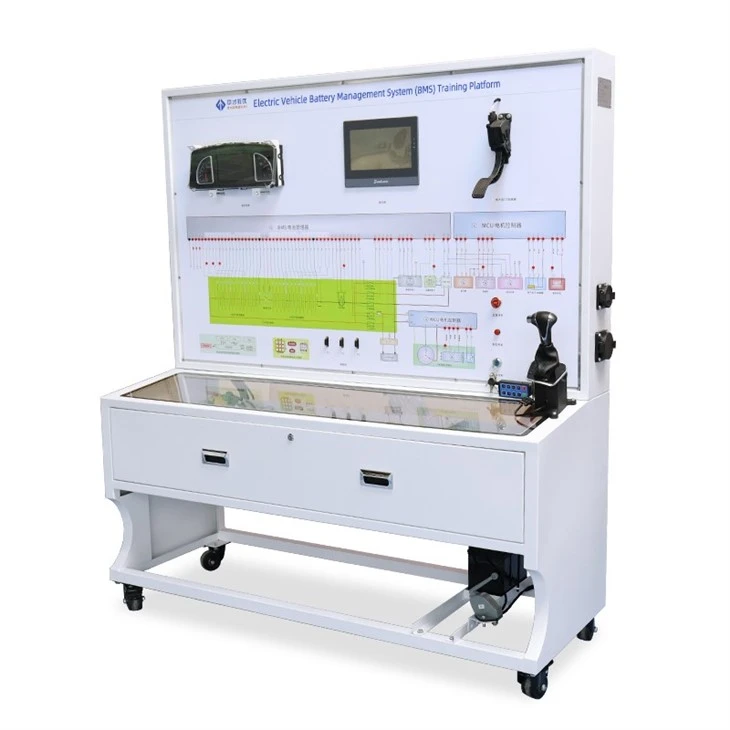

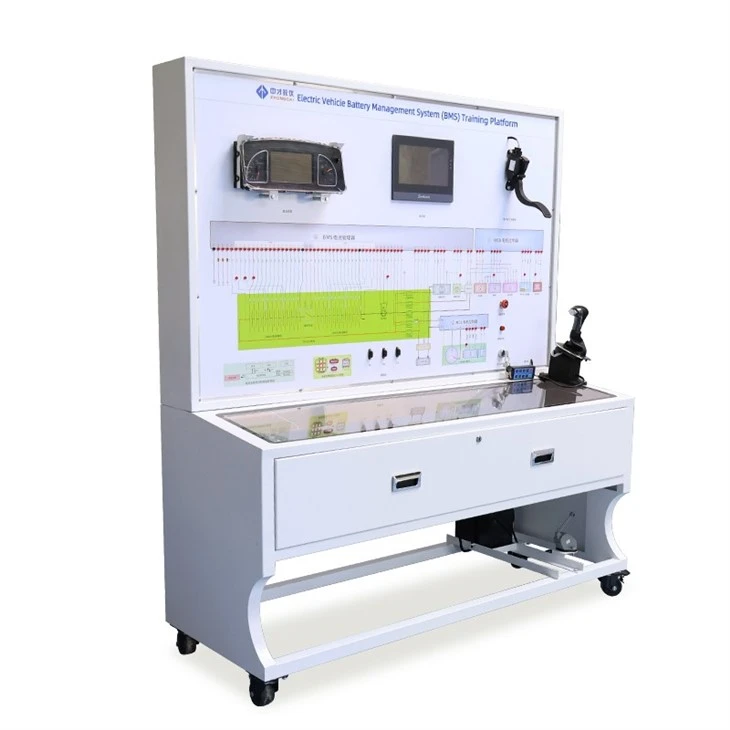

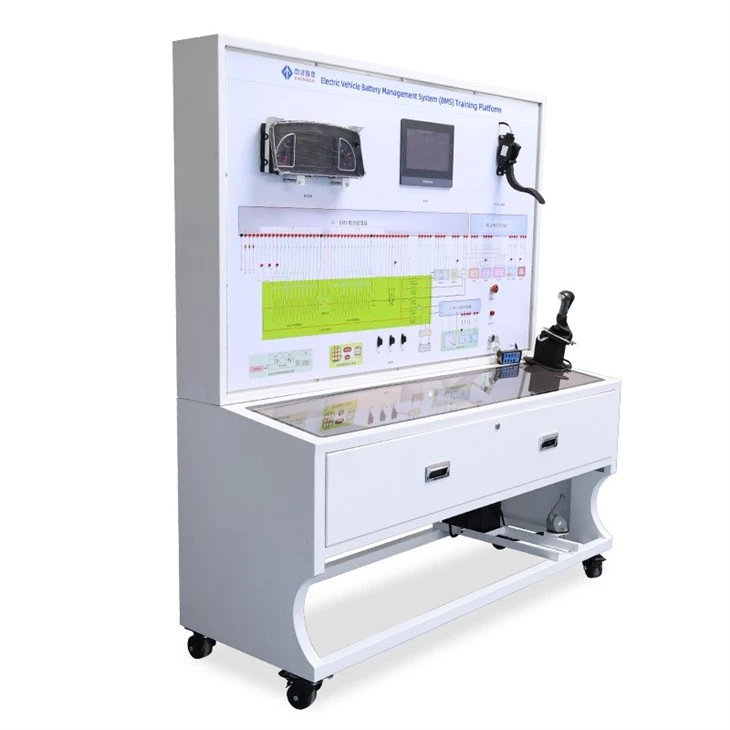

ODM Automotive Training Equipment – Battery Management System (BMS) Training Bench

I. Battery Management System (BMS) Training Bench

1. ODM Automotive Training Equipment unit consists of a battery management system, a traction battery pack, a battery pack control unit, a main relay, a traction battery cooling system, a traction battery heating system, an auxiliary battery, an LCD screen, a computer, a measurement panel, and a support frame.

2. The measurement panel features a printed circuit schematic of the battery management system and is equipped with 4mm measurement terminals.

3. It includes a fault-setting system based on a digital keypad, allowing for the introduction of specific faults by entering designated codes (using the 0–9 numeric keys).

4. It features an integrated data acquisition and communication module, supporting teaching software that combines theory with practical application.

5. ODM Automotive Training Equipment provides functions such as the acquisition of battery status parameters, battery state monitoring, battery pack fault diagnosis, and cell balancing/protection.

6. ODM Automotive Training Equipment can demonstrate the following operational processes: ① The battery pack control unit monitors the status of the traction battery pack and transmits relevant information to the Electric Vehicle Control Unit (EVCU); the EVCU then regulates the battery cooling fans or heaters to maintain the traction battery pack within its optimal temperature range. ② It demonstrates the charging and discharging processes of the battery pack; the EVCU calculates the State of Charge (SOC) of the traction battery pack based on voltage, current, and temperature data, while managing the entire charging and discharging cycle. III. Technical Specifications Dimensions: 1250 × 900 × 1620 mm Lithium Battery Pack: 72V 40Ah Panel: 4mm aluminum-plastic composite board (with UV-printed graphics) Color: 7032 (Gray) Steel Tubing: 40 × 40 × 3 mm Enclosure: 1.5mm cold-rolled steel sheet (stamped/formed), with an access door on the rear side Casters: 100 × 60 mm
