Power Steering System Training Platform

Product Introduction

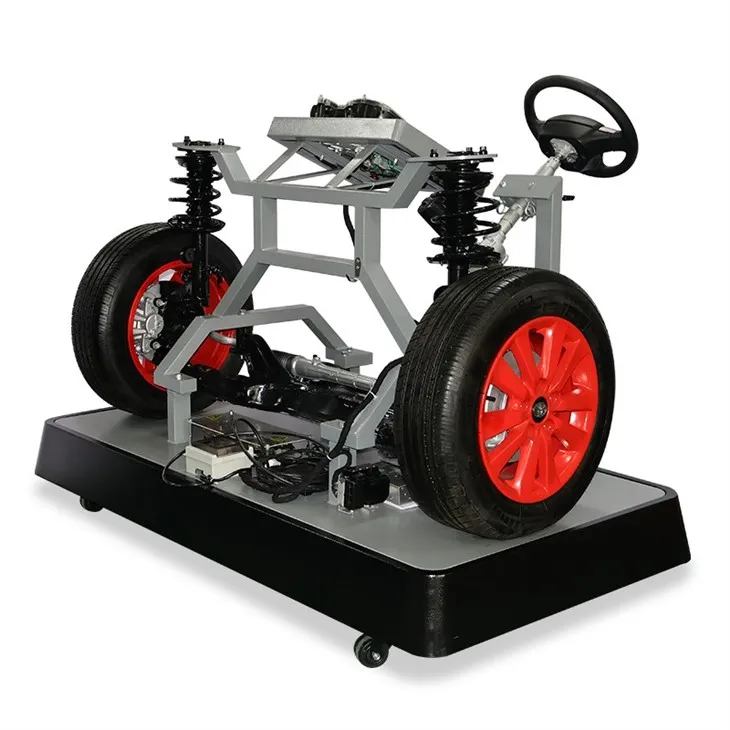

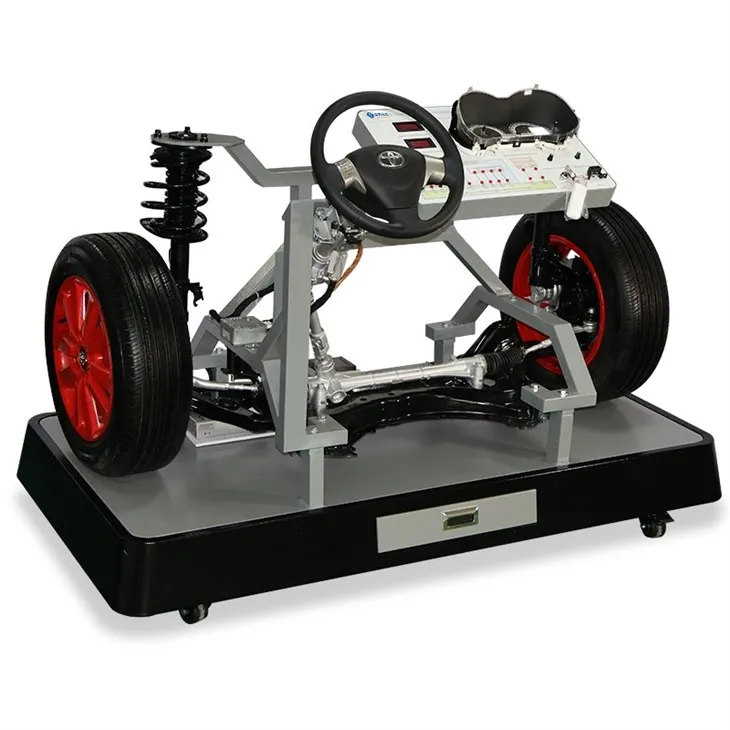

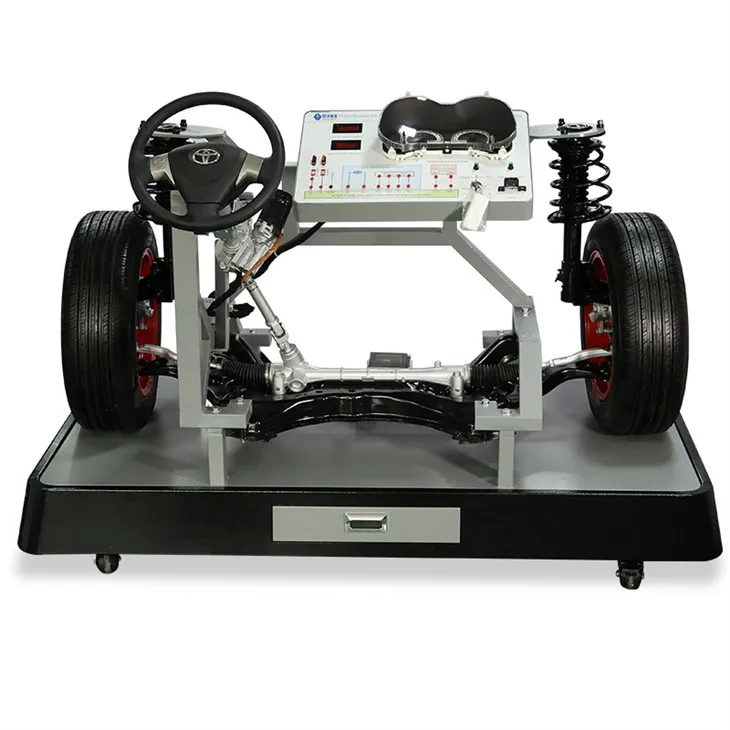

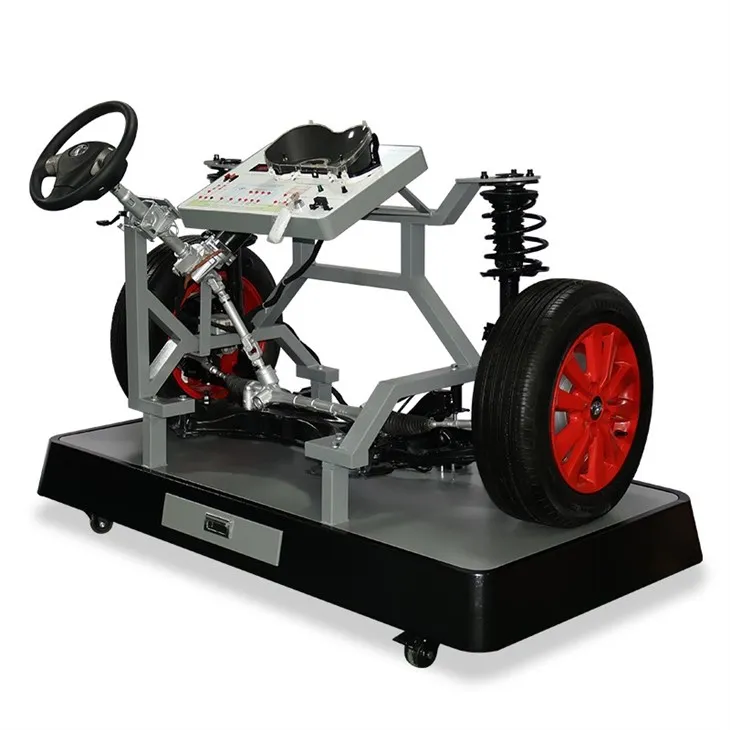

The Power Steering System Training Platform is designed based on the original Honda Fit Electric Power Steering System, providing a highly realistic simulation of automotive steering operation.

This automotive training equipment enables students to clearly understand the structure, working principles, and control logic of the electric power steering system, making it an ideal solution for vocational education, technical institutes, universities, and training centers.

With user-friendly operation, high safety standards, and stable performance, this power steering training platform supports both teaching demonstration and practical hands-on training.

Main Components

This Electric Power Steering System Training Platform is equipped with complete real vehicle components, including:

Original front axle assembly

Steering wheel and steering shaft with universal joint

Steering control unit (ECU)

Instrument cluster and display system

Electric power assist motor

Front suspension system

Front wheels and tires

Movable training bench with lockable casters

The integrated design ensures this automotive steering training equipment reflects real vehicle structure and enhances practical learning efficiency.

Product Features

This Power Steering System Training Platform combines durability, functionality, and advanced teaching capabilities:

High-Strength Panel Design
The panel is made of 8mm thick high-strength acrylic, offering excellent resistance to impact, wear, temperature changes, moisture, and corrosion, ensuring long-term use without deformation.

Real-Time Data Monitoring
Equipped with a combination meter and digital display, this electric power steering system training equipment allows real-time monitoring of key parameters such as vehicle speed, engine speed, and sensor signals.

Durable and Professional Structure
Constructed with international standard aluminum alloy profiles, the platform is lightweight, corrosion-resistant, and environmentally friendly, with a clean and professional appearance.

Flexible and Safe Operation
The movable design with self-locking casters ensures easy positioning, stable operation, and safe use in different teaching environments.

Technical Specifications

Product Name: Power Steering System Training Platform

System Type: Honda Fit Electric Power Steering System

Display Type: Digital and Analog Combination Meter

Panel Material: 8mm High-Strength Acrylic

Frame Material: International Standard Aluminum Alloy

Mobility: Movable with Self-Locking Casters

Application: Automotive Training Equipment for Education

Function: Teaching, Training, Diagnosis and Demonstration

Our Unique Advantages

Compared with other suppliers, our automotive training equipment provides more complete teaching solutions:

Free Diagnostic Tools Included
We provide additional diagnostic and testing tools with the power steering system training platform, helping students perform real fault detection and troubleshooting.

Complete Training Courses Support
Professional teaching materials and training courses are available, making it easier for instructors to deliver structured lessons on the electric power steering system.

Rich Industry Experience
With years of experience in manufacturing automotive training equipment, we understand the real needs of vocational education and offer reliable, practical solutions.

Customization Service Available
We support customized design based on different teaching requirements, ensuring the automotive steering training platform matches your curriculum.
