Whole Vehicle Cutaway Model For Automotive Education Equipment

Product Specifications

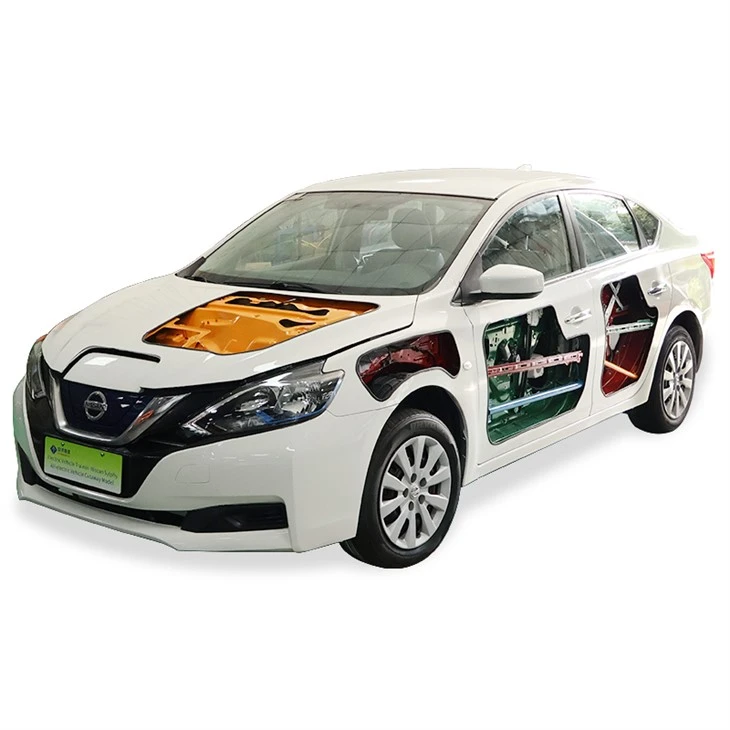

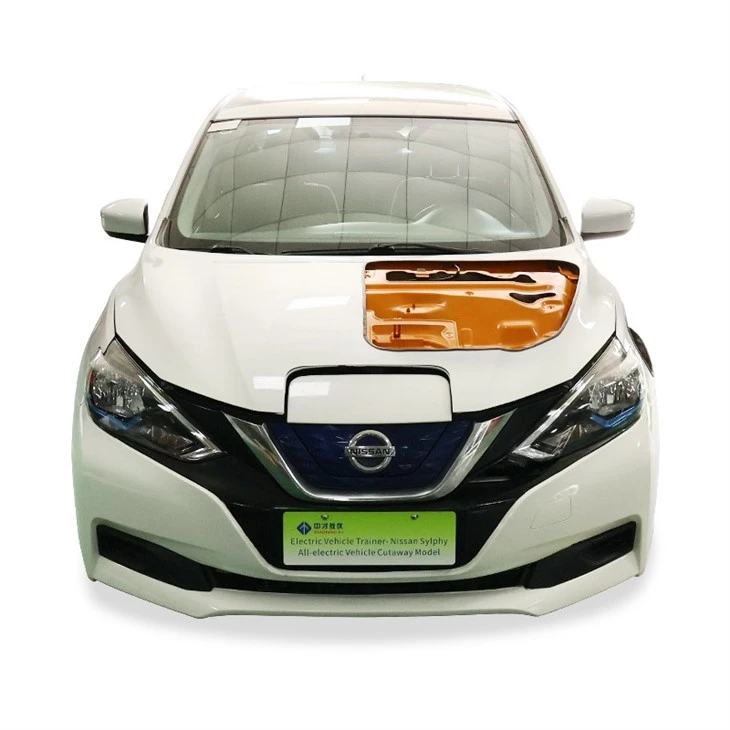

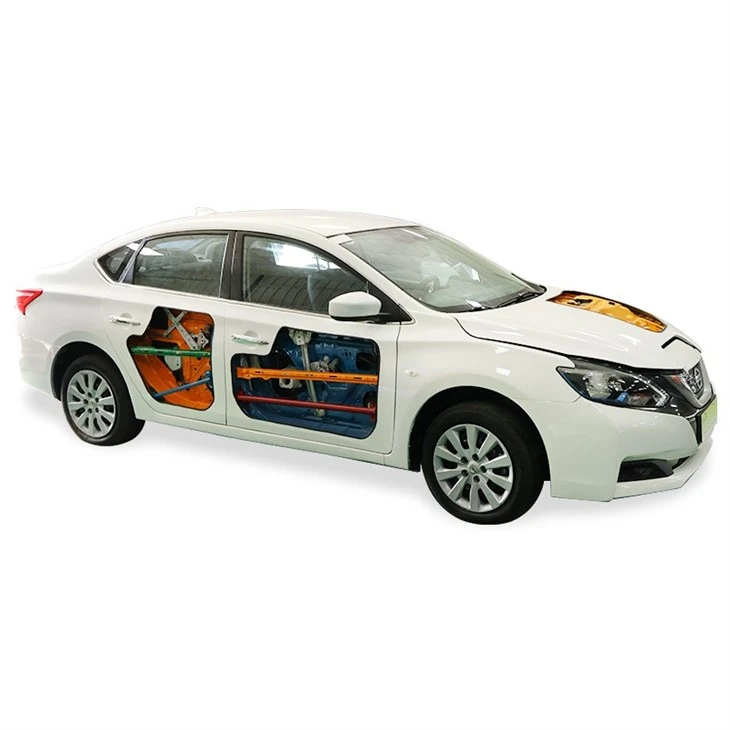

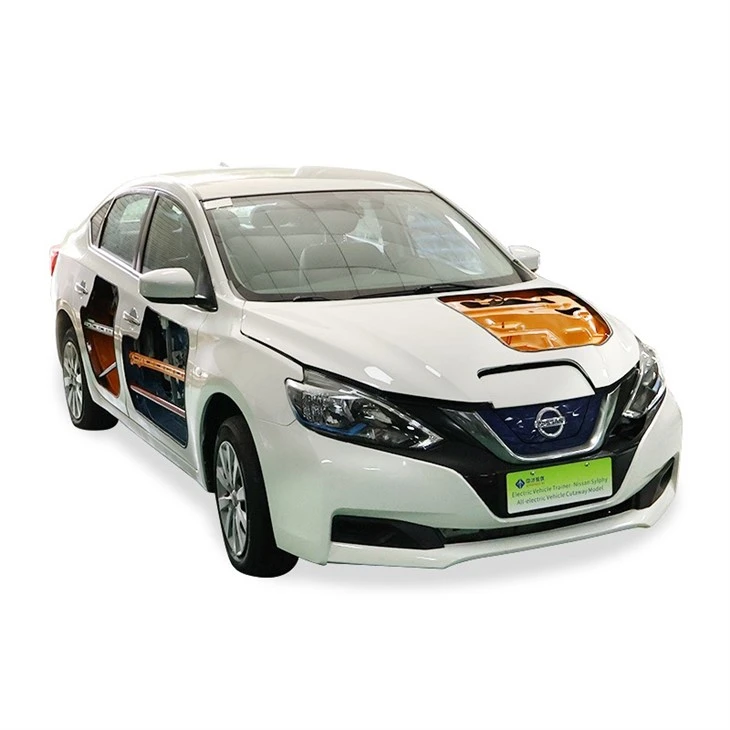

The New Energy Vehicle (NEV) Cutaway Display Platform is a type of New Energy Vehicle Education Equipment designed for automotive vocational education, practical training, and technical assessment. Based on a complete vehicle with selected sections removed, this Automotive Teaching Equipment clearly reveals the original vehicle structure and the relative positioning of its components.

LED light strips are installed along the high-voltage wiring harnesses. Their circulating light effects intuitively illustrate the direction of energy flow within each high-voltage circuit. The platform incorporates semi-transparent acrylic materials paired with dynamic flowing lights to demonstrate the vehicle's propulsion process, making it an effective Automotive Education Equipment solution for explaining new energy vehicle operating principles.

Through the exposed chassis system, students can study high-voltage connection methods and safety protocols for electric vehicles while gaining an understanding of the structure and operating principles of core NEV systems, including the battery, drive motor, and electronic control systems. This New Energy Vehicle Training Equipment is suitable for vocational colleges, automotive training centers, and technical laboratories.

Users can examine and study the traction battery pack, understand the series-parallel configuration of battery modules, and practice the disassembly and installation of individual modules. The platform supports hands-on learning and helps students develop practical skills in new energy vehicle battery system maintenance.

The drive motor section provides a clear view of the internal structure of the permanent magnet synchronous motor (PMSM) and the operation of the transmission gearbox. It also demonstrates the installation location and working principle of the resolver (rotary position sensor), helping students understand the structure and functions of key electric drive components.

The display platform clearly demonstrates the connection methods and operating principles of both slow AC charging and fast DC charging. As practical Automotive Training Equipment, it helps learners understand electric vehicle charging systems, high-voltage circuit layouts, and energy transmission processes.

Technical Specifications

Range: 400 km

Fast-Charging Time: 1.5 hours

Battery Voltage: 604.8 V

Vehicle Dimensions: 4680 × 1765 × 1500 mm

Maximum Speed: 130 km/h

Transmission: Single-Speed Fixed Gear Ratio

Maximum Horsepower: 217.6 hp

Maximum Power: 160 kW

Maximum Torque: 310 N·m
