Hybrid Vehicle Structure Cutaway Model For Automotive Teaching Equipment

(I) Product Introduction

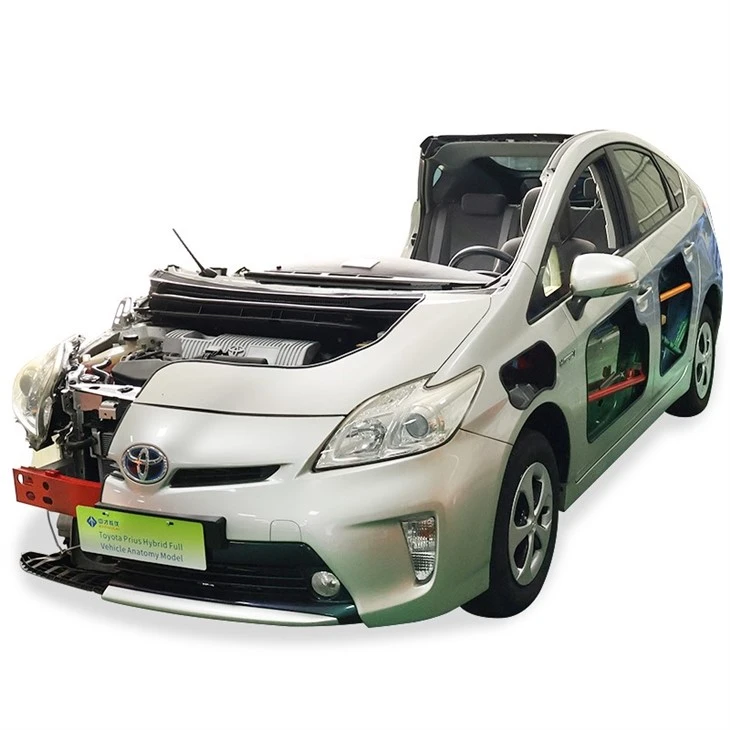

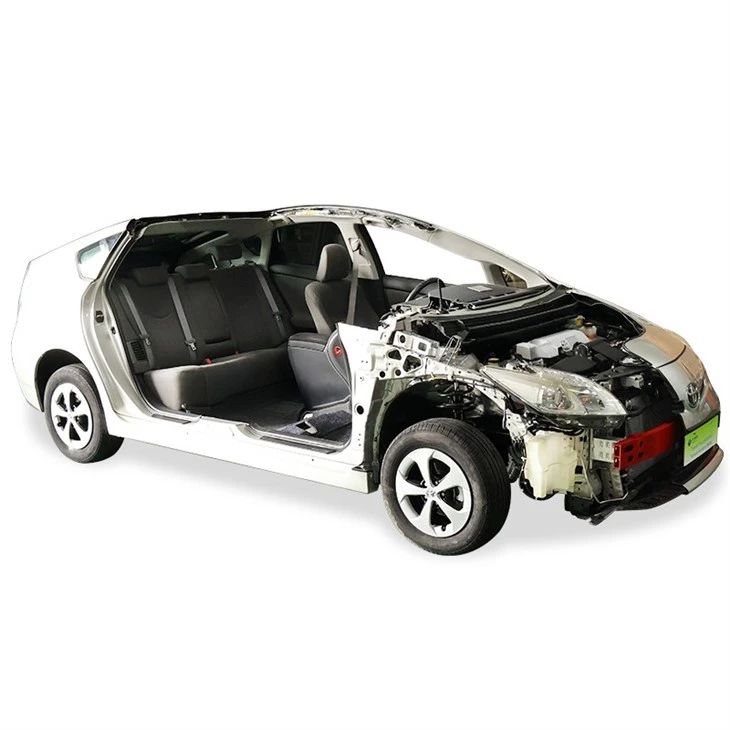

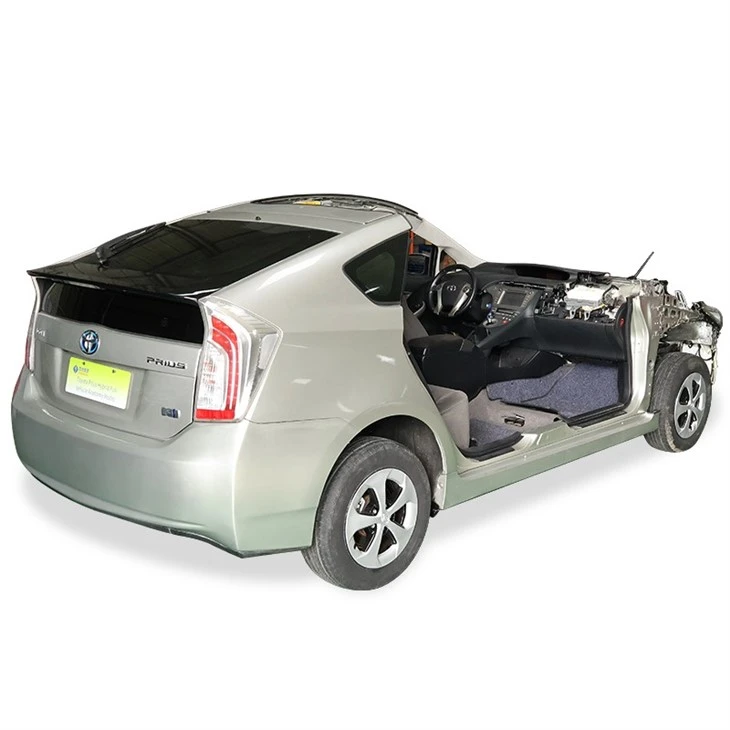

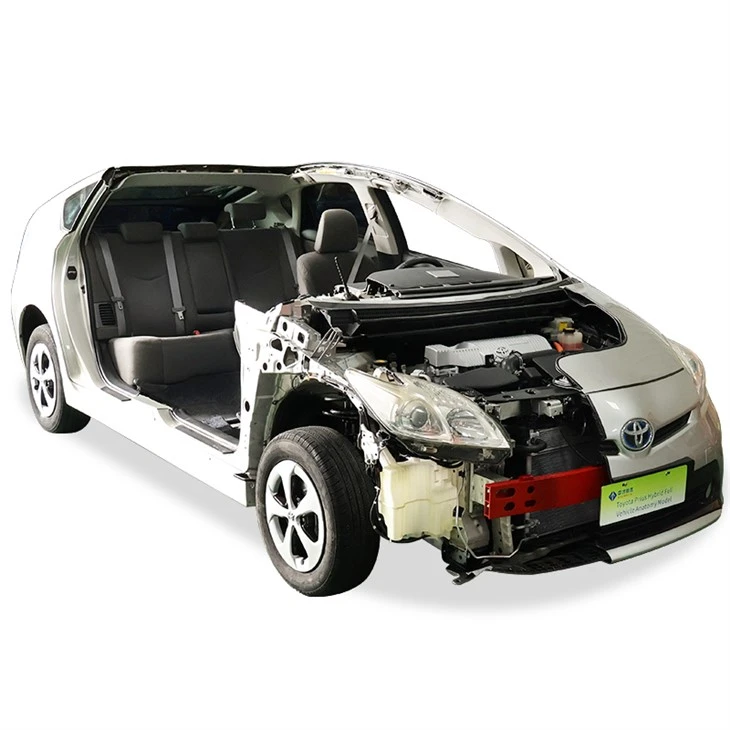

This is a multi-angle, cross-sectional demonstration model of a hybrid vehicle, designed as Automotive Education Equipment for professional automotive teaching and practical training. It allows for a clear view of the engine compartment, the structural composition of the vehicle's side panels, the thickness of the steel plating, the independent suspension system, and even cross-sections of the wheel hubs and tires. Furthermore, components typically concealed-such as the steering wheel, gear shifter, handbrake, seatbelt anchor points, and seatbelt retractors-have been specially sectioned to reveal their internal precision engineering and construction. This Automotive Teaching Model effectively showcases the various vehicle assemblies and the positioning of their respective accessories, making it suitable for automotive vocational education.

(II) Structural Composition

The system consists of a cross-sectioned hybrid vehicle assembly, a reduction motor with accessories, and a mobile stand. As a type of Hybrid Vehicle Training Equipment, it includes instructional materials and is suitable for assessment and training within automotive professional programs.

(III) Functional Features

Major assemblies are sectioned, color-coded for distinction, and treated with anti-rust coatings.

The operational movement of key components is clearly visible, with specific colors used to intuitively trace the power transmission path.

Ideal for teaching the overall structure and fundamental operating principles of an automobile, serving as practical Automotive Training Equipment for vocational education.

Body panels, interior trim, and paintwork remain in excellent condition, with all standard equipment present.

Motor-driven: 220V/750W, operating at 12–15 rpm, allowing all moving parts to be demonstrated in motion.

Equipped with a mobile steel stand featuring lockable casters. The stand is finished with high-quality, corrosion-resistant metallic paint, making it suitable for Automotive Teaching Equipment in various training environments.

Sectioned areas include: powertrain systems, transmission, vehicle body structure, body panels, hybrid control systems, and major electrical system components.

(IV) Technical Specifications

Dimensions: Based on original vehicle specifications
Power Supply: 220V AC
Operating Voltage: 12V DC
Operating Temperature: -50°C to 50°C
