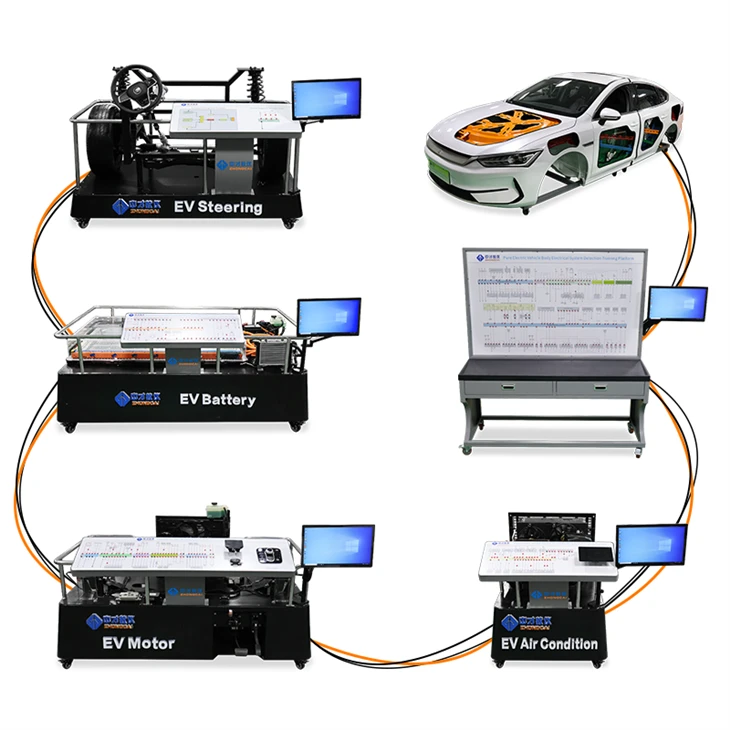

The 5-in-1 EV Integrated Training System is a professional OEM Automotive Training Equipment solution designed for automotive vocational colleges, technical training centers, and educational institutions. Integrating five major electric vehicle training systems and a body electrical system, this platform supports comprehensive instruction in new energy vehicle structure, operation, testing, maintenance, and fault diagnosis.

Designed for integrated automotive education and practical training, this OEM Automotive Training Equipment combines independent training benches with interconnected system functions, allowing students to study individual components and understand how different electric vehicle systems work together. OEM customization options can be discussed according to project requirements, teaching objectives, and equipment configuration.

2. Integrated Training Modules

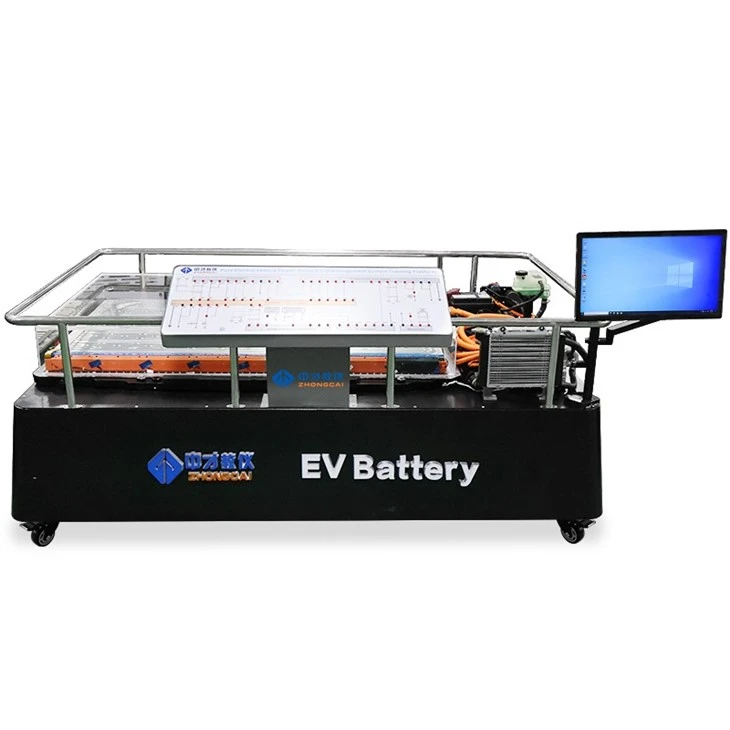

2.1 Traction Battery and Management System Training Bench

Dimensions: Approximately 1300 × 1800 × 1700 mm

This training bench demonstrates the charging, discharging, and battery management processes of an electric vehicle traction battery pack. It helps students understand battery operating principles, battery management functions, and the relationship between battery performance and vehicle operation.

As part of the OEM Automotive Training Equipment system, this module supports practical teaching in battery technology, battery management systems, and new energy vehicle maintenance.

2.2 High-Voltage Charging and Power Distribution Assembly Training Bench

Dimensions: Approximately 1000 × 1500 × 1700 mm

This module integrates a motor control module, on-board charging module, DC-DC converter module, high-voltage power distribution module, and leakage detection module. It demonstrates the functions and relationships of key high-voltage electrical components.

Students can study high-voltage power distribution, charging processes, DC-DC voltage conversion, and electrical safety monitoring. The modular design also provides a foundation for OEM Automotive Training Equipment configurations tailored to different teaching programs.

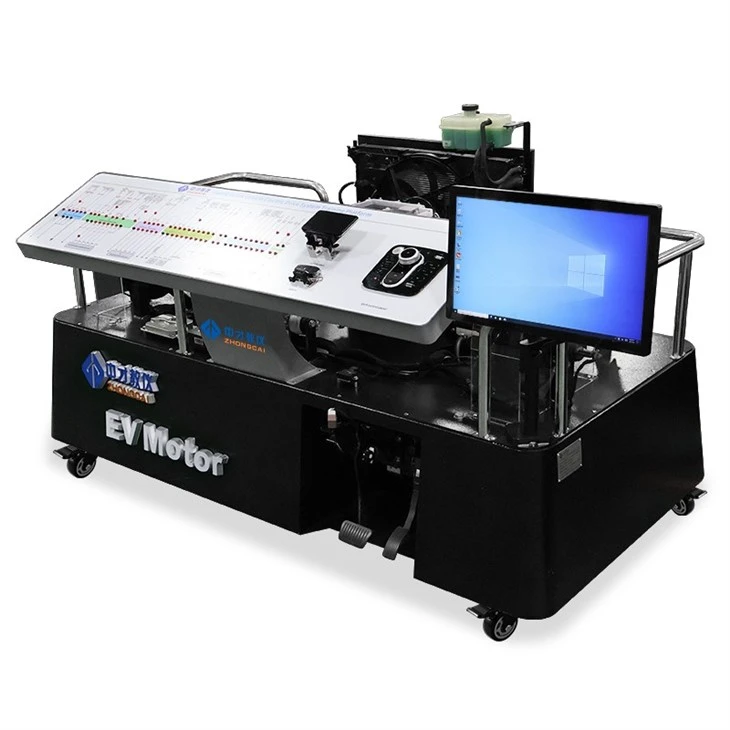

2.3 Electric Drive System Training Bench

This training bench consists of a drive motor, motor controller, and cooling system. It supports high-voltage and low-voltage circuit testing, as well as data stream reading, helping students understand electric drive operation, motor control, and thermal management.

The module is suitable for practical instruction in electric motor systems, electronic control, circuit measurement, and new energy vehicle fault diagnosis.

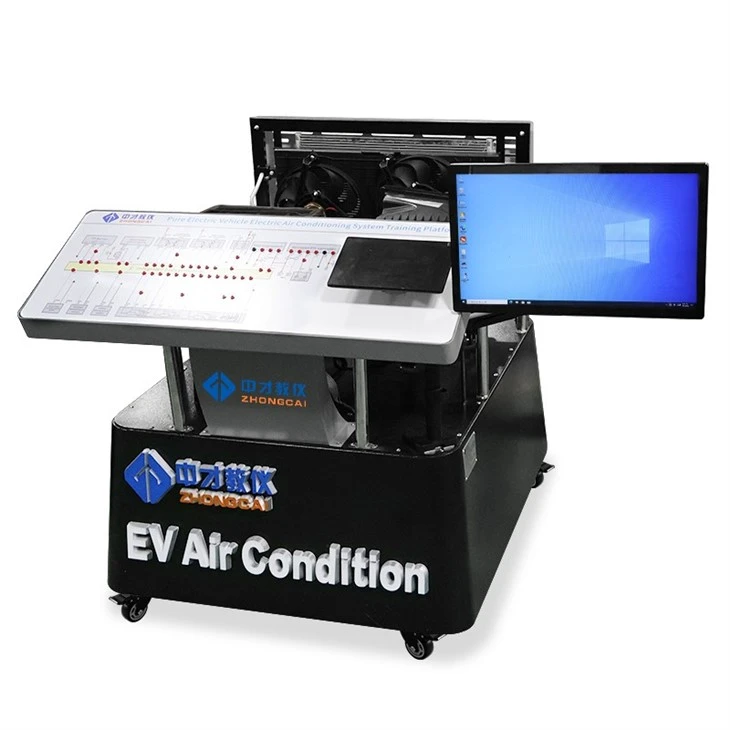

2.4 Air Conditioning System Training Bench

This module includes an electric compressor, PTC heater, and associated components to demonstrate the cooling and heating processes of an electric vehicle air conditioning system.

Students can study the operating principles of electric air conditioning, cabin heating, and thermal control. The module supports system-level teaching and practical analysis of electric vehicle comfort and thermal management systems.

2.5 Steering System Training Bench

Dimensions: Approximately 2000 × 1500 × 1700 mm

This module uses an original vehicle electric steering system to demonstrate how the level of power assistance changes with vehicle speed. It helps students understand electric power steering structure, control principles, and operating characteristics.

The training bench supports practical learning in steering system operation, electronic control, and automotive chassis technology.

2.6 Body Electrical System Training Bench

Dimensions: Approximately 4700 × 1500 × 1700 mm

This module consists of a cutaway vehicle body equipped with lighting, door, window, and other electrical systems. It provides a practical environment for studying body electrical structures, component locations, circuit connections, and system operation.

The module complements the other training benches by connecting individual electrical components with the broader vehicle electrical architecture.

3. Common Configurations and Training Functions

3.1 Multiple Parallel Testing Stations

The system includes at least four parallel testing stations, allowing multiple students to perform signal parameter measurements simultaneously. Testing can be conducted without disassembling the original vehicle wiring harness, supporting efficient practical instruction and circuit analysis.

For OEM Automotive Training Equipment projects, the testing station configuration can serve as a reference for discussing laboratory layout, student capacity, and practical training requirements.

3.2 Multimedia Teaching and Intelligent Assessment

The system is equipped with a 43-inch HD display and an intelligent fault-insertion and assessment system. Instructors can introduce simulated faults for students to identify, analyze, and resolve, helping evaluate their understanding of vehicle systems and diagnostic procedures.

These functions support classroom demonstrations, hands-on exercises, and practical skills assessments.

3.3 Interconnected Training Benches

The individual training benches are interconnected to demonstrate the operating relationships among major electric vehicle systems. Students can study individual modules while also understanding the overall workflow of the vehicle's electrical, charging, battery, drive, air conditioning, steering, and body systems.

This integrated architecture makes the platform suitable for OEM Automotive Training Equipment projects requiring coordinated multi-system instruction and practical assessment.

4. Technical Specifications

Note: Dimensions are approximate and apply to the specified modules. The electric drive and air conditioning module dimensions were not provided in the original specifications.

5. OEM Customization and Application

This OEM Automotive Training Equipment platform is intended for educational institutions and training projects that require integrated electric vehicle teaching solutions. Depending on confirmed project requirements, OEM discussions may cover training module configuration, equipment layout, teaching objectives, interface requirements, and project-specific documentation.

The integrated system is suitable for automotive vocational colleges, technical schools, university laboratories, new energy vehicle training centers, and automotive skills assessment facilities.

By combining battery management, high-voltage charging, electric drive, air conditioning, steering, and body electrical training, this OEM Automotive Training Equipment solution provides a structured platform for practical electric vehicle education and system-level technical training.
