Wiper System

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of wiper system in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Wiper System

Product Introduction

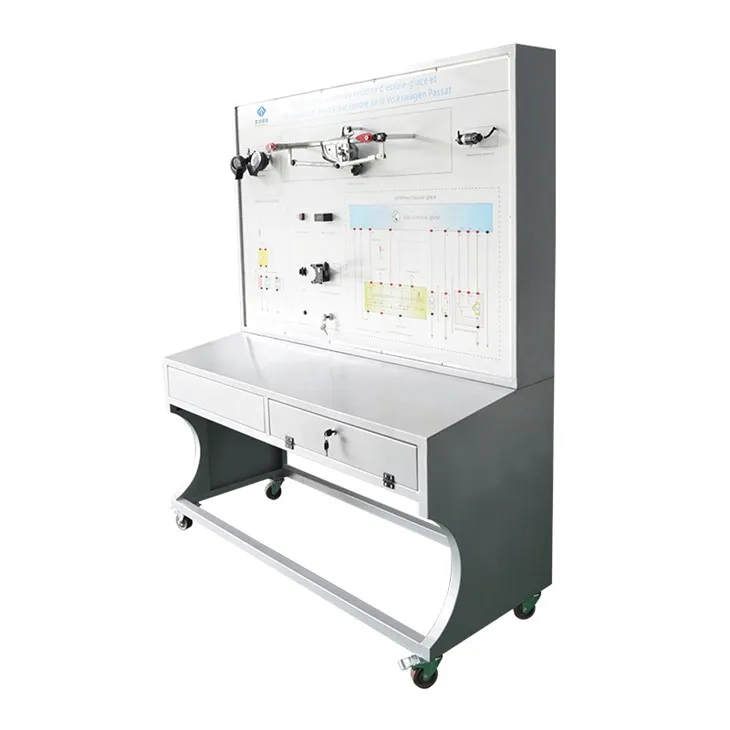

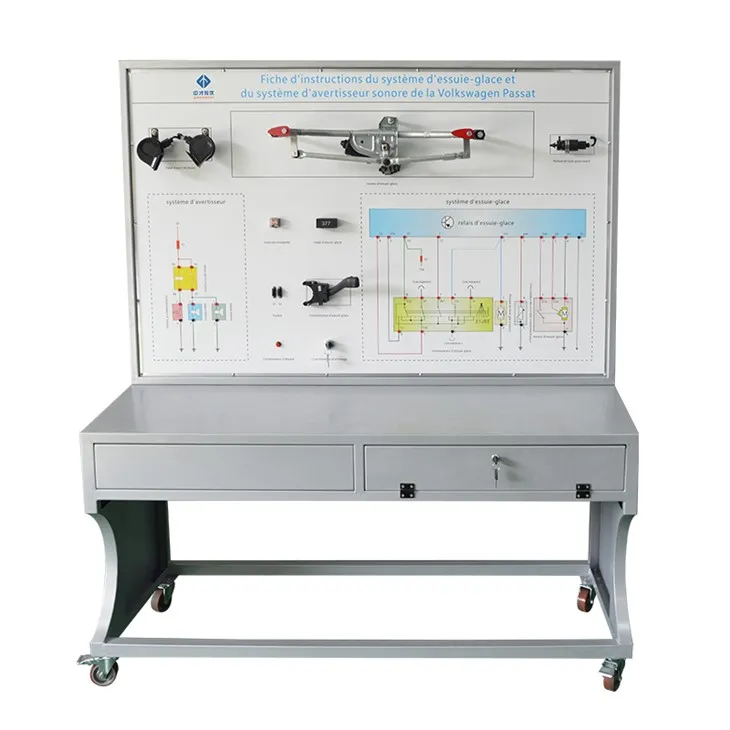

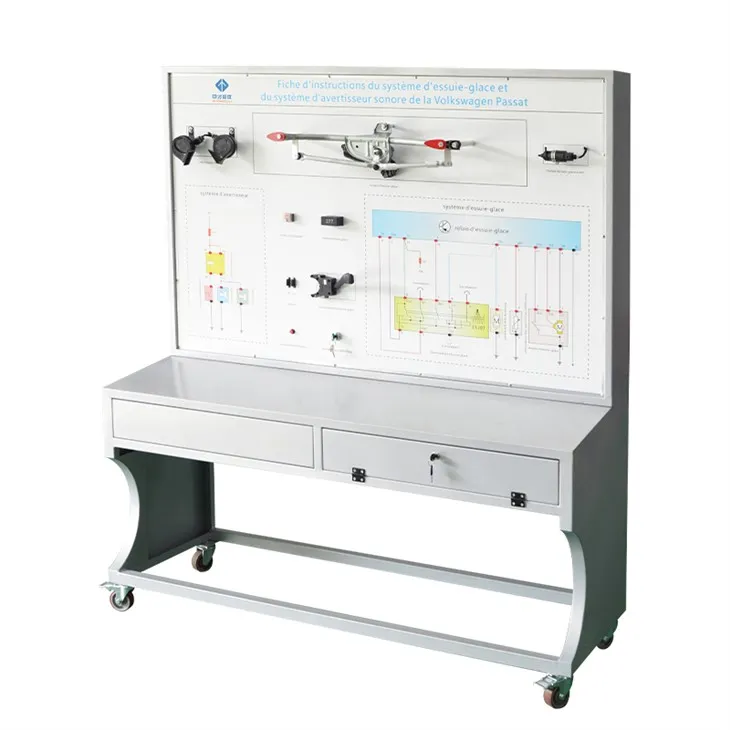

This training system is designed around a real car wiper system, offering a clear demonstration of its structure and functionality. By incorporating control switches, actuators, and visual aids, the system allows users to understand the working principles of a car's wiper system. It supports practical exercises such as fault diagnosis, performance tests, and data analysis, making it an excellent tool for educational purposes.

Functional Features

The training setup includes a fully operational wiper system, showcasing its complete assembly and how its components interact during operation.

Key components, such as the wiper motor assembly, linkage mechanism, cleaning pump motor, relay, and control switch, are integrated for comprehensive teaching and hands-on practice.

The color-coded circuit diagram on the panel helps users easily identify system connections, while built-in detection terminals allow measurements of signals like resistance, voltage, current, and frequency.

Materials and Build

The panel is crafted from 8mm thick high-strength acrylic, offering durability against temperature fluctuations, moisture, and wear. Its long-lasting colors and corrosion resistance make it ideal for extended use.

The frame is constructed with international standard aluminum alloy profiles, which are lightweight yet strong. These materials not only ensure durability but also provide an environmentally friendly and sleek design.

Equipped with self-locking casters, the system is mobile and stable. Its base includes drawers for storing teaching supplies, ensuring convenience in everyday use.

Teaching Content

Familiarization with the configuration and structure of the wiper system.

Understanding the control principles of the system.

Learning the basic knowledge and components of the system.

Mastering the system's working process and being able to explain its key elements independently.

Technical Parameters

Dimensions: 1600×700×1800mm (L×W×H)

Input Power: AC 220V ±10% 50Hz

Operating Power: DC 12V
