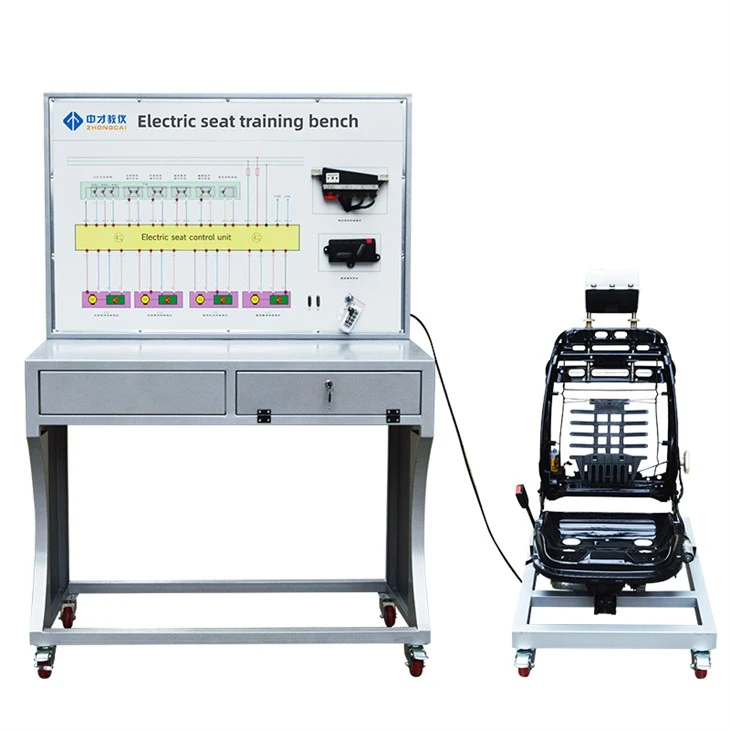

Automotive Chair System Trainer Board Panel
Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive chair system trainer board panel in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.
Key Features
·Live simulation of seat movements: sliding, tilt adjustment, vertical lift, and memory recall function.
·Open seat structure for clear visibility of motors and mechanisms.
·Aviation connectors for signal detection and real-time voltage/current monitoring.
·4mm aluminum composite panel with color wiring diagram, durable and intuitive.
·Testing terminals for multiple signal measurements (resistance, voltage, current, frequency).
·Automotive-grade wiring, fuses, and relays for safety and durability.
·Remote fault simulation (10m range) to strengthen diagnostic practice.
·Stable steel frame with self-locking casters, compact and mobile.
·Operates on AC 220V, internally converted to DC 12V with short-circuit protection.
·Supplied with manuals, training videos, and consumables for classroom use.
Technical Specifications
| Item | Specification |
|---|---|
| Panel Dimensions | 1200 × 600 × 1700 mm |
| Seat Dimensions | As per original vehicle |
| Input Power | AC 220V ±10%, 50Hz |
| Operating Voltage | DC 12V |
| Working Temp. | -40℃ ~ +50℃ |
| Frame | 60 × 40 × 3 mm steel tubing |
| Cabinet | 1.5mm cold-rolled sheet |
| Casters | 100 × 50 mm, lockable |
Training Objectives
| Objective No. | Learning Goal |
|---|---|
| 1 | Understand electric seat structure and working principle |
| 2 | Measure and analyze voltage/current signals |
| 3 | Diagnose and repair electric seat malfunctions |
| 4 | Enhance hands-on skills with automotive electrical training aids |
This product is a valuable automotive basic electric circuit trainer, bridging theory and practice in automotive electrical education.
