Automobile Educational Apparatus Charging System Electrical Training Boards

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automobile educational apparatus charging system electrical training boards in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

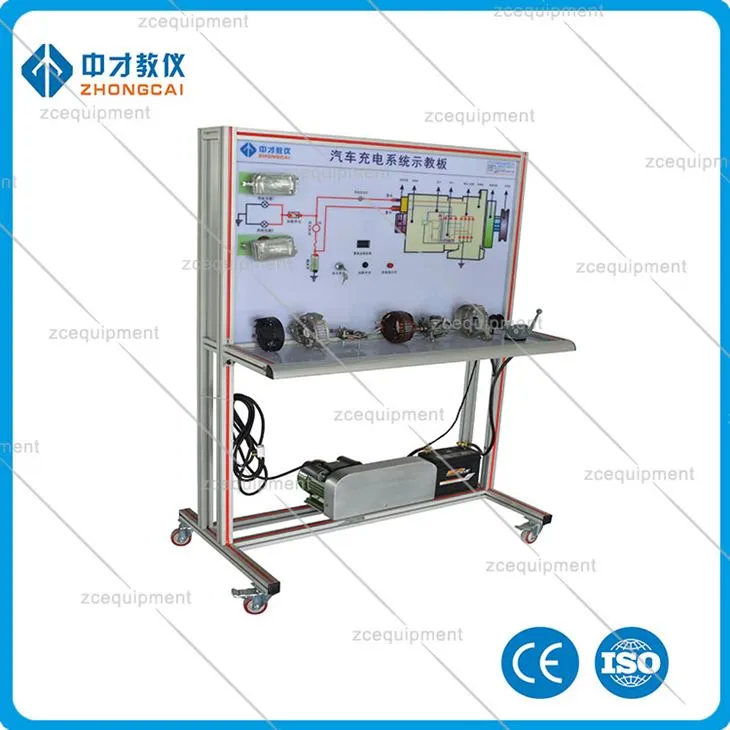

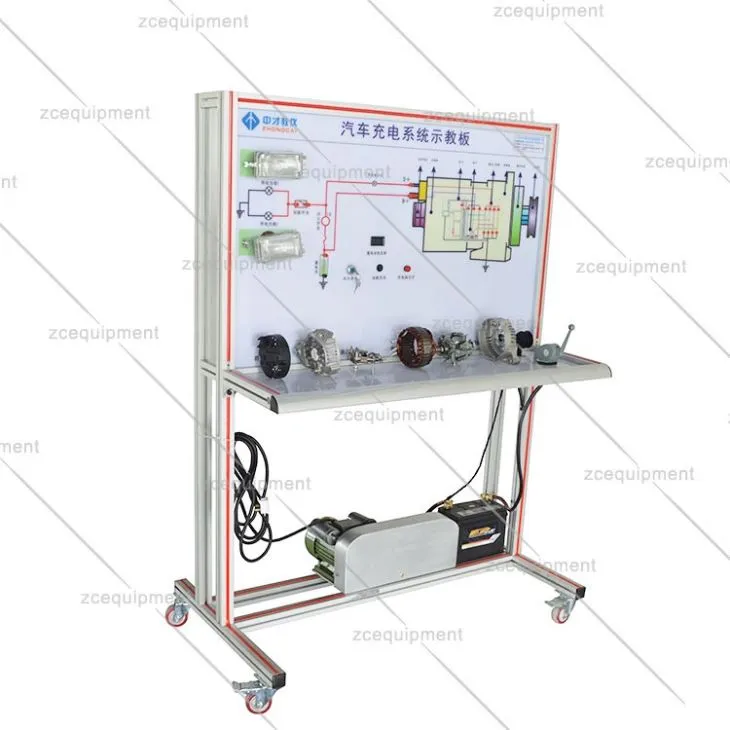

Automobile educational apparatus charging system electrical training boards

Main configuration

Generator assembly, three-phase drive motor, broken parts of generator, battery, ignition switch, voltmeter, movable bench, bench power main switch, universal caster with lock, etc.

Product features

1. The measuring panel of the training platform is painted with color inkjet circuit diagram, which is made of 8mm thick high-strength acrylic plate, which is resistant to large temperature difference, wear-resisting, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright color, not easy to fade and so on.

2. Test terminals are installed on the panel of the training platform, and the electrical signals of each sensor, actuator and transmission control unit pin, such as resistance, voltage, current and frequency signals, can be directly detected on the panel.

3, the training platform is made of international standard aluminum alloy profiles, with light quality, high strength, corrosion resistance, long life and other characteristics, no need to go through the spraying process, more environmental protection, more beautiful and high-grade appearance, the platform with self-locking caster device, flexible movement, safe, reliable, durable.

Technical parameters

1. Overall size: 1200×800×1800mm(length × width × height)

2. Power supply: three-phase four-wire (three-phase five-wire 380V±10% 50Hz)

3. Working power supply;Dc 12 v
