Electric Vehicle Battery BMS Management And AC DC Charging Training Platform

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of electric vehicle battery bms management and ac dc charging training platform in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Overview – Automotive Training Equipment Electric Vehicle Battery BMS Management and AC DC Charging Training Platform

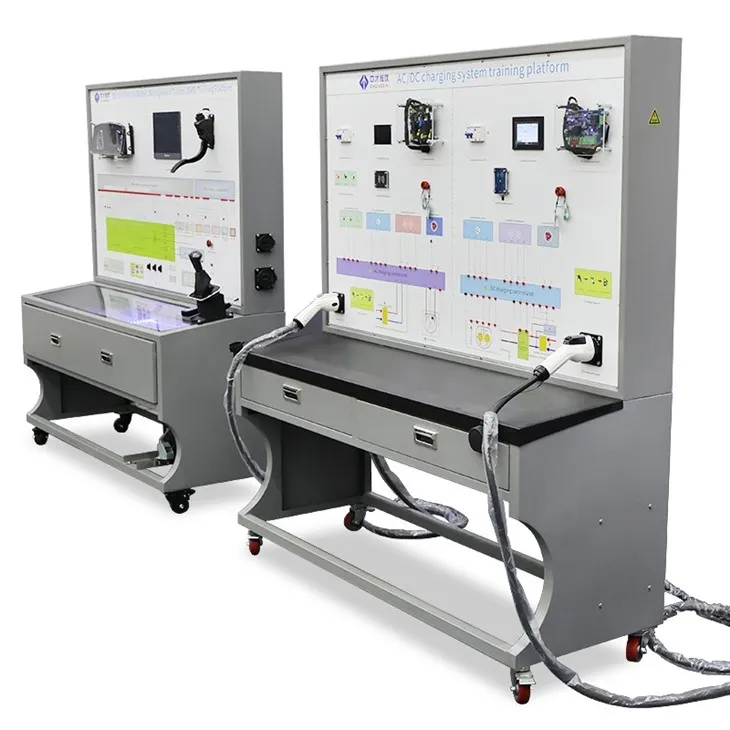

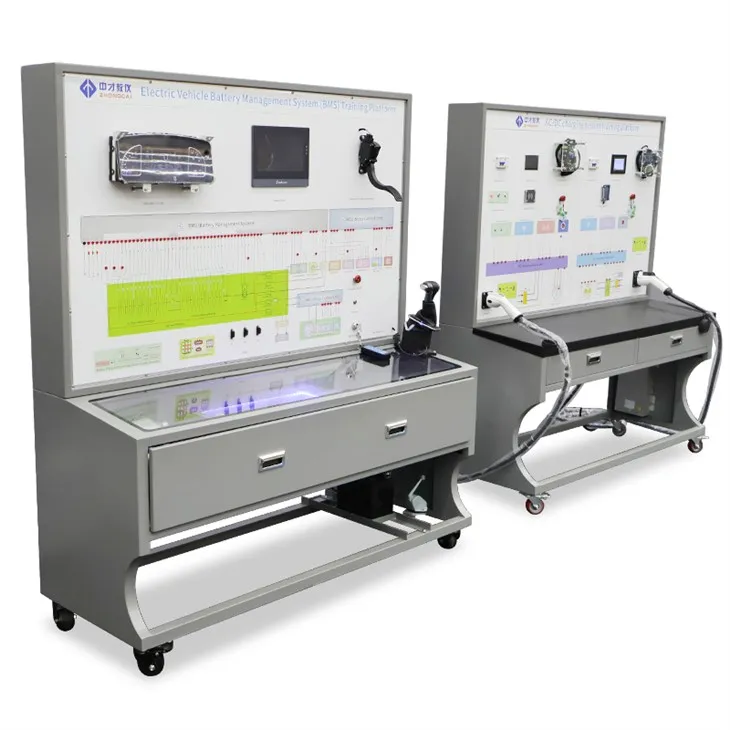

The Automotive Training Equipment Electric Vehicle Battery BMS Management and AC DC Charging Training Platform is a comprehensive teaching system designed for technical education and vocational training. It integrates battery management system operation, lithium battery structure, and AC/DC charging technology into one complete platform.

This automotive training equipment enables students to understand the full workflow of electric vehicle battery management, from battery grouping and assembly to charging control and system diagnosis. It is widely used in technical colleges, training centers, and automotive education laboratories.

Product Functions – Automotive Training Equipment EV Battery BMS Training Platform

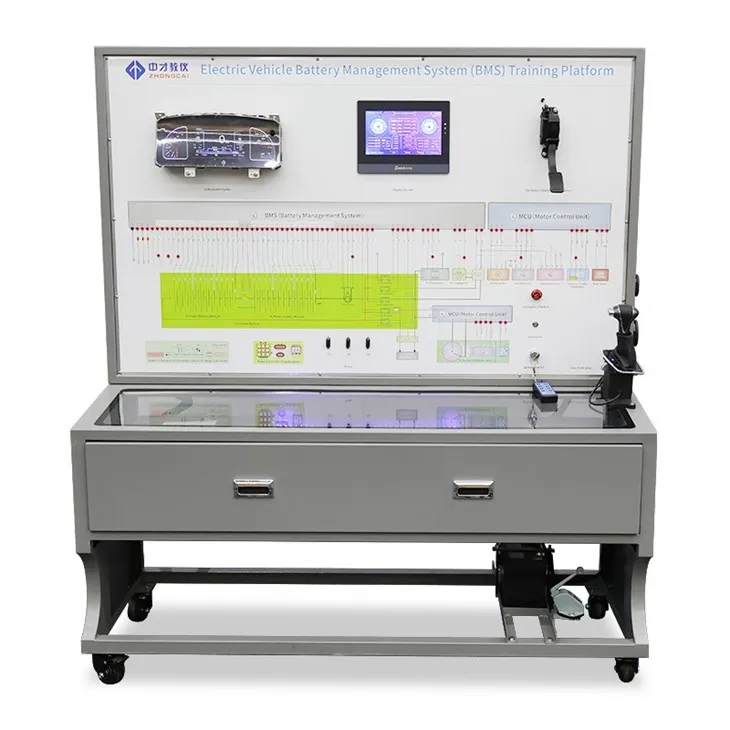

Integrated Battery Management And Charging Training System

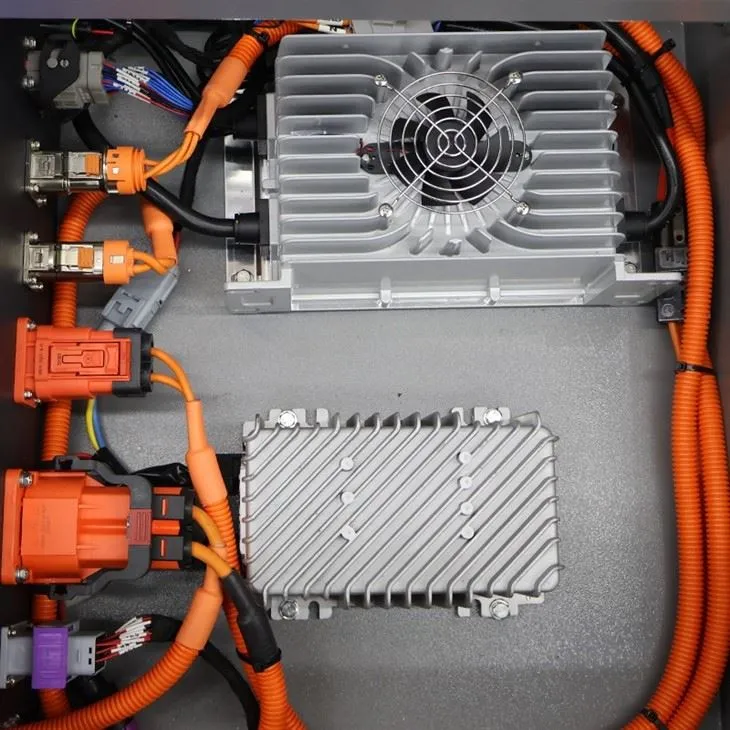

This automotive training equipment combines lithium iron phosphate battery modules, BMS master and slave controllers, DC-DC converter, onboard charger, and AC/DC charging interfaces.
Students can perform battery sorting, module assembly, system testing, and charging operation training, clearly understanding EV battery management and charging principles.

Real Time Monitoring And Data Analysis Capability

The platform supports real-time monitoring of voltage, current, temperature, and SOC via CAN communication and touch screen display.
Learners can observe cell voltage differences, temperature variation, and charging current changes, improving their understanding of battery safety and diagnostics in automotive training equipment applications.

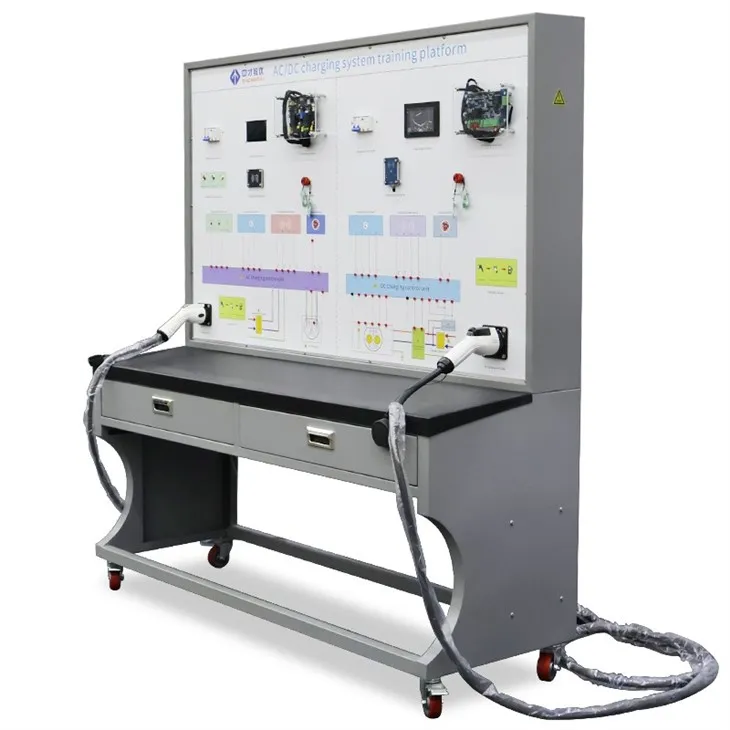

Comprehensive AC And DC Charging Demonstration

Equipped with AC and DC charging modules, charging gun interfaces, and charging control units, the system simulates both slow and fast charging processes.
This automotive training equipment clearly demonstrates charging structure, communication logic, and power flow control.

Intelligent Fault Setting And Diagnostic Training

Built-in wireless fault setting system supports multiple fault types such as open circuit, short circuit, and poor contact.
Teachers can set training or assessment modes, while students use measuring tools and data streams for troubleshooting, enhancing diagnostic skills through automotive training equipment.

Technical Parameters – Automotive Training Equipment EV Charging Training System

Battery Type: Lithium Iron Phosphate Battery Pack

BMS System: Master And Slave Control Units

Communication Method: CAN Bus Communication

Display System: Touch Screen Monitoring Interface

Charging Type: AC Slow Charging And DC Fast Charging

Key Components: DC DC Converter, Onboard Charger, Charging Control Unit

Fault System: Wireless Fault Setting With Multiple Fault Points

Structure: Industrial Steel Frame With Acrylic Panel

Power Supply: AC 220V / 50Hz

Our Unique Advantages – Automotive Training Equipment Supplier

Free Diagnostic Tools Included

We provide professional detection tools together with the automotive training equipment, allowing students to perform real measurement and troubleshooting without additional purchase.

Complete Teaching Course Support

Full set of training materials, teaching manuals, and course content are provided, helping teachers quickly carry out lessons using this automotive training equipment.

Factory Direct Supply With Stable Quality

All automotive training equipment is manufactured with industrial-grade materials, ensuring durability, safety, and long service life.

Customizable Training Solutions

We support customization based on teaching requirements, including system configuration, language, and training functions for different education levels.
