Electric Vehicle Motor Control System Training Platform

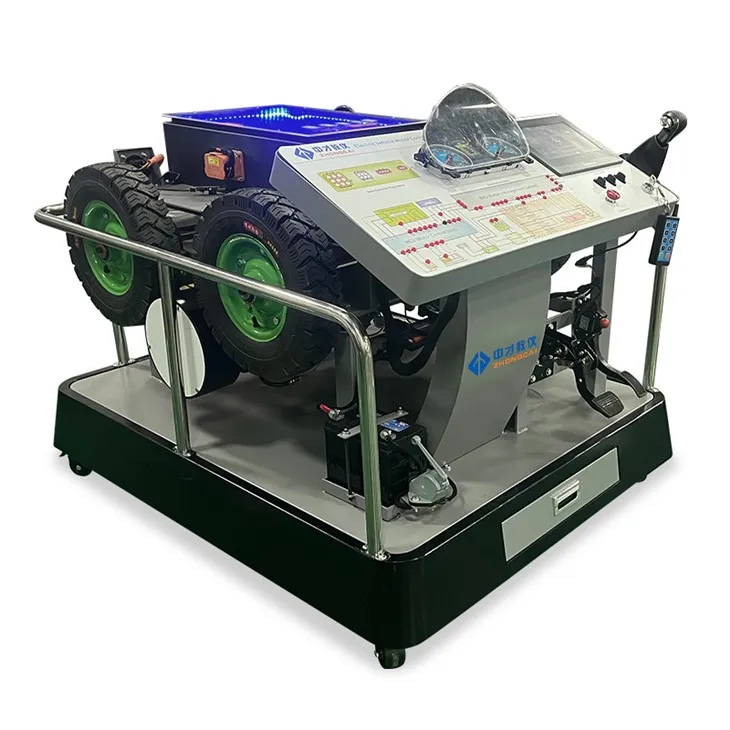

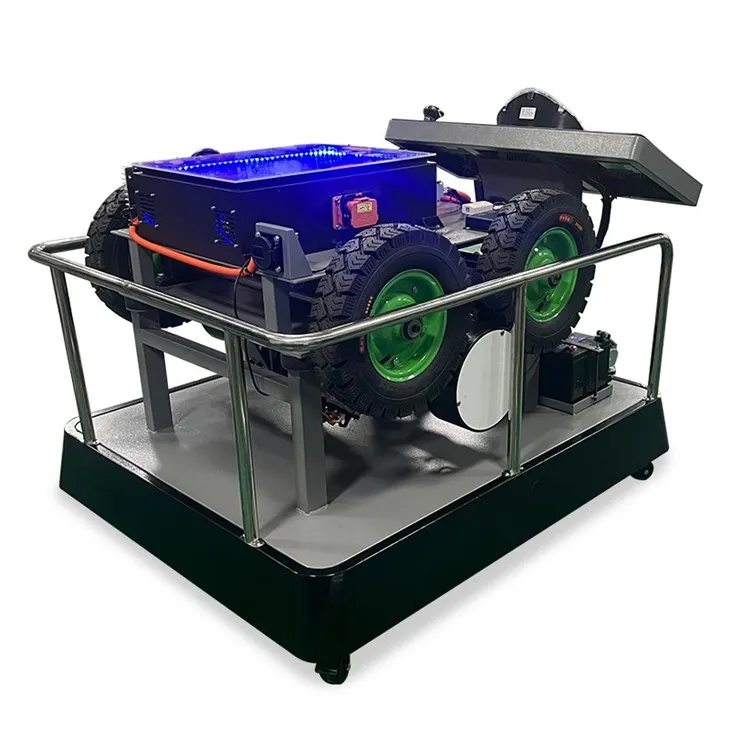

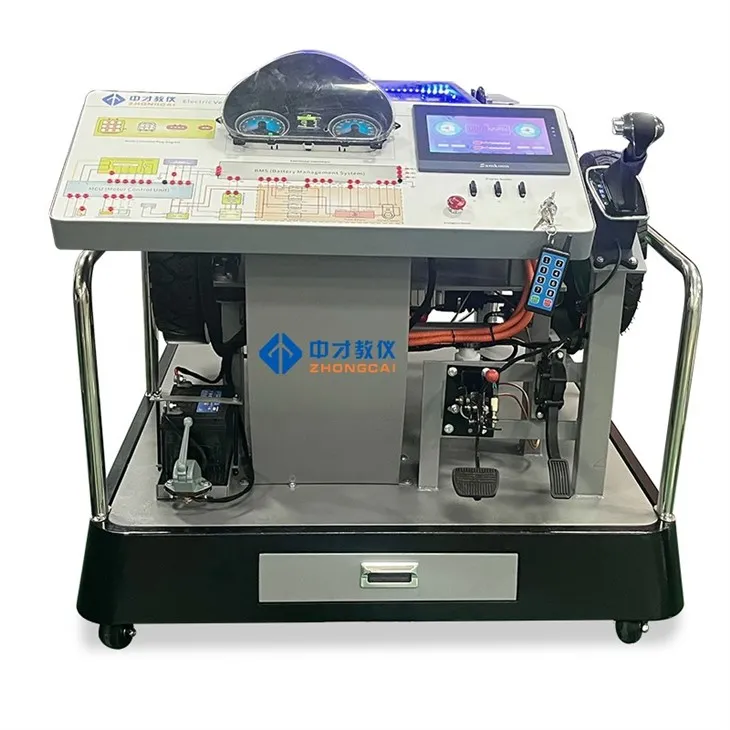

The Electric Vehicle Motor Control System Training Platform is a modern automotive training equipment designed for vocational schools, colleges, training centers, and technical institutes. It provides a complete hands-on solution for learning the structure, operation, diagnostics, and maintenance of electric vehicle motor drive systems.

Built with real vehicle components, this EV training platform allows students to understand the relationship between the motor controller, drive motor, accelerator pedal, brake system, instrument cluster, and CAN communication network. It is an ideal new energy vehicle teaching equipment for practical classroom learning.

Product Introduction

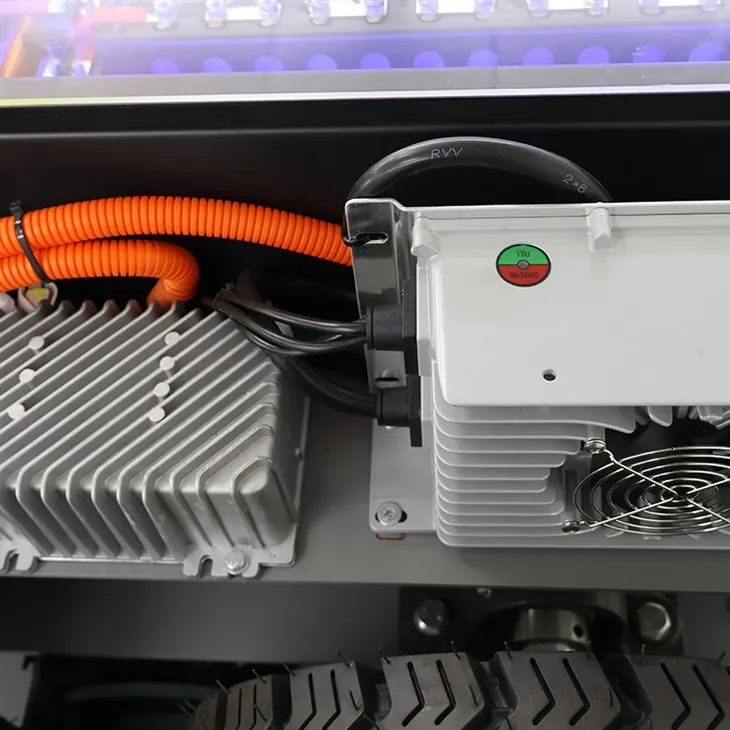

This electric vehicle training equipment uses the real operating characteristics of an AC drive motor and motor controller system. Students can clearly observe how electrical energy is converted into mechanical drive power, while learning the working principles of the EV powertrain system.

By operating the accelerator pedal, brake pedal, and gear selector, trainees can simulate real driving conditions such as acceleration, deceleration, reversing, and normal driving. This makes the equipment highly suitable for automotive technical education, EV maintenance training, and motor controller diagnostics training.

Main Product Features

1. Real Vehicle Control Experience

The platform is equipped with an original-style gear selector lever with R / N / D positions, providing realistic operation just like an actual electric vehicle. Brake pedal interlock logic ensures safe and accurate shifting procedures.

2. Intelligent CAN Bus Communication

All components communicate through CAN2.0 system, including motor controller, BMS, instrument cluster, and gear selector. This helps students master CAN bus troubleshooting skills widely used in electric vehicles.

3. Real-Time Dashboard Monitoring

The automotive instrument cluster displays:

Vehicle speed

Motor RPM

Battery voltage

Current data

SOC battery status

Mileage

Perfect for electric vehicle diagnostics training and data analysis learning.

4. Dynamic Driving Simulation

Students can perform:

Low-speed driving simulation

High-speed driving simulation

Reverse driving test

Acceleration test

Deceleration test

Parking operation

This makes it one of the most practical EV motor training systems on the market.

5. Intelligent Protection System

The controller includes:

Over-temperature protection

Over-current protection

Reverse polarity protection

Soft start protection

Automatic torque control

Ensuring safe long-term use in training environments.

6. Durable Industrial Structure

The platform adopts high-strength ABS molded panels and aluminum profile frame construction, offering excellent durability, corrosion resistance, and easy maintenance.

Technical Parameters

Practical Training Projects

This automotive teaching equipment supports multiple training tasks:

Motor acceleration testing

Brake deceleration testing

Hydraulic braking experiments

Forward / reverse motor rotation

Normal speed driving simulation

High-speed driving simulation

Low-speed driving simulation

Motor structure recognition

Controller structure learning

Working principle analysis

CAN communication diagnosis

Fault detection and repair training

Exclusive Advantages We Provide

Free Diagnostic Tools Included

Unlike many competitors, we provide free testing tools for electrical measurement, signal diagnosis, and maintenance practice.

Free Professional Training Courseware

We also supply complete training manuals, wiring diagrams, lesson plans, and troubleshooting courses, helping teachers start classes immediately.

OEM / Customization Service

We can customize logo, voltage, language, software content, and training modules according to your market needs.

Factory Direct Supply

As a professional manufacturer of automotive training equipment, we provide stable quality, competitive pricing, and after-sales support.

Why Choose Us?

✔ 10+ years manufacturing experience
✔ CE standard production
✔ Exported to many countries
✔ Strong technical support
✔ Fast delivery
✔ Free teaching resources
