New Energy Vehicle Trainer

Pure electric vehicle training system is based on BAIC eu260 new energy vehicle. In addition, it is equipped with six detection boards, which can detect the working status of sensors and actuators of each system in real time. This product can intuitively understand the system composition of pure electric vehicle. Compared with other types of training platform, it is closer to the real vehicle environment and easier to teach than the real vehicle.

Send Inquiry

Product Introduction

Equipment:

Car anatomical model

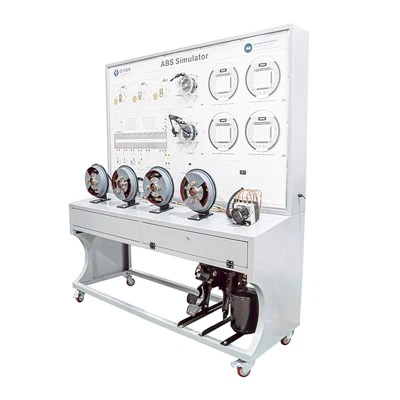

EPS and ABS system

Air conditioning system

BMS and drive system

Car audio and data acquisition system

Lighting and instrumentation system

Power mirror, power window & central locking system

Features:

1. Based on the Beiqi EU260 pure electric vehicle, the cover parts of the original car except the load-bearing structural parts are completely dissected and removed. The original one-to-one skeleton is made of steel bars, and the relative position of the original car parts is unchanged. And keep all the functions of the original car, you can drive on the ground.

2. The vehicle circuit detection port is installed, and each detection port has a corresponding connection connection for the detection platform, which can be used for the battery management system, the charging system, the driving system, the air conditioning system, the steering system, the ABS system, the lighting system, the wiper system, and the like. Signal Detection

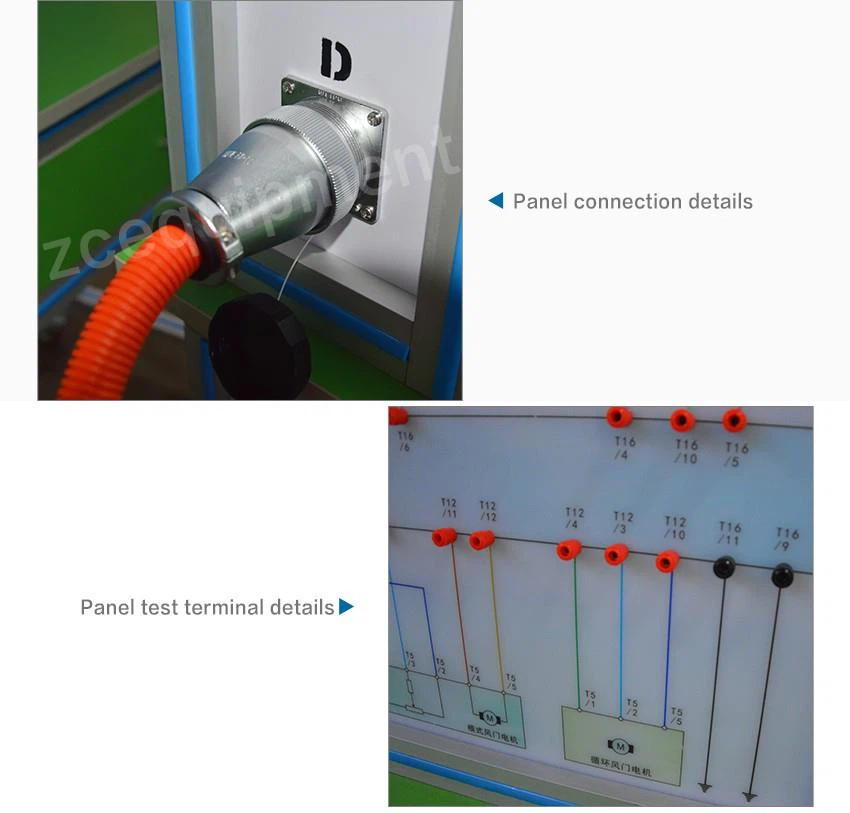

3. The test panel is printed with a complete circuit schematic and is equipped with a test terminal. Use a multimeter and oscilloscope to detect each sensor and actuator resistance, voltage, frequency, waveform, and more.

4. Equipped with six online detection boards, connected with dedicated connection cables, various parameters can be tested on each system of the vehicle.

5. Installed with a water lamp to indicate the direction of energy flow, fast charging state, slow charging state, discharge state, etc., respectively, with different colors, different speeds of light identification, the image is clear.

Parameter:

1.Vehicle size: length * width * height (about 4700 * 1800 * 1600mm)

2.The size of the test board: length * width * height (about 1200 * 800 * 1800mm)

3.working power: 12VDC

Our service:

1.We are a company integrating R&D, production and sales, specializing in the production of automotive training equipment, automotive electronic test chambers, auto maintenance tools, etc.

2.We accept OEM/ODM production and can design your car lab solution for free.

3.Production, sales, shipping, one step in place, saving your time, convenient for your order.

4.Pre-sale, in-sales and after-sales are fixed personnel handling, giving you quality service, no need to communicate multiple times.
