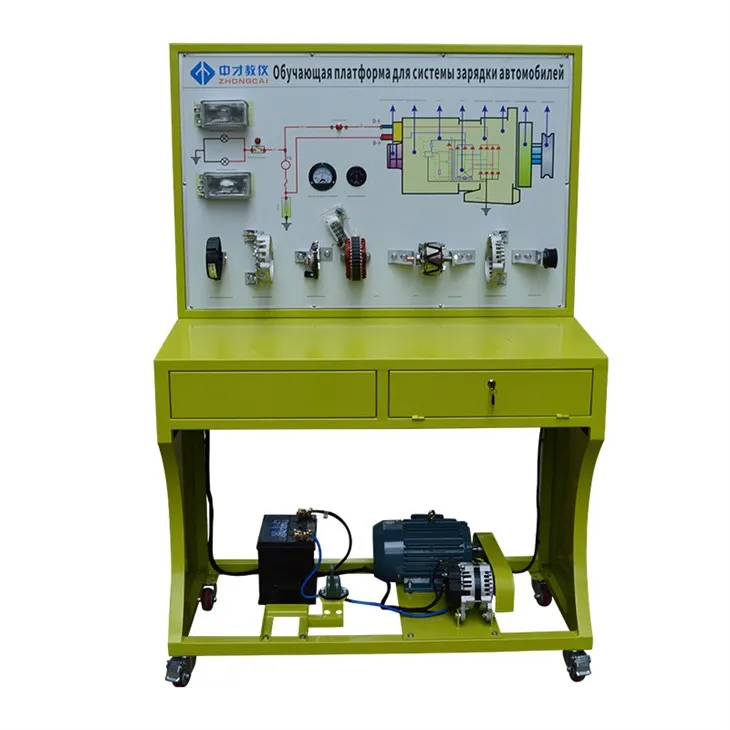

Automotive Automatic Charging System Teaching Board

• Place of Origin:Guangdong, China

• Brand Name:Zhongcai

• Model Number:ZC-QCC003

• Product Name:Demonstration Board For Car Charging System

• Function:training

• Material:acrylic

• Application:school or traning centre

• Size:1500*1000*1800mm

• Certificate:ISO

• Packing:wooden

• MOQ:1set

• power:DC 60V/12V

• Color:White

• Supply Ability
• 500 Set/Sets per Month

• Packaging Details
• Wooden

• Port
• NANSHA,GUANGZHOU

• Lead Time:

• Quantity(sets)	1 - 1	>1
  Est. Time(days)	15	To be negotiated

Product Requirement

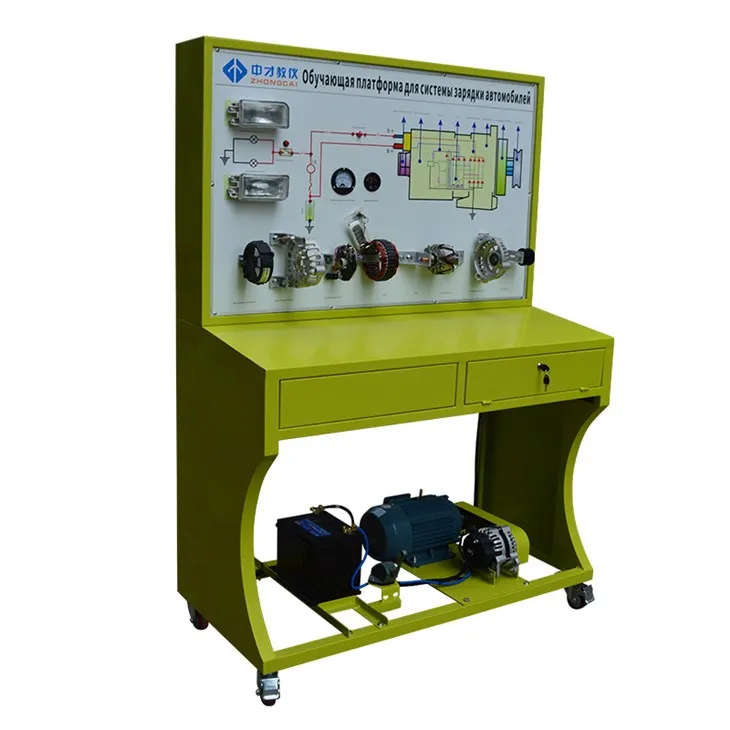

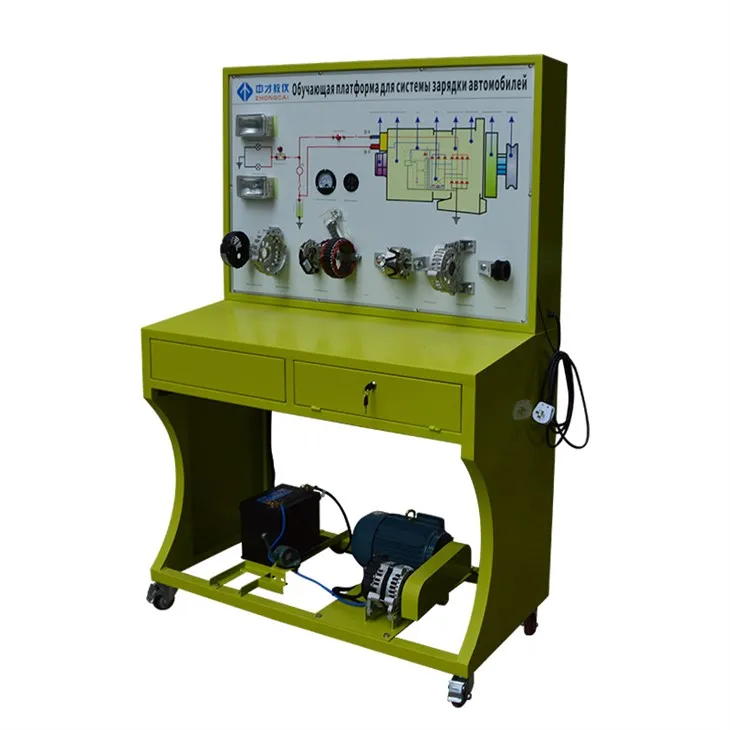

The equipment is based on the physical object of the Volkswagen Jetta car charging system, fully demonstrating the composition structure and working process of the car charging system.

Functional Requirements

1. A real and operational charging system, which fully demonstrates the composition and structure of the car charging system.

2. Turn on the ignition switch, trigger the operation of the three-phase motor, drive the generator to work, the charging indicator light is off, and the battery terminal voltage rises, which truly demonstrates the working process of the car charging system. The value of charging current and battery voltage can be observed through the ammeter and voltmeter on the panel.

3. The measurement panel of the training platform is painted with a color inkjet circuit diagram, which is made of a high-strength transparent acrylic sheet with a thickness of 5mm and is printed on the back. It is resistant to large temperature differences, wear-resistant, moisture-proof, corrosion-resistant, not easy to deform, and has a long service life. Bright colors, not easy to fade, etc.; students can intuitively compare the circuit diagram and the real object to understand and analyze the working principle of the car charging system.

4. Decomposed parts of the generator assembly are installed on the teaching board panel, which can intuitively understand the composition and structure of the generator.

5. There are detection terminals installed on the panel of the teaching board, which can directly detect the electrical signals of various circuit components of the car charging system, such as resistance, voltage, current, frequency signals, etc., on the panel.

6. The training platform is built with international standard aluminum alloy profiles. It has the characteristics of light weight, high strength, corrosion resistance, and long life. It does not need to go through the spraying process, is more environmentally friendly, and has a more beautiful and high-end appearance. The bench has self-locking casters. The device is flexible to move, safe, reliable, sturdy and durable.

FAQ

Q1:Are you a trading company or manufacturer?

We are a manufacturer, our equipment is superior in quality and reasonable inprice.

Q2:May we visit your factory?

Yes, welcome to our factory, our factory is in China Guangzhou City, it is nearthe Guangzhou Baiyun airport, very convenient to comehere. Q3:How to ensure the quality?

Our technicians are experts in this industry.Each assembly part has a controllerto ensure stable operation of the equipment.

Q4:What is the warranty period and the delivery period?

Warranty period:12 months Delivery period: Usually 30 days

Q5:What is you terms of payment?

50% in advance, balance before shipment, we accept T/T, Cash or Trade Assuranceby
