Automotive Diesel Engine Training Equipment
Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of Automotive Diesel Engine Training Equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.
Product Introduction

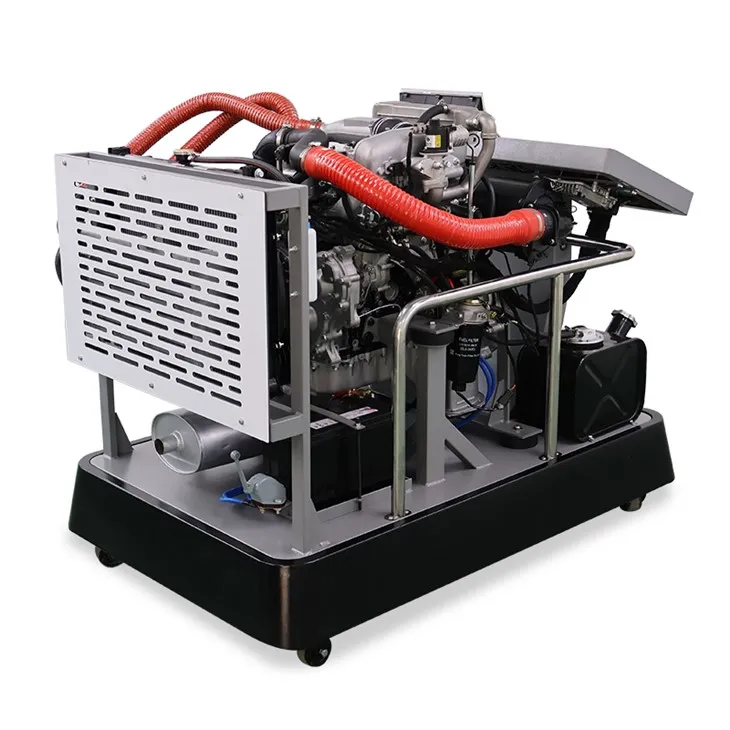

This training platform is based on a diesel engine. The engine is operational, allowing for real-world operation of starting, acceleration, deceleration, fault detection and diagnosis, fault simulation and troubleshooting, etc., realistically demonstrating the structure, principles, and working process of an automotive electronic fuel injection engine. It is suitable for the practical training needs of various types of colleges and training institutions for automotive engine theory and maintenance.
This training platform boasts comprehensive training functions, convenient operation, safety, reliability, and an aesthetically pleasing design.

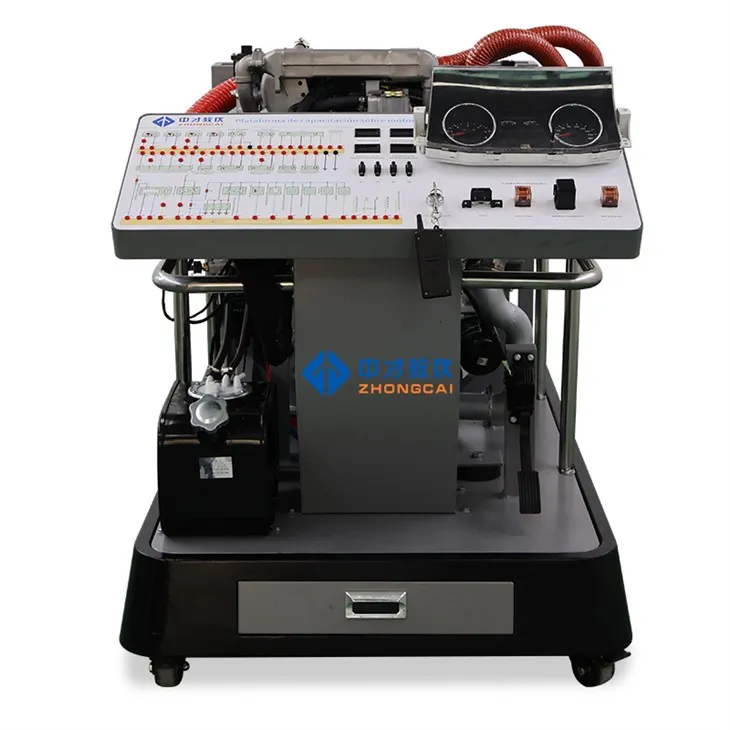

Structural Composition: Diesel powertrain, original vehicle engine control computer, instrument cluster, electronic throttle, all original vehicle accessories related to engine starting and operation, fault setting and troubleshooting system, original vehicle circuit diagram board and test terminals, 90AH high-capacity battery, high-capacity stainless steel fuel tank, engine acceleration mechanism, control panel cabinet, movable test bench, test bench main power switch, anti-theft box, diagnostic connector, cooling system, test bench operation manual.
Digital displays are installed on all sensors and actuators; lockable swivel casters are provided; stainless steel hand guards are provided; protective devices are added to high-temperature and rotating parts of the test bench.
Functional Features:
1. Normal engine operation, electronic throttle acceleration mechanism.
2. Fault simulation system can simulate actual operating conditions, setting 15 common faults of real vehicle engines.
3. Voltage meter displays changes in sensors and actuators in real time; LED lights indicate the working status of various actuators such as fuel injector pulses.
4. Pointer-type vacuum gauge indicates vacuum pressure value.
5. Equipped with the original vehicle diagnostic connector, allowing the use of a computer diagnostic tool to read fault codes and data streams from the engine electronic control system.
Technical Parameters
| Item | Specification |
|---|---|
| Product Name | Automotive Diesel Engine Training Equipment |
| Training Type | Engine Operation and Diagnostic Training |
| Engine Type | Electronic Control Diesel Engine |
| Function | Starting, Acceleration, Fault Diagnosis and Troubleshooting |
| Power Supply | 12V / 60AH Battery |
| Fuel Tank Capacity | 10L |
| Overall Dimension | 1500 × 1200 × 1150 mm |
| Working Temperature | -50℃ ～ +50℃ |
| Display Mode | Digital Display and LED Indicators |
| Diagnostic Function | Fault Code and Data Stream Detection |
| Frame Structure | Industrial Steel Welding Structure |
Product Advantages
| Advantage | Description |
|---|---|
| Real Running Engine | Supports actual engine operation and demonstration |
| Complete Electronic Control System | Integrated ECU, sensors and actuators |
| Fault Simulation Function | Supports multiple common fault settings |
| Real-time Signal Display | Digital meters and LED indicators improve teaching efficiency |
| Practical Diagnostic Training | Supports fault detection and data analysis |
| Durable Structure | Industrial steel frame with long service life |
| Safety Design | Equipped with multiple safety protection devices |
| Convenient Mobility | Universal self-locking caster wheel design |
