ABS Braking System Trainer

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of abs braking system trainer in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

1. Product overview

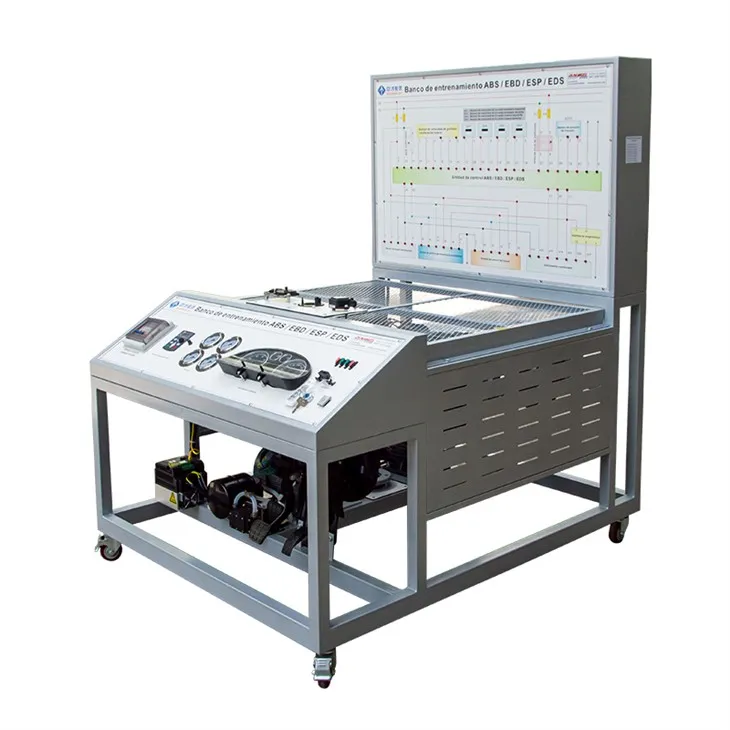

The ABS Braking System Trainer is based on Volkswagen's ABS braking system and is equipped with a working principle diagram of the ABS system, which truly shows the working process of the ABS system during emergency braking.

2. Features

1. Based on the actual car ABS brake system, the composition structure of the ABS brake system is fully displayed.

2. The front and rear axles are driven by the three-phase asynchronous motor to simulate the driving of a car. When the brake pedal is urgently stepped on, the ABS system starts to work. The front and rear brake discs keep rotating slightly, and the brake pedal can feel continuous rebound, which truly demonstrates the working process of the automobile ABS system.

3. The measurement panel of the training platform is painted with a color inkjet circuit diagram, which is made of 4mm thick high-strength aluminum-plastic board UV inkjet. It has large temperature difference, wear resistance, moisture resistance, corrosion resistance, non-deformation, long service life, and color Bright, not easy to fade and other characteristics; students can intuitively compare the circuit diagram and the actual ABS brake system to understand and analyze the working principle of the control system.

4. There are detection terminals installed on the panel of the training platform, which can directly detect the electrical signals of each sensor and control unit pins, such as resistance, voltage, current, frequency signals, etc. on the panel.

5. The training platform is equipped with 6 pressure gauges, which can display the hydraulic changes of the brake master cylinder and the four brake cylinders in real time.

6. The panel of the training platform is equipped with a fault indicator light and a diagnostic socket, which can be connected to a dedicated or general automobile decoder to perform ECU coding query, read fault code, clear fault code, read data stream, and execute the ABS electronic control system Self-diagnosis functions such as component testing, parameter setting, and waveform analysis.

8. Equipped with fault setting system.
