Automotive ABS Braking System Training

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive abs braking system training in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Introduction

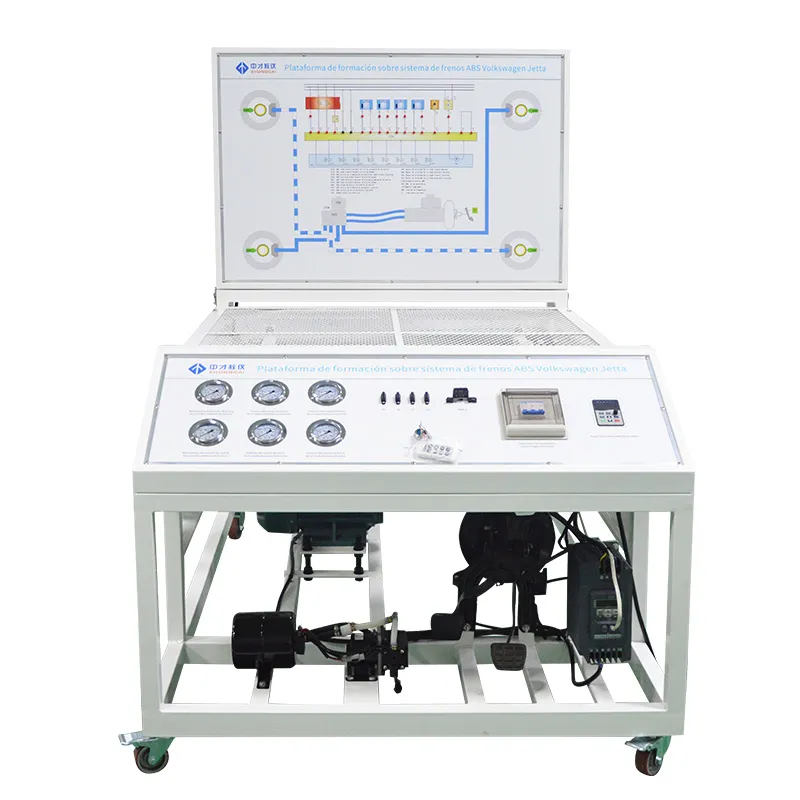

The Automotive ABS Braking System Training Platform is an advanced educational tool that provides a realistic demonstration of the ABS brake system's structure and operation. Equipped with a working principle diagram and functional components, it allows for accurate simulation of the ABS system during emergency braking scenarios. This training platform is ideal for teaching the theoretical concepts, structural composition, and maintenance training of the ABS system in automotive education settings.

Functional Characteristics

Realistic System Simulation

The platform integrates a real automobile ABS brake system, demonstrating its complete composition and structure.

Driven by an asynchronous motor, the front and rear axles simulate vehicle motion. During an emergency braking simulation, the ABS system activates, allowing brake discs to rotate slightly and simulating the bouncing feedback on the brake pedal for a true-to-life demonstration.

Intuitive Design for Learning

The panel features a UV flat-panel printed color circuit diagram and hydraulic pipeline diagram, enabling trainees to compare diagrams with physical components and analyze the ABS system's working principle.

Advanced Diagnostic Features

Equipped with detection terminals, users can directly measure electrical signals such as resistance, voltage, current, and frequency for each sensor and control unit.

Includes a diagnostic socket and fault indicator lights to facilitate self-diagnosis, fault code reading/clearing, actuator testing, parameter settings, and waveform analysis for the ABS/EBD electronic control system.

Hydraulic Monitoring

The training platform features pressure gauges to display real-time hydraulic changes in the master brake cylinder and the four brake cylinders, enhancing the understanding of brake force distribution.

Durability and Safety

Designed to withstand extended use with robust materials and components, the system operates safely with DC 12V for the training environment, powered through a standard AC 220V connection.

Technical Specifications

Dimensions: 1500×1000×1700mm (Length×Width×Height)

External Power Supply: AC 220V±10% 50Hz

Working Voltage: DC 12V

Operating Temperature: -40℃ to +50℃

Brake Cylinder Pressure Gauge: 0-100kg/psi

Asynchronous Motor Specifications:

Voltage: AC 220V 50Hz

Current: 11.8A/6.8A

Power: 3KW

Speed: 1420r/min

Vacuum Pump Specifications:

Voltage: AC 220V 50Hz

Power: 370W

Educational Benefits

Understanding ABS Technology

ABS (Anti-lock Braking System) is a crucial safety feature that prevents wheels from locking during emergency braking, ensuring vehicle stability and steering control. This training platform gives students a hands-on experience with the ABS system's critical components and principles.

Interactive Learning Environment

Trainees can observe and interact with real ABS components, including sensors, control units, and hydraulic elements, to deepen their understanding of braking system mechanics.

Diagnostic and Maintenance Skills

The platform's diagnostic tools and fault simulation capabilities prepare students for real-world troubleshooting and repair of ABS systems in modern vehicles.

After-Sales Service

We are committed to providing comprehensive after-sales support for the Automotive ABS Braking System Training Platform, including:

Technical Assistance

Our dedicated technical team offers professional guidance for installation, operation, and troubleshooting to ensure optimal usage.

Warranty Coverage

The product comes with a one-year warranty covering manufacturing defects. Repairs or replacements are provided promptly for any issues during this period.

Spare Parts Availability

Original spare parts are available to maintain the training platform's long-term functionality.

Training Resources

Detailed user manuals, video tutorials, and on-demand technical consultations are included to support instructors and trainees.

Customer Service Support

Our responsive customer service team is ready to assist with any queries or concerns to ensure a seamless user experience.

Why Choose the Automotive ABS Braking System Training Platform?

Realistic Educational Tool

Provides a practical and interactive learning environment for trainees to study the ABS braking system's theory and operation.

Advanced Diagnostic Capabilities

Facilitates hands-on training in fault detection and system analysis, equipping students with essential automotive maintenance skills.

Durable and Portable Design

Built with high-quality materials and designed for ease of movement, making it a reliable and flexible solution for automotive training institutions.
