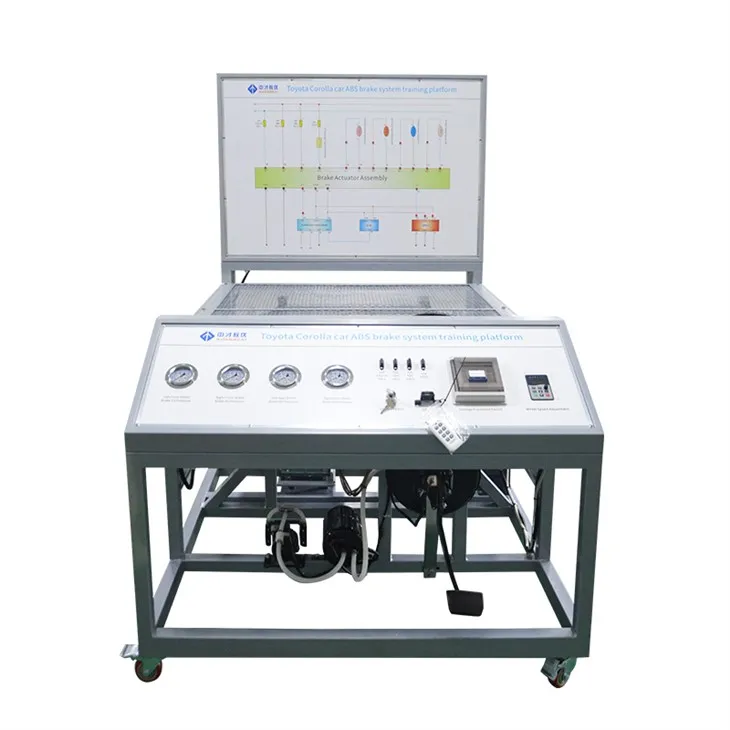

Car ABS System Trainer Model

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of car abs system trainer model in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

The Car ABS System Trainer Model is an advanced piece of automotive training equipment designed to provide a comprehensive and realistic learning experience for understanding the Anti-lock Braking System (ABS). Based on the ABS system of the Toyota Corolla, this Automotive Training Equipment features a detailed working principle diagram that visually demonstrates the structure and operation of the ABS during emergency braking scenarios.

To ensure an authentic hands-on training environment, the Car ABS System Trainer Model is equipped with a vacuum pump that simulates the brake assist system found in modern vehicles. This allows trainees to experience the reduced pedal effort typical of real-world braking conditions. The automotive training equipment is designed to demonstrate the key functions of the ABS, including wheel speed sensor operation, activation of the hydraulic control unit (HCU), and the prevention of wheel lock-up during hard braking.

Ideal for automotive schools, technical institutes, and professional workshops, this Car ABS System Trainer Model is an invaluable tool for helping students and technicians gain practical experience in ABS diagnostics, troubleshooting, and maintenance. By combining theoretical knowledge with hands-on learning, this automotive training equipment deepens understanding of how ABS enhances vehicle safety by maintaining steering control and reducing stopping distances.

Thanks to its high-fidelity design and fully functional components, the ZhongCai ZC-QCB30C Car ABS System Trainer Model effectively bridges the gap between classroom instruction and real-world automotive repair, making it an indispensable resource for those pursuing in-depth knowledge of modern braking systems.

Technical Parameters

Working Power Supply: DC 12V

Input Power: AC 220V±10% 50Hz

Main Power Supply: Three-phase four-wire (three-phase five-wire 380V±10% 50Hz)

Overall Dimensions: 1500×1000×1800mm (length×width×height)
