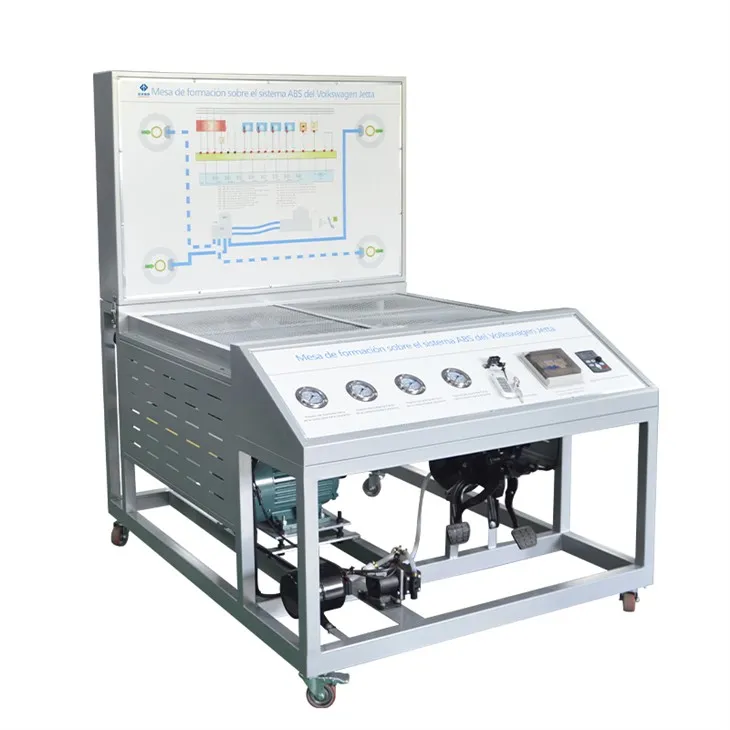

ABS Braking System Training Equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of abs braking system training equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

ABS Braking System Equipment

Product Introduction
The ABS Braking System Training Equipment is designed to showcase the operation of an automobile's ABS brake system during emergency braking. Featuring a detailed working principle diagram, this platform is ideal for automotive training, offering an in-depth look at the system's structure, action, and diagnostic functions. Perfect for both theoretical and hands-on training for ABS brake system theory, detection, and maintenance.

Key Features

Realistic ABS Simulation
The system uses an asynchronous motor to drive the front and rear axles, simulating the driving of a car. During emergency braking, the ABS system engages, keeping the brake discs rotating slightly while the brake pedal exhibits the characteristic bouncing feedback, providing an authentic demonstration of how the ABS system functions in real-time.

Interactive Training Panel
The training platform's panel includes a clear diagram that illustrates the ABS system's working principles. Trainees can directly test electrical signals from each sensor and control unit on the system using the built-in detection terminals. Parameters such as resistance, voltage, current, and frequency signals can be monitored for a deeper understanding of the system's operation.

Diagnostic and Fault Detection
The system is equipped with a diagnostic socket that allows users to connect to a dedicated or universal vehicle decoder. This provides full self-diagnosis capabilities, including reading and clearing fault codes, data stream analysis, actuator testing, and parameter adjustments, all related to the ABS/EBD electronic control system.

Technical Specifications

Dimensions: 1500mm × 1000mm × 1700mm

Power Supply: AC 220V ±10% 50Hz

Working Voltage: DC 12V

Working Temperature: -40℃ to +50℃

Brake Cylinder Pressure Gauge: 0-100kg/psi

After-Sales Service

Warranty

The ABS Braking System Training Equipment comes with a 1-year warranty covering any manufacturing defects, with free repairs or part replacements.

Technical Support

We provide comprehensive support via phone, email, or online tutorials to assist with setup, maintenance, and troubleshooting.

Spare Parts Availability

Replacement parts are readily available to ensure that your training equipment remains in optimal working condition for years to come.

About ABS Braking System
The ABS (Anti-lock Braking System) is a critical safety feature in modern vehicles. It prevents the wheels from locking during hard braking, allowing the driver to maintain steering control. This system is vital in emergency situations, as it can significantly reduce stopping distances on slippery roads. Our training equipment helps students and professionals understand the intricate components and operation of the ABS system, making them more proficient in diagnosing and repairing ABS-related issues.
