Steering And Suspension System Trainer

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of steering and suspension system trainer in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Introduction

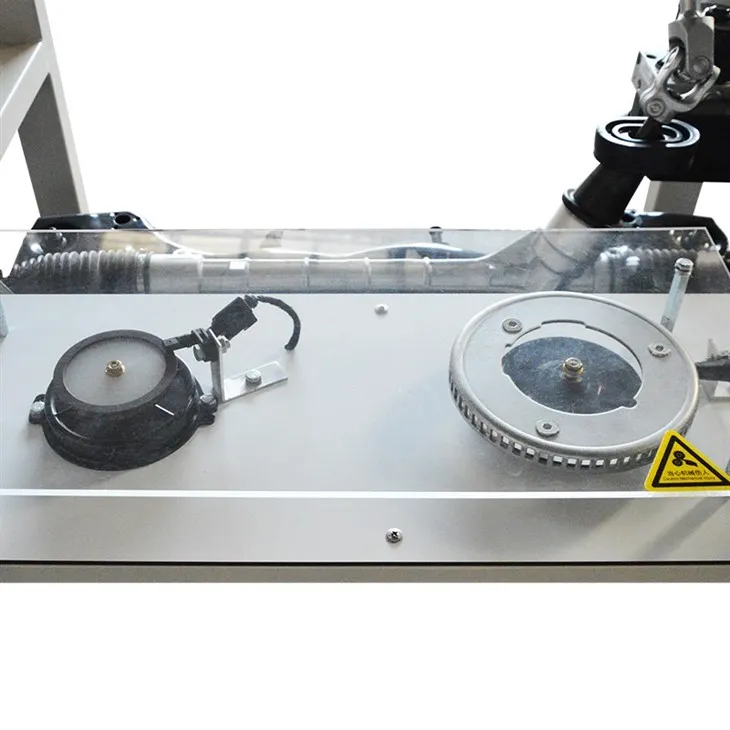

The Steering and Suspension System Trainer is designed using the front axle assembly of an electric power steering vehicle, showcasing the full composition and operational process of the electronic power steering system and the front axle suspension system. This trainer is ideal for teaching both the theory and practical maintenance of electronic power steering systems in automotive education settings.

Key Features

Realistic and Functional System
An actual and fully operational automotive electronic power steering system. It allows students to examine the system's components and gain hands-on experience with the functioning and structure of the power steering system.

Simulated Vehicle and Speed Adjustment
The trainer includes an engine speed and vehicle speed output simulation knob. This allows users to simulate different speeds and vehicle conditions while turning the steering wheel, offering a clear demonstration of how the electronic power steering system operates under various conditions.

Intuitive Learning with Circuit Diagrams
The training table's panel is constructed from 4mm thick, high-grade aluminum-plastic material, which is resistant to corrosion, moisture, and fire. The surface is treated with a special process to prevent fading, and it displays a color circuit diagram. Trainees can easily compare the diagram with the real system to understand the operation of the electronic power steering system.

Comprehensive Diagnostic Features
The training platform is equipped with detection terminals, allowing users to measure electrical signals such as resistance, voltage, current, and frequency. This functionality helps students understand the diagnostic aspects of the power steering system, providing valuable hands-on troubleshooting experience.

Technical Specifications

Dimensions: 1700mm × 1200mm × 1800mm (length × width × height)

Input Power: AC 220V ±10% 50Hz

Working Power Supply: Original vehicle power supply voltage

Working Temperature: -40℃ to +50℃

Steel Pipe: 60403mm

Mobile Casters: 100*50mm

Panel Cabinet: 1.5mm cold plate stamping

After-Sales Service

Warranty
The Steering and Suspension System Trainer comes with a one-year warranty against defects in materials or workmanship. We offer free repairs or replacements for any issues that occur within the warranty period.

Technical Support
Our team provides ongoing technical support to ensure that the trainer operates at its best. Support is available via email, phone, or remote consultation. Whether it's setup, maintenance, or troubleshooting, we're here to assist.

Spare Parts and Upgrades
We maintain a wide inventory of spare parts for easy replacements, ensuring your system remains in optimal working condition. Additionally, optional upgrades for advanced training modules are available upon request.

About Steering and Suspension Systems
The Equipment provides an in-depth understanding of how electronic power steering systems work alongside suspension systems in modern vehicles. The electronic power steering system (EPS) uses sensors and electric motors to assist in steering, making the vehicle easier to control. The integration of the suspension system helps ensure smooth handling, comfort, and safety, especially during turns or when encountering road irregularities. This trainer gives students a comprehensive experience, preparing them for both diagnostics and maintenance in real-world automotive environments.
