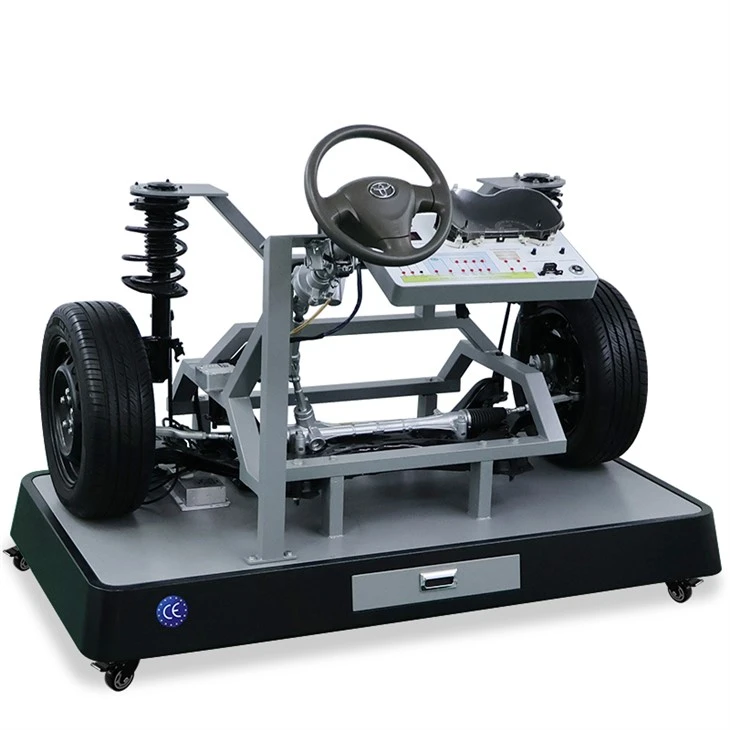

Power Steering System And Suspension Training Equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of power steering system and suspension training equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Power Steering System and Suspension Training Equipment

II. Functional Features:
1. A fully functional automotive electronic power steering (EPS) system that clearly demonstrates the system's components and structure.
2. Features rotary knobs to simulate engine speed and vehicle speed; turning the steering wheel left or right allows for a complete demonstration of the EPS system's operation.
3. The training panel is made of high-quality, 4mm-thick aluminum-plastic composite board-resistant to corrosion, impact, stains, fire, and moisture-with a surface treated via a special primer-spraying process. It features a permanent, fade-resistant color circuit diagram, enabling trainees to visually compare the diagram with actual components to understand and analyze the system's operating principles.
4. Testing terminals are installed on the panel, allowing for direct measurement of electrical signals (such as resistance, voltage, current, and frequency) from the EPS system's circuit components.
5. Equipped with a diagnostic port for connection to dedicated or universal automotive scanners, enabling self-diagnostic functions such as reading and clearing fault codes.
6. The base features a welded steel structure with a spray-coated finish and is equipped with self-locking casters, ensuring flexible mobility, safety, reliability, and durability.

III. Technical Specifications:
1. Dimensions: 1700 × 1200 × 1800 mm (L × W × H)
2. Input Power: AC 220V ±10%, 50Hz
3. Operating Power: DC 12V
4. Operating Temperature: -40°C to +50°C
5. Color: 7032
6. Steel Tubing: 40 × 40 × 3 mm
7. Casters: 100 × 50 mm
8. Panel Cabinet: Formed from 1.5mm cold-rolled steel sheet via stamping; includes a maintenance access door on the rear.
