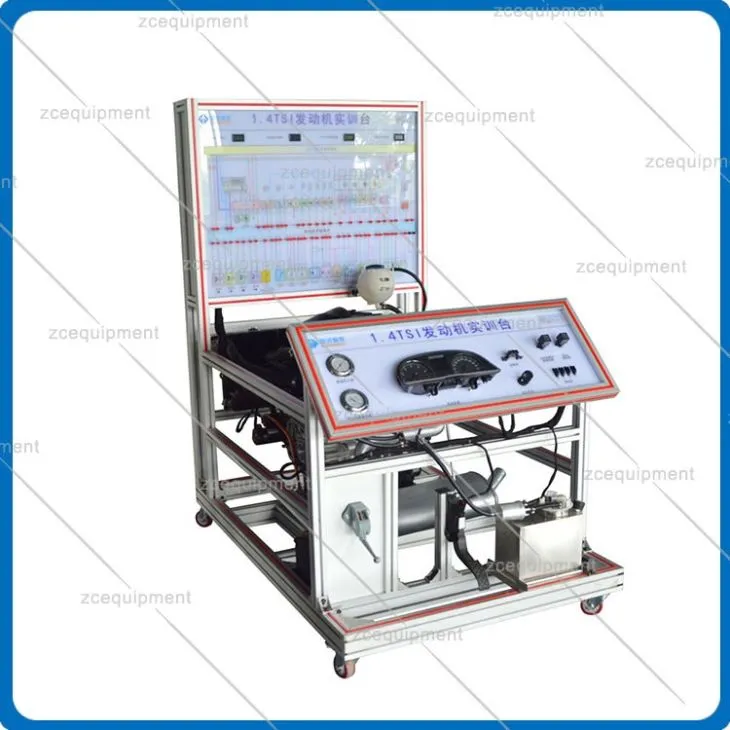

Automotive Didactic Equipment In-cylinder Direct Injection Motor Engine Training Bench

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive didactic equipment in-cylinder direct injection motor engine training bench in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Features

1. The measuring panel of the training bench is painted with color inkjet circuit diagram, which is made of 8mm thick high-strength acrylic plate, which is resistant to large temperaturedifference, wear-resisting, moisture-proof, anti-corrosion, not easy to deformation, long service life, bright color, not easy to fade and so on.

2. The operating panel of the training platform is equipped with automobile instrument, fuel pressure gauge and vacuum pressure gauge, which can display the changes of engine speed, fuel pressure and inlet manifold pressure in real time.Equipped with a diagnosis block, it can be connected to a special or universal automobile decoder, which can perform self-diagnosis functions such as reading fault code,clearing fault code and reading data stream for the engine electronic control system.Equipped with throttle control device, it is convenient to accelerate and decelerate the engine.

3. Test terminals are installed on the panel of the training bench, and the electrical signals of each sensor, actuator and engine control unit pin, such as resistance, voltage, current and frequency signals, can be directly detected on the panel.

Technical parameters：

1. Overall size: 1500×1000×1800mm(length × width × height)

2. Working power: dc 12V

3. Fuel no. : 92#

4. Tank capacity: 10L

5. Product model: zc-qca004
