Automotive Direct Injection Trainer
Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive direct injection trainer in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.
|
Name
|
Automotive Direct Injection Trainer
|
|
Category
|
Automotive Training Equipment
|
|
Brand
|
ZhongCai
|
|
Model Number
|
ZC-QCA07A
|
|
Place of Origin
|
China Guangzhou
|
|
Certification
|
ISO9001/ISO14001/CE
|
|
Parameter
|
Customized
|
|
Size
|
1600 x 600 x 1700 mm
|
Comprehensive direct injection system teaching platform

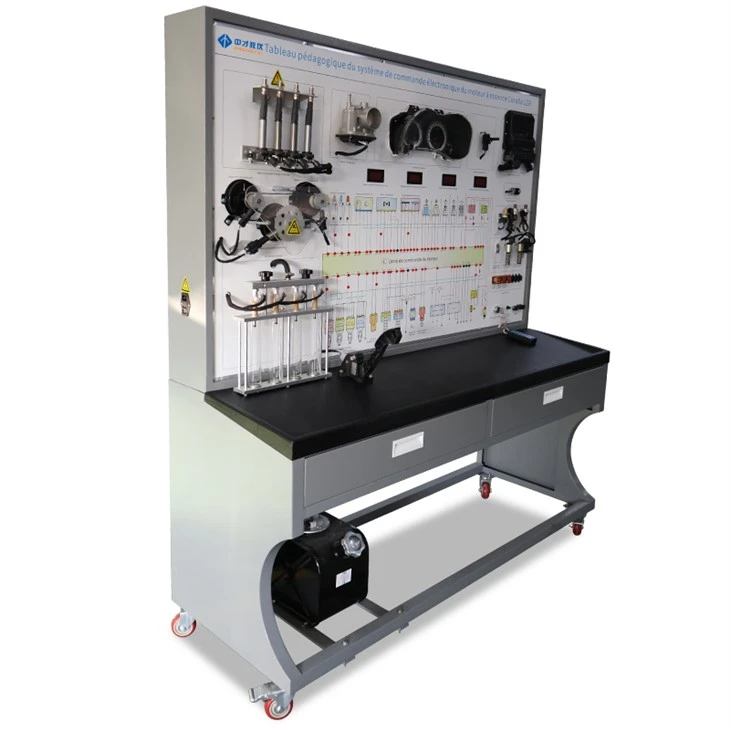

The automotive direct injection trainer is an advanced and systematic training platform designed to provide an in-depth explanation of the electronic control system of modern gasoline engines. Based on the Corolla 1ZR inline four-cylinder gasoline engine, the automotive training equipment fully replicates the working conditions and interaction logic of various sensors and actuators within the engine control system. It is an ideal choice for automotive technicians, engineers, and vocational school students to conduct practical training and deepen their understanding.
Visual fuel injection demonstration
A highlight of this automotive direct injection trainer is its intuitive display of the fuel injection process. The system is equipped with four 120 ml glass measuring cups, which clearly show the injection status of each injector. Learners can observe key parameters such as injection timing, injection mode, and injection volume in real time, helping them to fully understand the core control logic and fuel supply characteristics of direct injection technology within the cylinders.
Improvement of electronic control signal analysis and fault diagnosis capabilities
The ZhongCai ZC-QCA07A automotive direct injection trainer is equipped with a complete electrical signal detection terminal that can directly connect to and measure signal data from sensors, actuators, and engine control units (ECUs). Students can read voltage, resistance, current, and frequency signals of each key pin on the system operation panel, simulate actual diagnostic procedures, develop system analysis and troubleshooting skills, and lay a solid foundation for future work in automotive maintenance and diagnostics.
