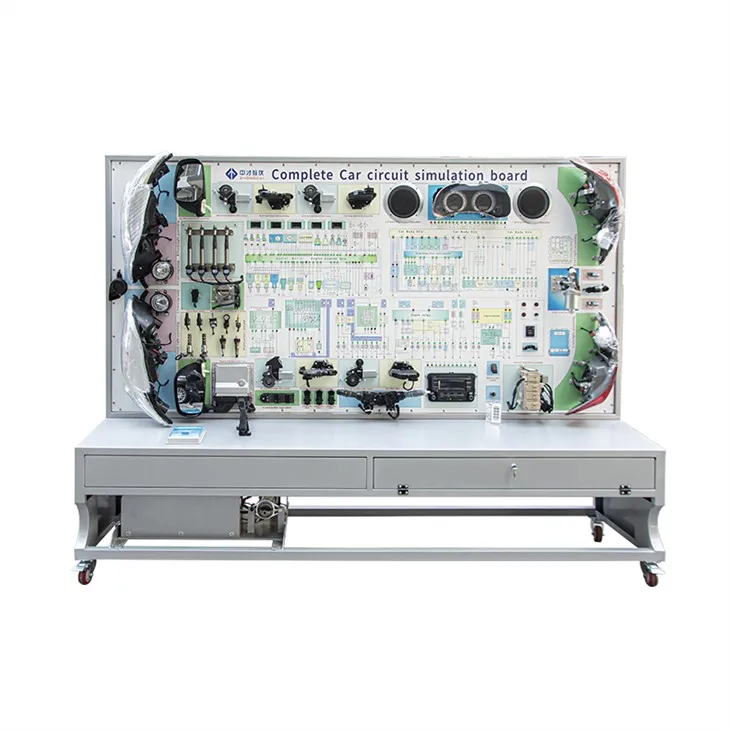

Corolla Whole Vehicle Electrical System Training Platform

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of corolla whole vehicle electrical system training platform in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

1. Introduce the product

This  product named  Corolla whole vehicle electrical system training platform.The exact same equipment Laura Electronic circuit system (five electric) Turn on street lights, street lights, windshield wipers We need Mainer's technical skills General learning institutions and learning institutions.

2. Corolla whole vehicle electrical system training platform Function:

2.1. The actual electronic and electric systems of the car complete description of the basic system, lighting system, micro, micro repair, engine system, trunk and ignition system.

2.2 Different electronic switches and buttons simulate driving systems, lights, lamps, flashlights, system startup, charging and ignition.

2.3. On each line in the training device's system tray is a lie detector that reads the images and measures this ability. All with tools like lasers and flashlights.

2.4. Inside the box is a transmitter that contains direct electromagnetic signals from elements of the power system: resistance, voltage, current, frequency signals, and so on.

2.5. Originally made of steel bar, strong surface, corrosion and life. The car looks solid and reliable enough to use.

3. Product parameters

Equipment name: car electrical system training table
Equipment Model:
Equipment size: 2400*800*1800mm (L*W*H)
Weight: about 150KG
Main material of table frame: steel, aluminum plastic plate
Power source Motor: AC380V Stand: DC12V
Working temperature: -50℃～+50℃

4. Basic Configuration Requirements (per unit)

1.Detection control panel is equipped with various detection terminals and color circuit diagram set 1
2 Engine Control Computer (ECU) set 1
3 diagnostic base OBDⅡ PCS 1
Ignition switch with anti-theft reading coil 1
5 combination gauges 1
6 Combination switch 1
7 about the headlamp assembly 1
8 or so front fog lights 1
9 left and right turn signals 1
10 left and right turn side lights 1
11 around combination taillights 1
12 license plate lights each 1
13 Light switch 1
14 Brake light switch 1
15 Reverse headlight switch 1
16 Danger light switch 1
17 wiring harnesses 1
18 Wiper assembly Set 1
19 Wiper controller Each 1
20 water jet motor PCS 1
21 Watering cans each 1
Twenty-two horns for two
23 horn relays 1
24 X contact relay with 1
25 Fog lamp relay set 1
26.Non-distributor ignition system includes igniter assembly, spark plug, crankshaft position sensor sleeve 1
27 Analog nozzle indicator 1
28 Fuel pump relay 1
29.Crankshaft position sensor and signal wheel sleeve 1
30 Electric window main switch sleeve 1
31 Right front door lock motor set 1
32 around rear electric window motor set 1
33 Switch sleeve for left and right rear electric window 1
34 Car Audio assembly set 1
35 speakers 6" to 1
36 Starter assembly table 1
37 Generator assembly set 1
38 Three-phase asynchronous motor station 1
39 Battery 12V 45Ah battery 1
40 Main power switch 50A PCS 1
