Volkswagen Passat B5 Automobile CAN-Bus Teaching Bench

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of volkswagen passat b5 automobile can-bus teaching bench in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

1. Product introduction
Volkswagen Passat B5 automobile CAN-Bus  teaching bench is adopted in the experimental bench. The new Volkswagen B5 automobile body CAN bus system, including power window, central control door lock and rearview mirror system, is used as the basis to fully demonstrate the auto body CAN bus system, including power window, central control door lock and rearview mirror system structure and working process.
It is suitable for the teaching needs of the CAN bus system of automobile body in schools, including the theory and maintenance training of power window, central control door lock and rearview mirror system.
2. Functional features

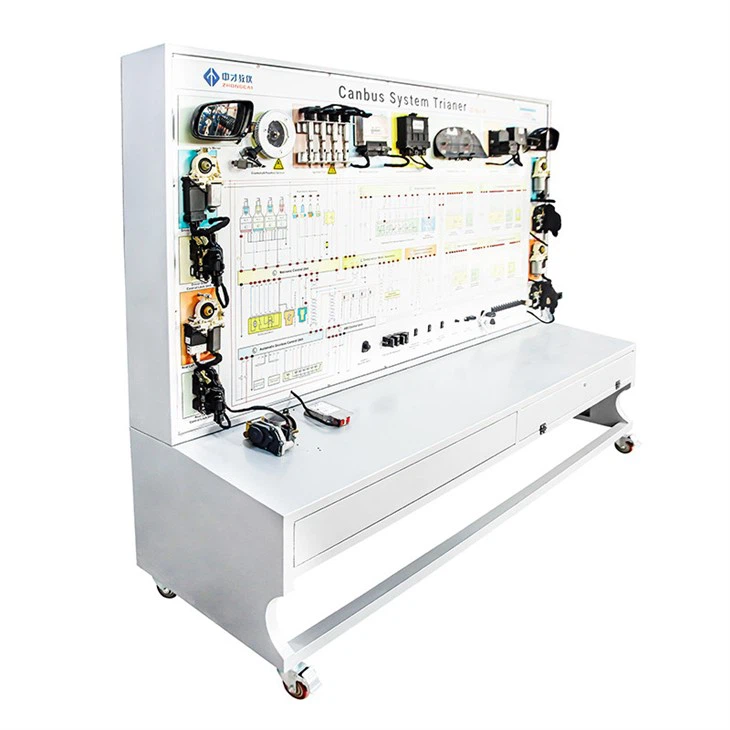

1) The real and operational Volkswagen Passat B5 automobile CAN-Bus teaching bench, including power window, central control door lock and rearview mirror system, fully display the composition structure of car power window, central control door lock and rearview mirror system.
2) Operate the power window switch, the central control door lock switch and the rearview mirror switch, which CAN truly demonstrate the CAN bus system of the car body, including the working process of the power window, the central control door lock and the rearview mirror system.

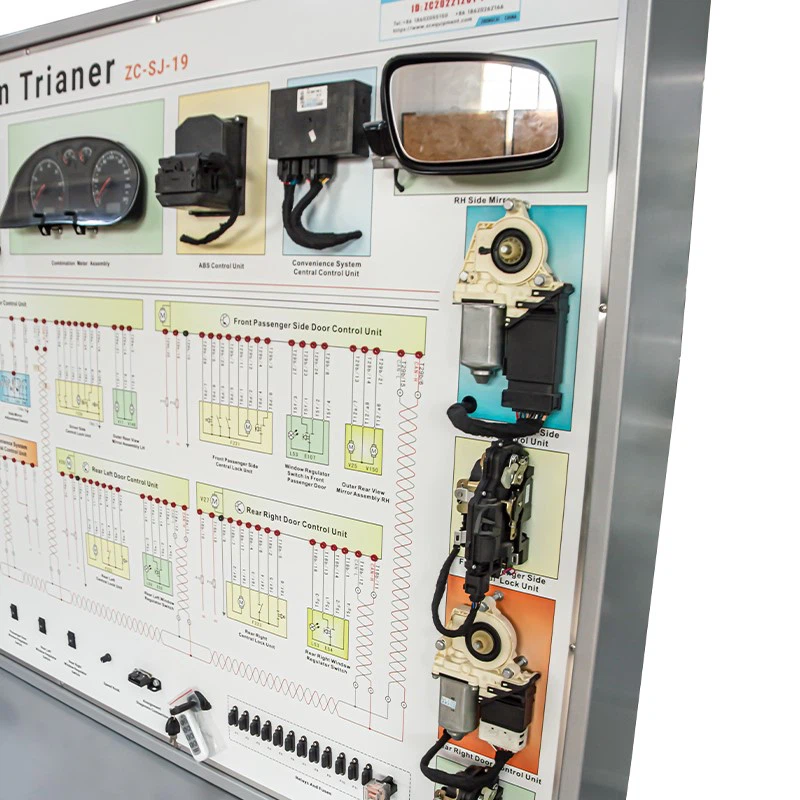

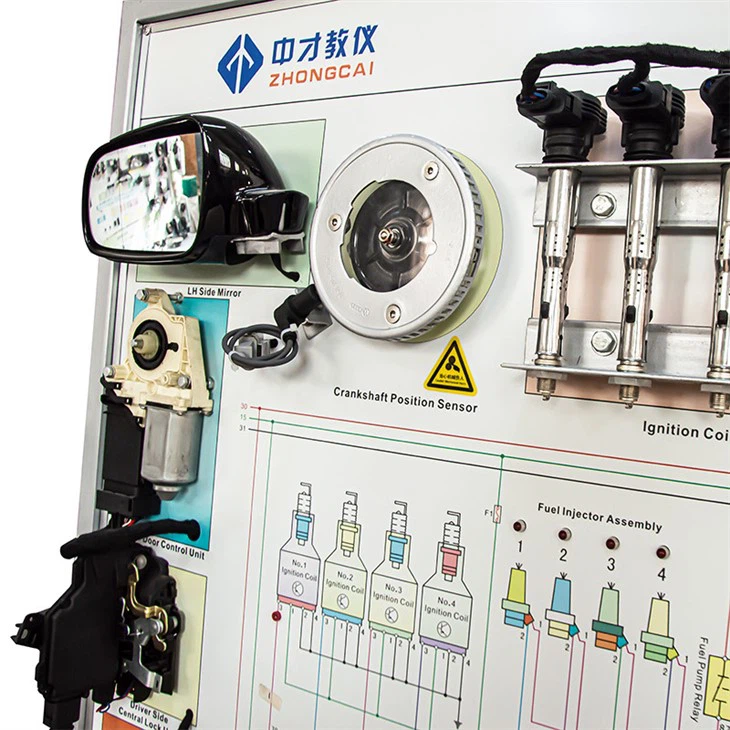

3) The surface of the teaching board is made of 4mm thick aluminum-plastic board with corrosion resistance, impact resistance, pollution resistance, fire resistance and moisture resistance. The surface is treated by special process spraying primer; Panel printed with color circuit diagrams that never fade; Students can understand and analyze the working principle of electric window, central control door lock and rearview mirror system by direct comparison with circuit diagram and object.

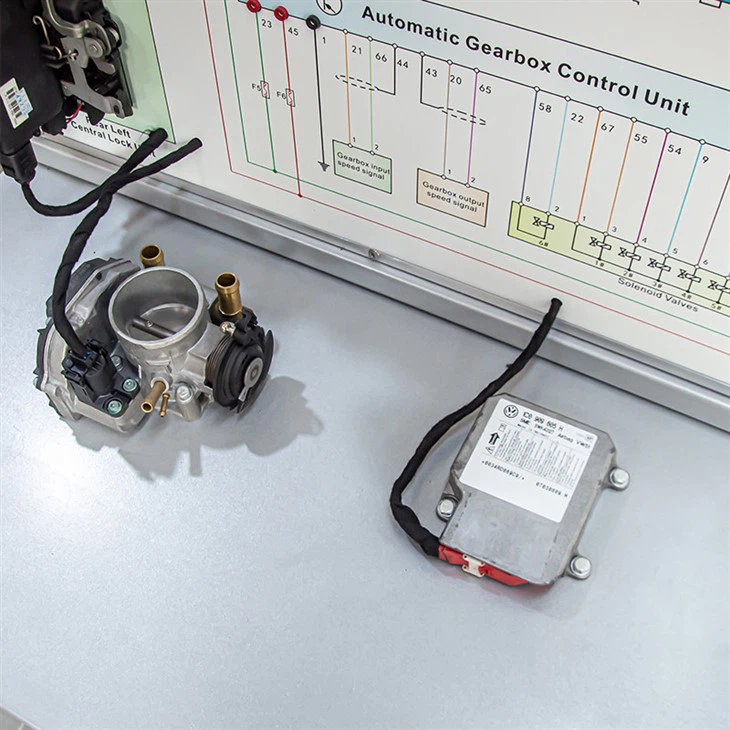

4) Detection terminals are installed on the panel of the teaching board, which can directly detect electrical signals of electric window, central control door lock and rearview mirror system, such as resistance, voltage, current and frequency signals.

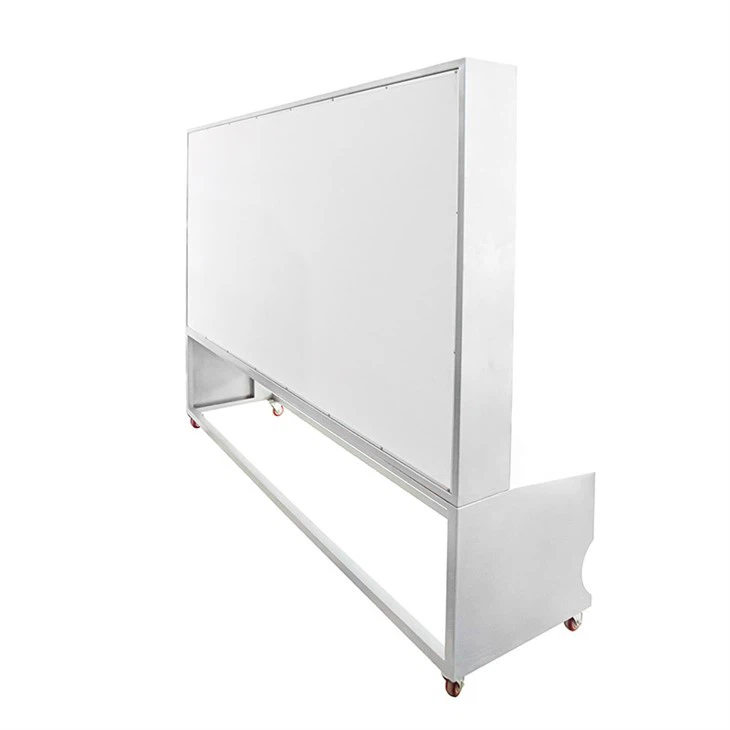

5) The surface of the teaching board is made of 1.5mm cold plate, which is beautiful in appearance; The bottom frame is welded with steel structure, and the surface is treated with spraying process. It is equipped with a self-locking caster device. The table top of about 40cm is equipped on the base of the teaching board, which is convenient for placing data and light testing instruments.
6) The teaching board works with ordinary 220V AC power supply, which is converted into 12V DC power supply through the internal circuit transformer rectification, without the need for battery, reducing the trouble of charging. 12V DC power supply has the function of preventing short circuit.
7) Equipped with fault insertion, evaluation, and data acquisition systems.

3. Technical specifications
Overall dimension (approx.) : 1740×600×1700mm(length × width × height)
External power supply: AC 220V±10% 50Hz
Operating voltage: DC 12V
Operating temperature: -40℃ ~ +50℃
Color: 7032
Steel pipe: 40*40*3mm
Cabinet: 1.5mm cold plate stamping.
Moving casters: 100*60mm
