Automotive Ignition System Instruction Board

Name: China Automotive Ignition System Instruction Board Manufacturers, Suppliers - Engineering Education Equipment - Zhongcai
Brand: Zhongcai
SKU: 202738238

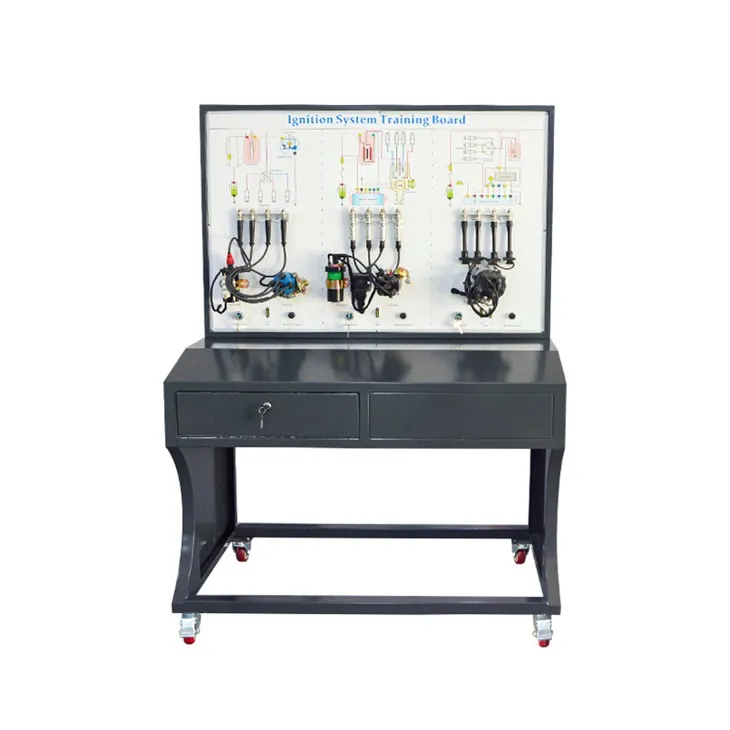

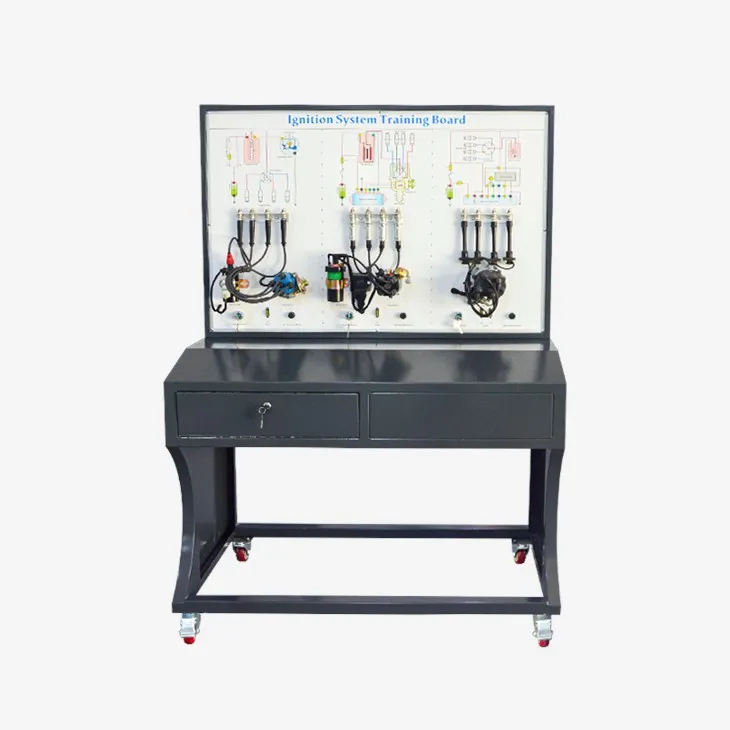

The Automotive Training Equipment uses three typical (i.e.: contact ignition system, Hall-type electronic ignition system, magnetic induction ignition system) of the real parts of the engine ignition system to fully demonstrate the composition of the engine ignition system structure and working process.

Send Inquiry

Product Introduction

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive ignition system instruction board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Name	Automotive Ignition System Instruction Board
Category	Automotive Training Equipment
Brand	ZhongCai
Place of Origin	China Guangzhou
Certification	ISO9001/ISO14001/CE
Parameter	Customized

Product Requirements

The Automotive Ignition System Instruction Board is an essential automotive training equipment designed to provide comprehensive instruction on the fundamental principles and operating procedures of modern engine ignition systems. The Instruction Board integrates three typical ignition systems-contact ignition system, Hall electronic ignition system, and magnetic induction ignition system-using real engine components to provide a realistic and interactive learning experience. By demonstrating the complete structure and working mechanism of these systems, the Automotive Ignition System Instruction Board enables students to gain in-depth knowledge of the functions, troubleshooting techniques, and maintenance procedures of ignition systems.

The Automotive Ignition System Instruction Board is built with high-quality materials and precision-engineered components to accurately replicate the operating behavior of each ignition system type. Learners can observe step-by-step working processes, including spark generation, timing control, and signal transmission, through dynamic demonstrations. The Instruction Board features clearly labeled circuit diagrams, sensor placement, and ignition modules for easy identification and analysis of key components. In addition, the system supports hands-on experiments, allowing instructors to simulate common ignition faults such as weak sparks, timing misalignment, or sensor failures, thereby improving students' diagnostic and problem-solving skills.

Ideal for automotive vocational schools, technical colleges, and professional training organizations, this automotive training equipment is a great resource for both theoretical instruction and practical skills development. Its user-friendly design and durable construction ensure long-term reliability in demanding educational environments. By bridging the gap between classroom learning and real-world application, the Automotive Ignition System Instruction Board prepares future automotive technicians to confidently maintain and repair modern ignition systems that meet industry standards and technological advancements.

With an emphasis on visual learning, interactive labs, and real-world relevance, this ZhongCai Automotive Ignition System Instruction Board is an indispensable addition to any automotive engineering or repair training program, helping to deepen understanding of ignition system technology and its critical role in engine performance.
