Automotive Six Ignition Systems Equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive six ignition systems equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Introduction

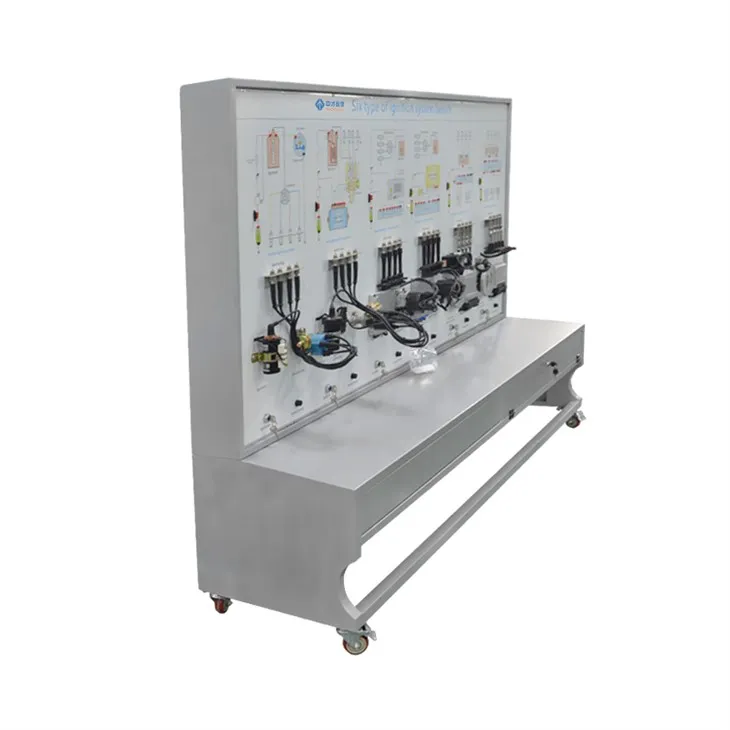

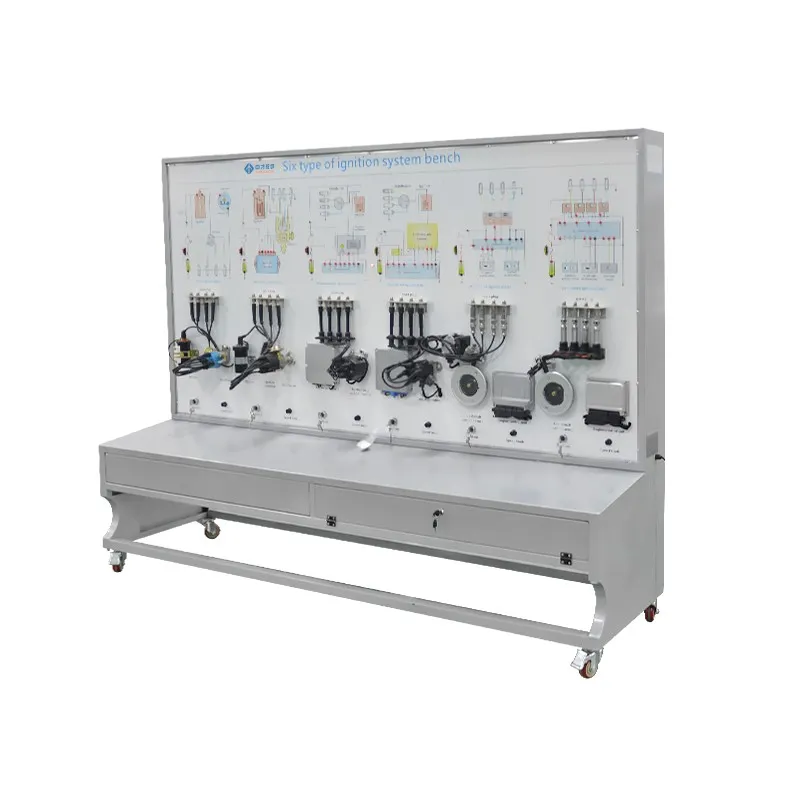

The Automotive Six Ignition Systems Equipment is an advanced training platform designed with six typical engine ignition systems: contact ignition system, Hall electronic ignition system, magnetic induction ignition system, distributorless group ignition system, and photoelectric ignition system. It provides a comprehensive demonstration of the composition, structure, and working principles of engine ignition systems.

This equipment is ideal for dynamic teaching demonstrations, fault diagnosis, and troubleshooting exercises, meeting the needs of secondary and higher vocational schools, as well as automotive training institutions.

Functional Characteristics

Comprehensive Training Capability

Features six operational ignition systems to fully demonstrate the composition and working processes of various ignition types. This makes the Automotive Six Ignition Systems Equipment an all-in-one solution for teaching and practice.

Durable and High-Quality Materials

The teaching board panel is made of 4mm thick high-grade aluminum-plastic plate, offering resistance to corrosion, impact, pollution, fire, and moisture. Its surface is treated with a specialized primer spraying process for long-lasting durability.

Visual Learning and Analysis

Equipped with a non-fading, colorful circuit diagram and working principle diagram printed on the panel. Students can intuitively compare the real components with the circuit diagram, enhancing their understanding of ignition system principles.

Advanced Detection Features

Detection terminals on the teaching panel allow for direct measurement of electrical signals, including resistance, voltage, current, and frequency, for various ignition system components.

Diagnostic Functionality

Integrated with a diagnostic socket that supports connection to special or universal automotive decoders. It enables fault code reading, clearing, and other self-diagnostic functions, making the Automotive Six Ignition Systems Equipment highly functional and practical.

Technical Specifications

Dimensions: 1740×700×1700mm (L×W×H)

External Power Supply: AC 220V±10% 50Hz

Working Voltage: DC 12V

Operating Temperature: -40℃ to +50℃

Steel Pipe Frame: 60403mm

Cabinet Material: 1.5mm cold plate stamping

Movable Casters: 100*60mm

Applications

The Automotive Six Ignition Systems Equipment is perfect for:

Vocational and technical schools focusing on automotive education.

Automotive training institutions requiring fault diagnosis and repair practice.

Teaching demonstrations of engine ignition systems' principles and applications.

Advantages of Choosing Our Equipment

Comprehensive Training Support:

The Automotive Six Ignition Systems Equipment enables hands-on training for students with real components and operational ignition systems.

Customizable Solutions:

We can customize the teaching panel design to fit specific training needs or include additional diagnostic features upon request.

Durable and Reliable Construction:

Designed with high-quality materials and durable construction, this equipment ensures long-term usage in intensive teaching environments.
