New Energy Automotive Training Equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of new energy automotive training equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Introduction

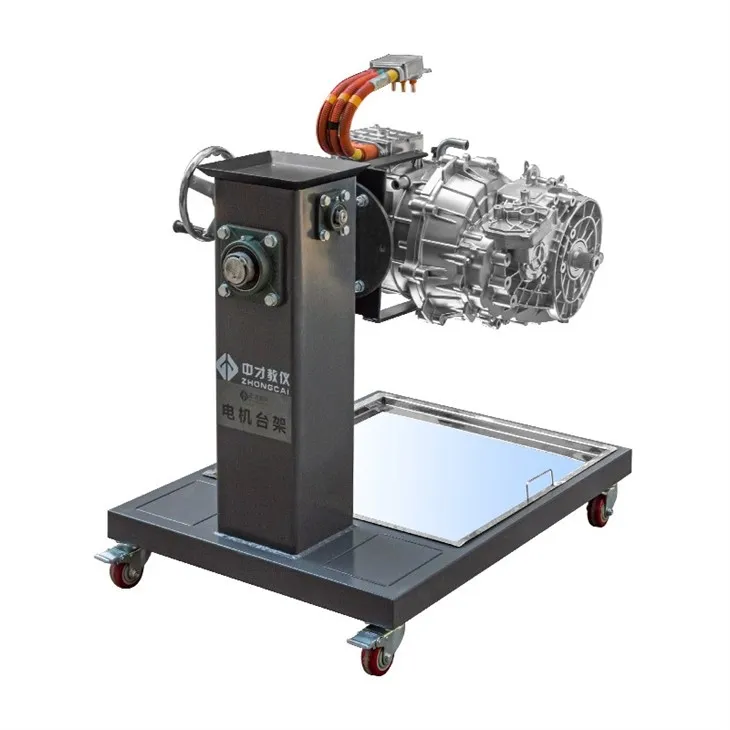

This New Energy Automotive Training Equipment is specifically designed for vocational training and educational institutions, providing a hands-on learning experience for students studying new energy vehicle drive motor systems. The system incorporates a fully equipped drive motor assembly mounted on a specialized rotating frame, allowing trainees to practice motor disassembly, assembly, and maintenance with ease. The innovative design ensures safety, convenience, and effective teaching outcomes.

Key Features

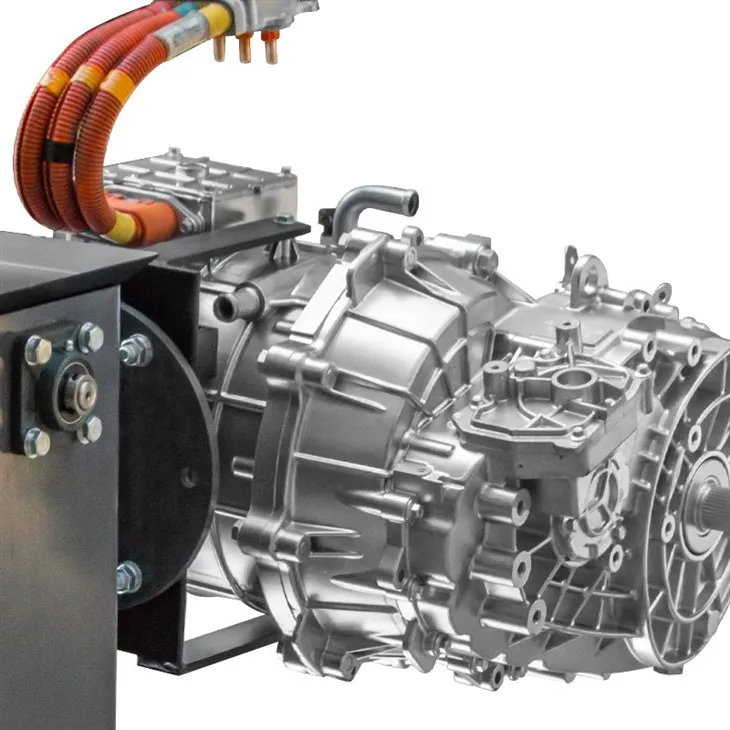

Comprehensive Drive Motor Assembly

The training platform features a complete new energy vehicle drive motor system, including all necessary accessories, ensuring a realistic and practical training experience.

The system is designed for repeated disassembly and assembly, allowing students to develop essential skills in motor maintenance and servicing.

Adjustable Rotating Frame

Equipped with a reduction-gear rotation mechanism, the system allows the transmission to rotate at any angle.

The locking system ensures that students can securely hold the motor in place at any desired position for detailed examination and practical training.

The adjustable angles facilitate learning from multiple perspectives, improving the efficiency of hands-on exercises.

Integrated Storage System

A dedicated oil collection tray is placed at the bottom of the unit, helping to keep the work area clean and organized.

Small components and screws can be conveniently stored in the tray, preventing loss during disassembly and assembly training.

Durable and Mobile Design

The rotating frame is made of high-strength steel with a robust welded structure, ensuring long-term durability.

The surface is treated with an advanced coating process to enhance corrosion resistance and extend the lifespan of the equipment.

The bottom frame is equipped with self-locking caster wheels, allowing for easy mobility while ensuring stability during operation.

Educational and Training Applications

This New Energy Automotive Training Equipment is an essential tool for hands-on training in:

Understanding the structure and working principles of new energy vehicle drive motors.

Practicing disassembly and reassembly of motor and transmission components.

Learning safe handling techniques for high-voltage automotive systems.

Performing maintenance procedures and troubleshooting on electric vehicle drive systems.

Technical Specifications

Drive Motor Type: Permanent magnet synchronous motor (PMSM)

Rotating Frame Material: High-strength welded steel

Surface Treatment: Anti-corrosion coating

Rotation Mechanism: Reduction-gear rotation with multi-angle locking function

Mobility: Self-locking caster wheels for easy movement and stability

Storage System: Integrated oil collection tray for small parts and screws
