New Energy Automobile Educational Equipment
Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of new energy automobile educational equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.
Key Functions

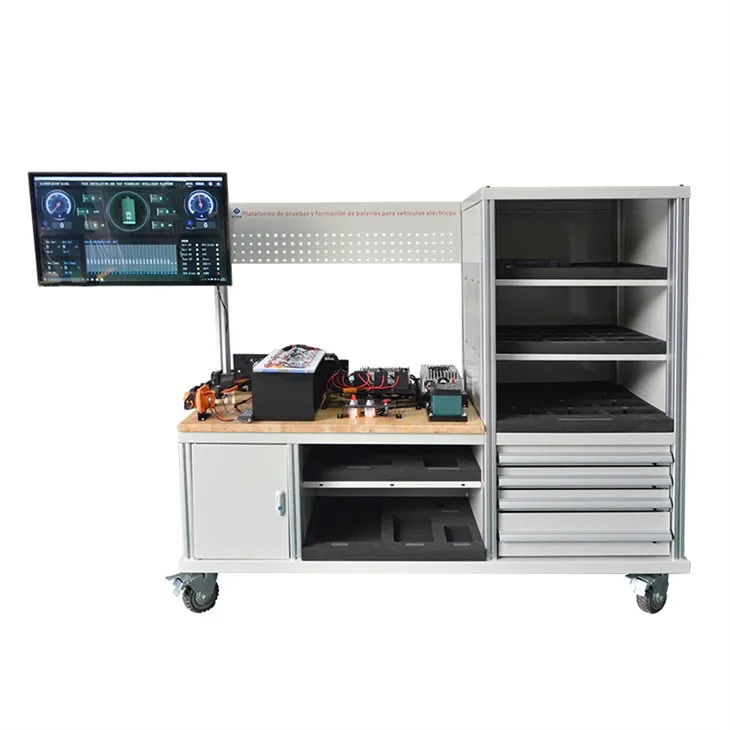

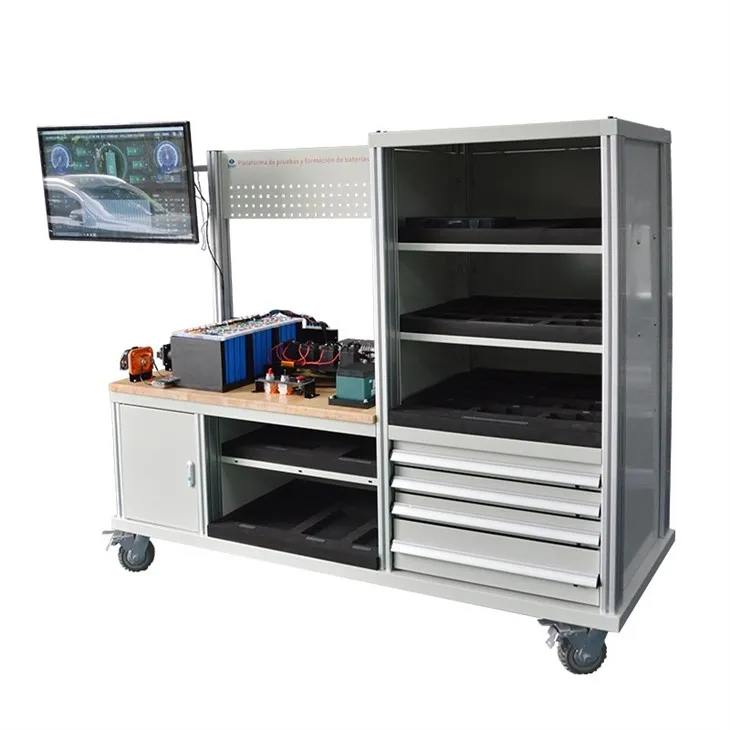

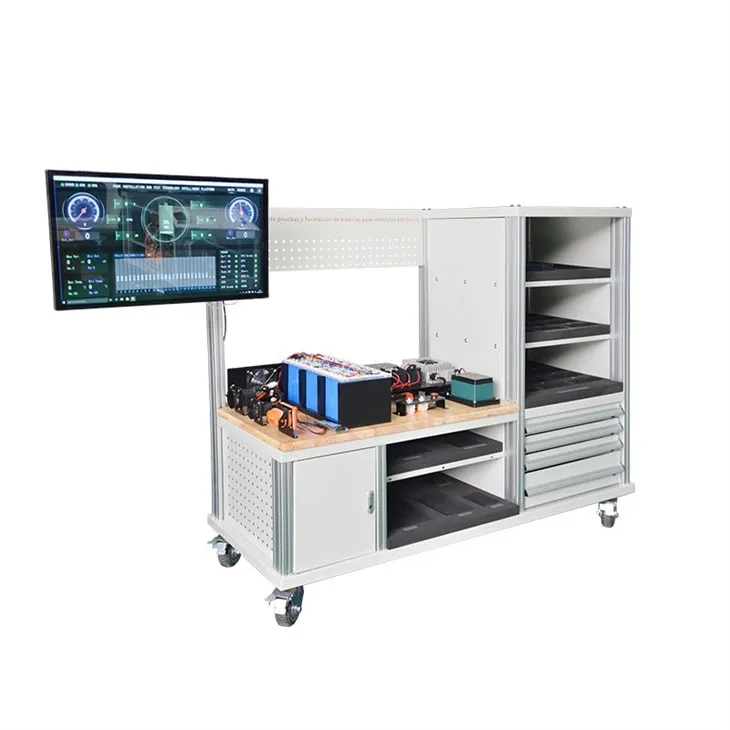

·Equipped with an insulated workstation for component assembly and wiring practice.

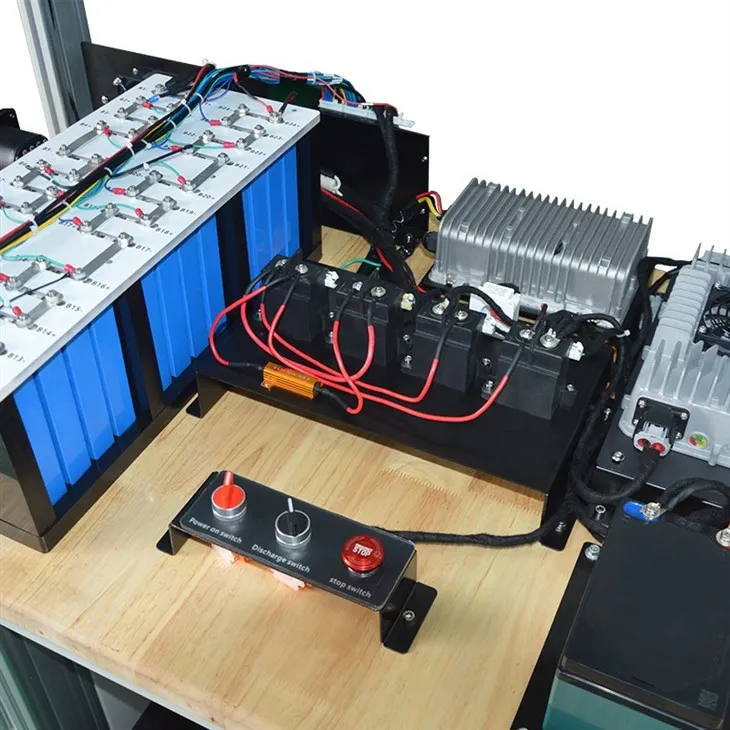

·Lithium iron phosphate battery modules with dedicated bases and terminals, supporting repeated disassembly and assembly (4 modules, each with 6 single cells).
·Vehicle-grade maintenance switch for assembly and circuit training.
·Standard BMS communication protocol for real-time data collection (voltage, temperature, SOC, charge/discharge current). Data is displayed on a 10-inch multimedia terminal.
·Supports internal resistance testing, cell balancing, and SOC monitoring.
·Built-in charging interface and onboard charger, compatible with charging stations.
·Includes high-voltage contactors, DC/DC converter, pre-charge circuit, and protective components for training.
Training Objectives
·Single-cell testing and classification
·Battery module assembly and disassembly
·Power management system diagnostics
·BMS wiring and installation
·Maintenance switch training
·Charger and charging interface installation
·High-voltage contactor wiring
·Current sensor integration
·DC/DC module training
·Pre-charge circuit operation
This platform not only serves as automotive electrical training aids but also complements other trainers such as the diesel engine trainer, electric power steering trainer, and automotive diagnostic trainer, creating a complete learning system for modern automotive technology.
Popular Tags: diesel engine trainer, electric power steering trainer, Electric vehicle teaching equipment, automotive basic electric circuit trainer, automotive diagnostic trainer, automotive education equipment, automotive electrical trainer board, automotive electrical trainer, automotive electrical training aids
Why Choose Us
Our is designed to meet the growing demands of vocational education and training in the field of new energy vehicles. With cutting-edge features and practical training tasks, it is an indispensable tool for developing the next generation of automotive technicians and engineers.
We ensure that our equipment is built to last and comes with the support necessary to make it a valuable asset in your training program for years to come.
|
Serial number |
Product Name |
quantity |
unit |
|
1) |
BMS power management module |
1 |
set |
|
2) |
Maintenance switch |
1 |
set |
|
3) |
DC/DC Modules |
1 |
set |
|
4) |
AC charging socket |
1 |
set |
|
5) |
Discharge load |
1 |
set |
|
6) |
Auxiliary power supply |
1 |
set |
|
7) |
Current Sensors |
1 |
set |
|
8) |
High voltage contactor |
4 |
Group |
|
9) |
Car Charger |
1 |
set |
|
10) |
High and low voltage wiring harness |
1 |
set |
|
11) |
Display |
1 |
indivual |
|
12) |
Pre-charge resistor |
1 |
indivual |
