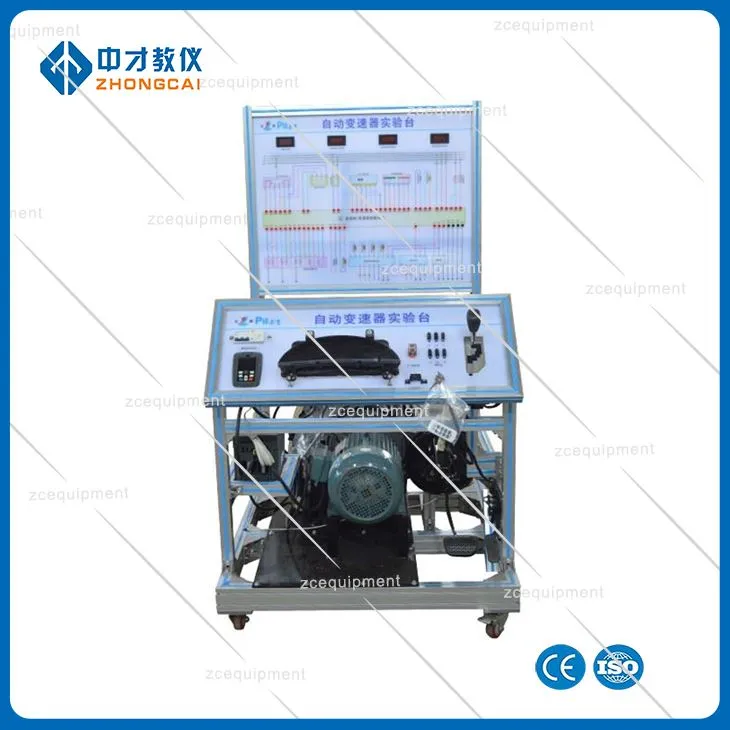

Automobile automatic transmission training bench

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automobile automatic transmission training bench in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

 Description

1.The education equipment training bench is based on the Toyota A340 electronically control automatic transmission assembly and fully display the internal structure and working process of the electronically control automatic transmission. comprehensive function system, operating normally, and also can carry on the fault diagnosis experiment.

2.The measurement board of the training bench is painted with spray-painted of the original automatic transmission structure diagram, working principle diagram and the working condition chart of each working component in different gear positions. Students can directly compare the chart and the real object to analyze the transmission route of each gear position and the working process of each component.

3.The board of the training bench is equipped with automatic transmission gear display device and indicator light of gear position of the gear lever to display the working condition of the transmission in real time.

4. Each brake and clutch automatic training transmission consists of a single gas path to promote its action, automatic transmission control unit according to the received multi-function switch and gear selector switch signal, control the corresponding electromagnetic valve action, to connect control corresponding pneumatic clutch, brake, so as to realize the shifting process of the transmission.

Parameters

Product photos show
