Gasoline Engine Electronic Control Teaching Board

PRODUCT INTRODUCTION

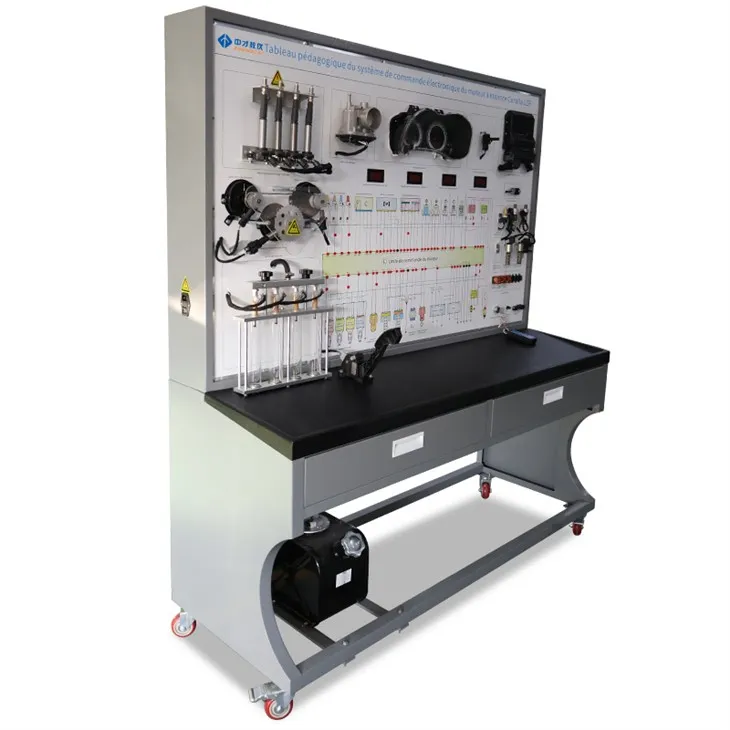

This Gasoline Engine Electronic Control System Teaching Board is an automotive training equipment designed for vocational schools, automotive training centers, and technical institutes. It helps students understand the gasoline engine ECU working process, signal logic, and diagnostic procedures. The system supports hands-on training, electronic control troubleshooting, and practical maintenance instruction.
Keywords: gasoline engine teaching board, automotive electrical training boards, automotive vocational training equipment

FUNCTION FEATURES

Real ECU control simulation for crankshaft rotation, fuel injection, fuel pump activation, and spark ignition demonstration, suitable for automotive electrical training and diagnostic teaching.

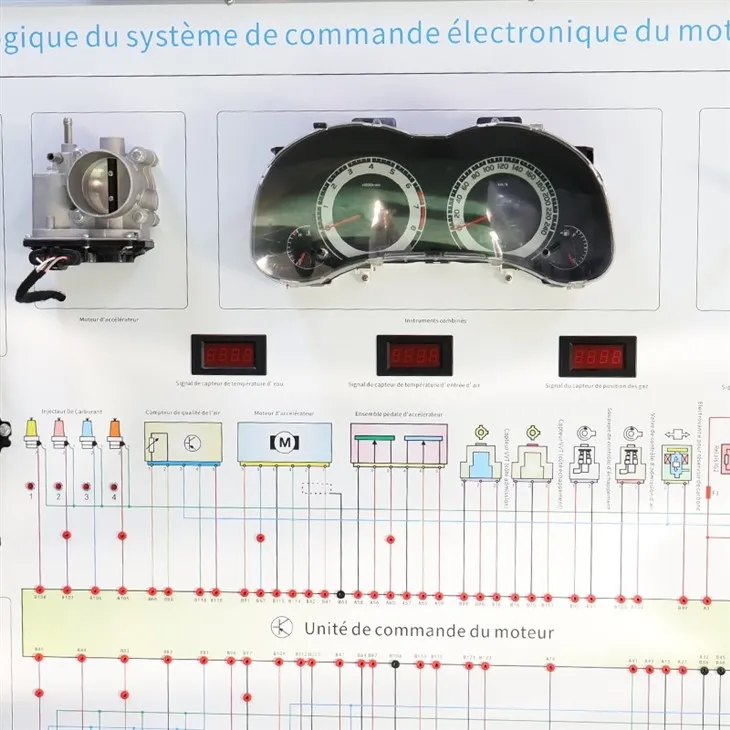

Front panel with circuit diagrams, signal flow charts, and component schematics for intuitive learning and fast troubleshooting during vocational skills training.

Built-in testing terminals for multimeter testing (voltage, resistance, current, and frequency), supporting practical diagnostic training in automotive electrical systems.

Integrated diagnostic port supports OBD automotive diagnostic scanners for reading fault codes, clearing codes, and performing ECU electronic control system diagnostics.

Heavy-duty steel frame, aluminum composite panel, AC220V input, internal DC12V supply, self-locking casters, and dual drawers for classroom use.
Keywords: automotive electrical training, ECU diagnostic training, gasoline engine ECU teaching platform

TECHNICAL SPECIFICATIONS
Dimensions (approx.): 1600×600×1700mm
Power Supply: AC220V±10% 50Hz
Operating Voltage: DC12V
Operating Temp.: -40°C～+50°C
Fuel Pressure: 0–10kg/psi
Casters: 100×60mm
Frame: 60×40×3mm steel tube
Keywords: educational laboratory equipment, automotive training platform

COMPETITIVE ADVANTAGE & TRAINING VALUE
Compared with traditional demonstration boards, this gasoline engine teaching platform integrates demonstration, diagnostic, testing, and training functions. It supports hands-on automotive vocational training, fault diagnosis, and electrical troubleshooting, improving learning outcomes and practical skill certification.
Keywords: practical automotive training, fault diagnosis training, electronic control education equipment
