Automotive Training Equipment Engine Ignition Advance Demonstration Teaching Board

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive training equipment engine ignition advance demonstration teaching board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

The Engine ignition advance demonstration teaching board can operate as a standalone system without a PC, and can be operated using the built-in or external oscilloscope with guidance from the experimental manual. The simulator can be connected to a PC via USB communication using CBT courseware and D-SCOPE software to display signals. Optional DCML software can be used to record student progress on student PCs, and teachers can access these records for monitoring, course management, and recording of LAN access (not provided).

Experiment Content of Engine ignition advance demonstration teaching board
This system enables students to perform multiple experiments covering the following topics:
• Centralized injection system
• E-DIS type electronic ignition system
• Spark generation and non-spark generation
• Secondary circuit waveforms
• Trigger pulse
• Primary circuit current limiting and ignition angle
• Ignition timing
• Engine speed (RPM) and ignition timing
• Engine load and ignition timing
• Engine temperature and ignition timing
• Knock control
• RPM measurement
• MAP sensor
• Sensor and valve system
• CAN-BUS communication The system is accompanied by a student manual and an experiment manual.

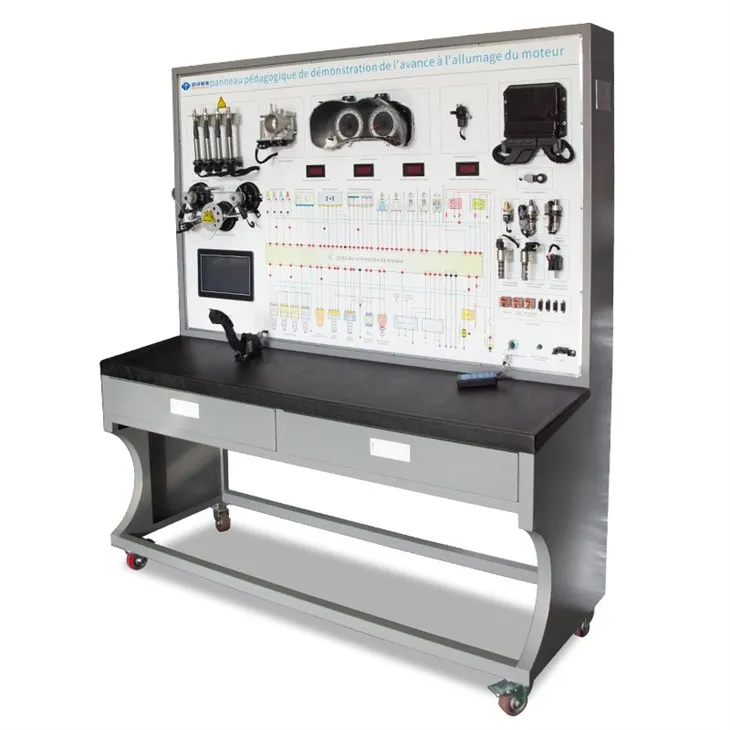

The Engine ignition advance demonstration teaching board's panel is made of 1.5mm cold-rolled steel sheet, stamped and formed for an aesthetically pleasing appearance. The base is constructed of welded steel with a powder-coated surface and features self-locking casters. The base includes a 40cm wide tabletop made of ABS plastic through a one-piece vacuum-formed design, providing anti-slip and anti-static properties, convenient for placing documents, testing instruments, etc.

The teaching board operates on standard 220V AC power, which is converted to 12V DC power through internal circuitry. This eliminates the need for batteries, reducing charging inconvenience. The 12V DC power supply has short-circuit protection.

The Automotive Training Equipment is equipped with two self-closing drawers, one of which is used for storing frequently used tools.
