automotive vocational training equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive vocational training equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Core Specifications:
Dimensions: 1500×1000×1700/1800 mm
Power Supply: DC 12V (equipped with 54–60Ah battery)
Fuel Tank Capacity: 10L
Fuel Grade: 92# (or higher)
Total Weight: Approx. 200–260 kg

Key Technical Parameters
Dimensions: Length × Width × Height typically 1500×1000×1700 mm or 1500×1000×1800 mm (some models feature a 1300 mm width)
Power Supply: DC 12V; battery capacity typically 54Ah–60Ah
Fuel System: 10L tank capacity; compatible with 92# (or higher) gasoline
Total Weight: Approx. 200–260 kg (including engine assembly and stand)
Operating Environment: Temperature -40°C to +50°C; relative humidity ≤85%
Mobility: Equipped with 120×80 mm self-locking universal casters at the base
Key Functions and Configuration

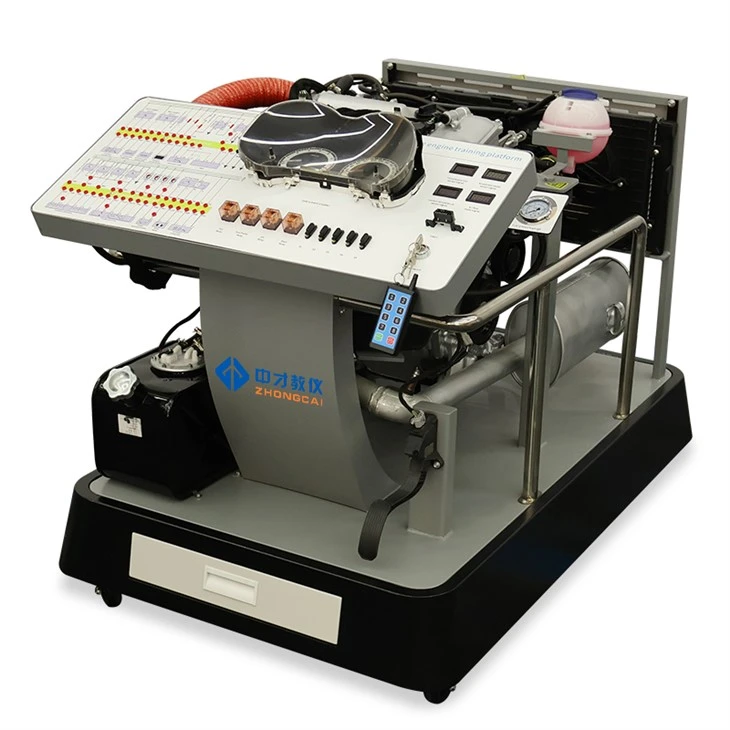

Power Core: Features a fully functional Volkswagen 1.4TSI electronically controlled gasoline engine assembly (including OEM ECU, sensors, actuators, and accessories); supports operating modes such as starting, acceleration, and deceleration.
Testing & Diagnostics: Panel integrates testing terminals (for measuring voltage, resistance, and frequency), an OBD-II diagnostic port (supporting code reading/clearing and data stream analysis), and a combination instrument cluster with digital displays (real-time monitoring of RPM, oil pressure, coolant temperature, and vacuum level).
Teaching Aids: Panel features a color circuit schematic (aluminum-plastic composite or acrylic material) and a fault simulation system (with wireless remote control support on some models). Safety Structure: Welded steel frame with a powder-coated finish; equipped with protective guards for rotating parts and earth leakage protection.
