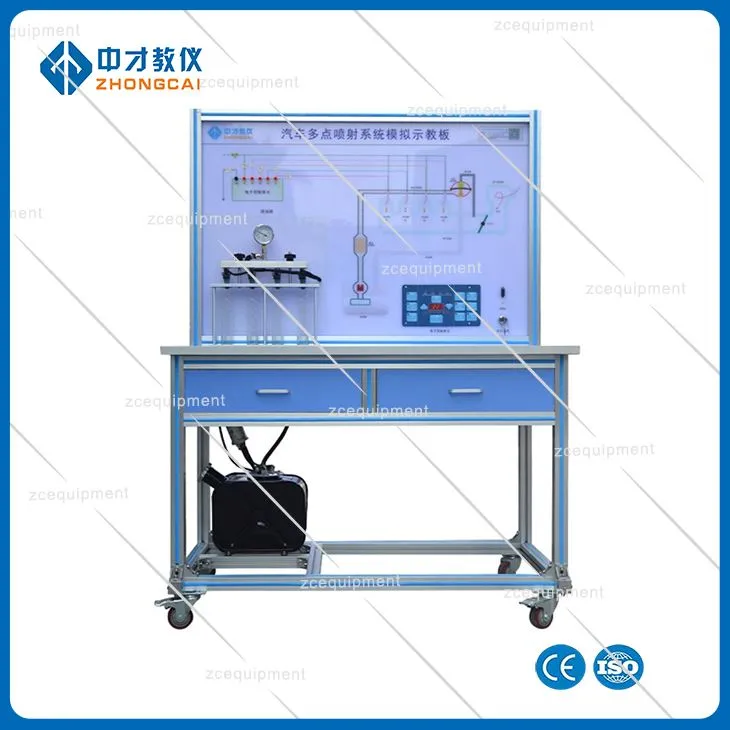

Simulation Teaching Board For Automobile Multi-point Injection System

1. Function:

1. The original car accessories are used, arranged according to the original car position, and equipped with corresponding large color pictures. It is intuitive and easy to teach.
2. Combining the existing three fuel injection methods, you can directly observe the improvement of fuel injection system and the development of automobiles.
3. The oil circuit is made of plexiglass and pressure-resistant plastic, which can observe the changes of the oil circuit from time to time, and is equipped with a fuel pressure gauge to display the system oil pressure. Gasoline is circulated to prevent waste and pollution.
2. Operation:
1. Connect the 220V external power supply. (Use a 3-hole plug).
2. Press the power switch, observe that the power indicator light is on, press the select button to switch the fuel injection mode (there is an indicator light next to it)
3. Press the start button to work.
3. Matters needing attention:
1. Perform system conversion after the fuel injection system stops working.
2. Unplug the power plug after the work stops.
4. Specifications:
1. Power supply: AC 220V, 50Hz.
2. Working power supply: DC 12V.
3. Dimensions: 1200×800×1800mm
