Auto Electric Doors And Windows, Door Lock System Teaching Board

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of auto electric doors and windows, door lock system teaching board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Overview

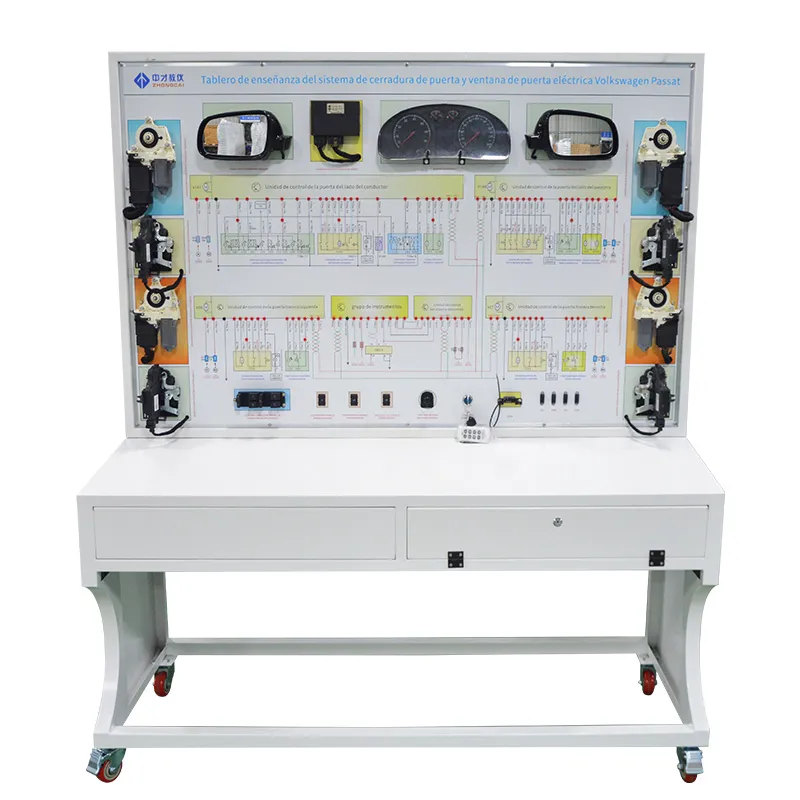

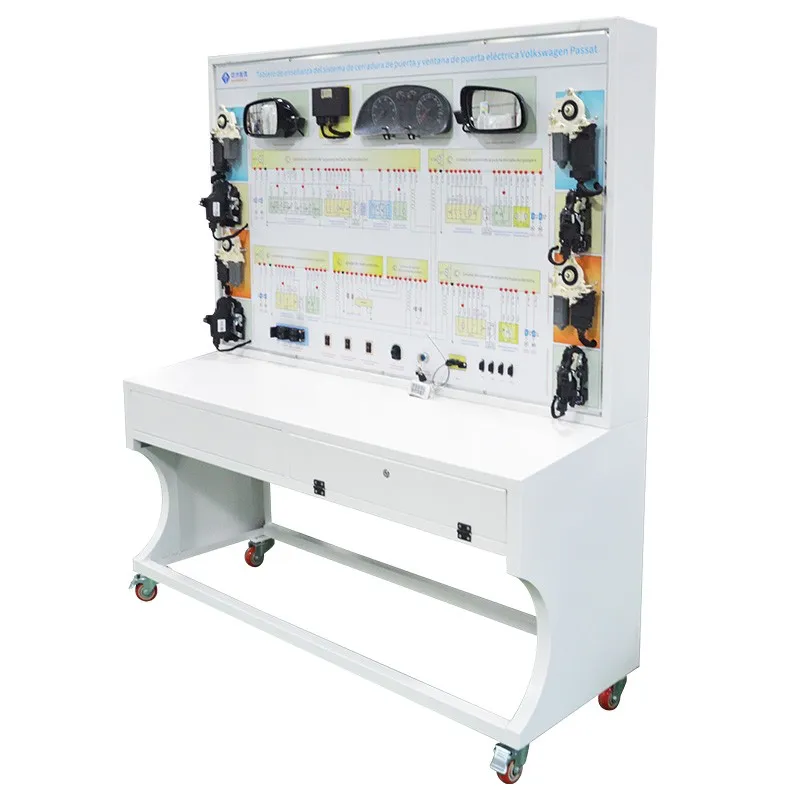

Designed for automotive education programs, this teaching board simulates the electric window, central locking, and power-adjustable mirror systems using genuine vehicle components. It offers learners a hands-on environment to explore these assemblies' architecture, operational principles, and service techniques.

Core Features

Authentic System Representation

Incorporates factory-grade parts for the window motor, door-lock actuator, and mirror drive, enabling a true-to-life display of each subsystem's build and function.

Interactive Learning Stations

Controls such as the power-window switch, door-lock button, and mirror adjustment knob let students initiate and observe real operational sequences under safe, guided conditions.

Robust Construction

Mounting panel fabricated from 4 mm aluminum-composite board resists corrosion, impact, fire, and moisture. An indelible, printed wiring schematic remains clear over time, allowing side-by-side comparison of physical circuitry.

Advanced Diagnostic Access

Built-in test ports provide direct measurement points for voltage, current, resistance, and signal frequency, facilitating in-depth troubleshooting exercises.

Specifications

Dimensions (L×W×H): 1740×600×1700 mm

Input Power: AC 220 V ± 10%, 50 Hz

Operating Supply: DC 12 V

Temperature Range: –40 °C to +50 °C

Frame Profile: 60×40×3 mm steel tubing

Cabinet Sheet: 1.5 mm cold-rolled steel

Mobility Casters: 100×60 mm

Educational Advantages

Practical Skill Development
Students master real-world service tasks-disassembly, reassembly, wiring checks, and component replacement-within a controlled lab setup.

Streamlined Understanding
Color-coded labels and an intuitive layout simplify complex system relationships, helping learners build confidence quickly.

Comprehensive Fault Simulation
Instructors can insert simulated failures (e.g., open circuits, shorted motors) for guided troubleshooting drills, preparing trainees for field diagnostics.

Support and Service

Installation Guidance
Detailed setup manuals and video walkthroughs ensure fast, correct commissioning.

Warranty Coverage
One-year protection against manufacturing defects, including free repair or replacement.

Spare Parts Availability
Ready access to OEM-quality components maintains peak training effectiveness.

Ongoing Assistance
Dedicated customer-care team provides technical advice, curriculum integration tips, and rapid response to inquiries.

Key Learning Outcomes

Electric Window Mechanism
Understand motor operation, regulator mechanics, and switch-to-motor signal flow.

Central Lock System
Explore actuator coordination, control-network communication, and security features.

Power Mirror Assembly
Examine gear-drive adjustment, defogging circuits, and user-interface controls.
