Can Bus System Teaching Board

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of can bus system teaching board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Can Bus System Teaching Board

Product Introduction

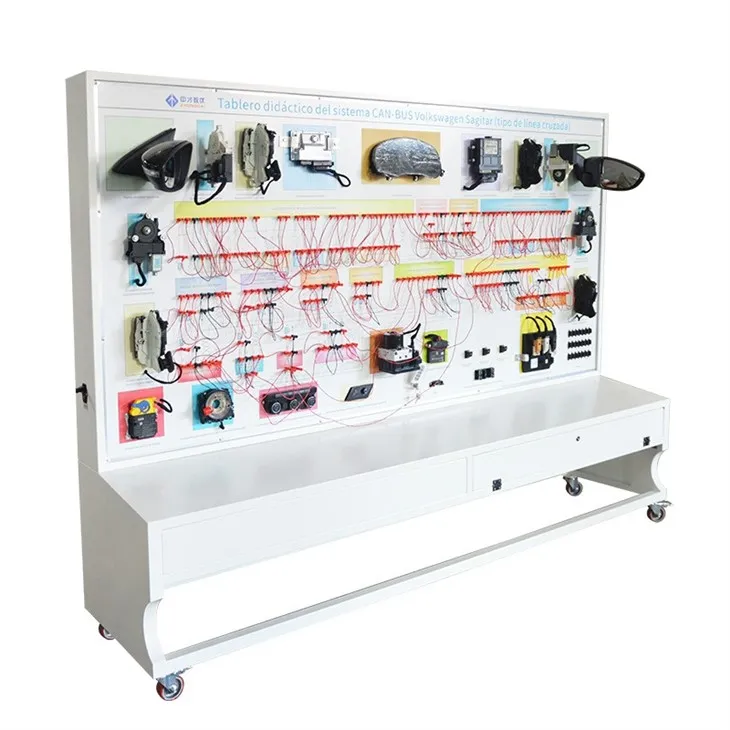

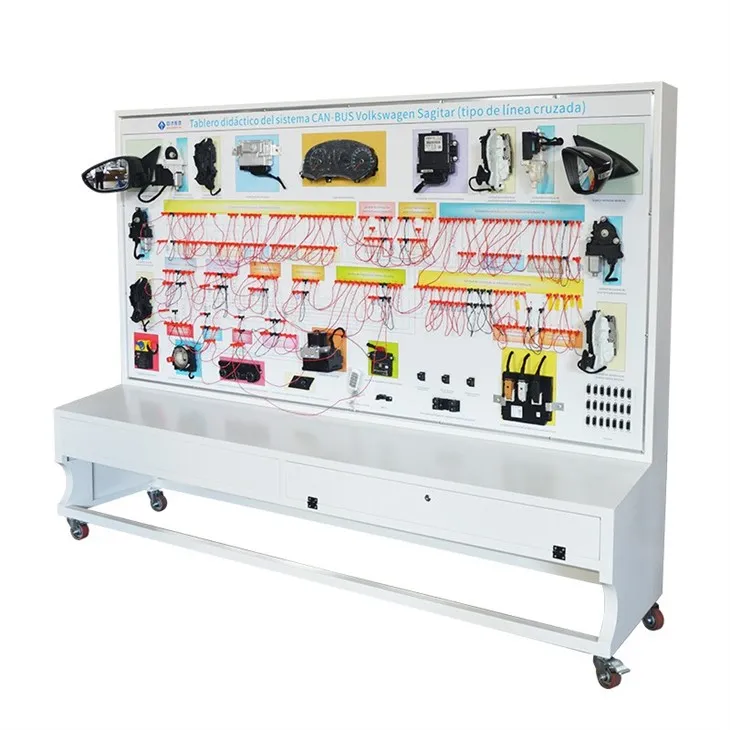

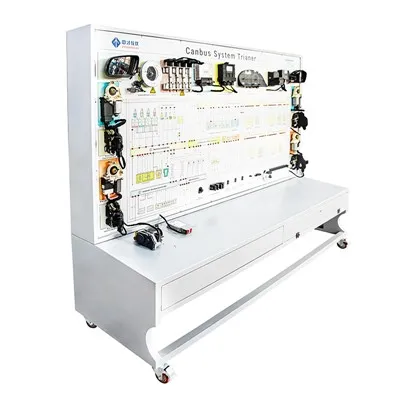

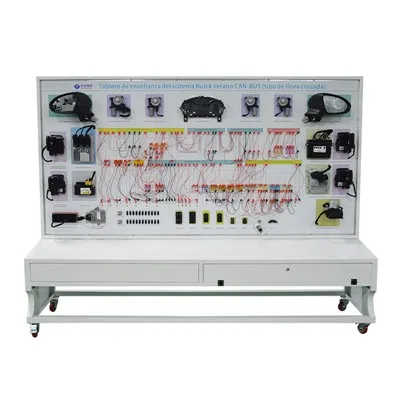

The Can Bus System Teaching Board is a cutting-edge educational platform designed to demonstrate the structure, functionality, and real-world applications of the CAN data transmission network in vehicles. It provides an intuitive learning experience, making it ideal for vocational education and technical training institutions. With its cross-line configuration, the system enhances understanding of signal transmission, diagnostics, and network troubleshooting, ensuring a comprehensive approach to CAN-BUS technology.

Key Features

Realistic CAN Network Simulation

This teaching board fully replicates the CAN data transmission system, allowing students to analyze various signals such as throttle response, speed data, anti-theft signals, and electric window controls. Through interactive controls, users can observe real-time changes and understand the network's communication protocols.

Cross-Line Configuration for Advanced Learning

Unlike conventional linear systems, the Can Bus System Teaching Board introduces a multi-directional signal flow setup, enabling more accurate simulation of real-world vehicle networks. This layout enhances diagnostic precision, facilitates efficient troubleshooting, and allows for a better understanding of data transmission in modern vehicles.

Durable and Functional Panel Design

The teaching board is built with a high-quality aluminum-plastic composite panel, offering excellent resistance to impact, moisture, fire, and environmental wear. The non-fading circuit diagram provides a clear reference, allowing trainees to compare theoretical schematics with real components for an immersive learning experience.

Integrated Diagnostic and Testing Features

Equipped with a standard diagnostic interface, the system supports connection to universal and dedicated automotive diagnostic tools. This enables users to perform ECU fault code retrieval, parameter adjustments, waveform analysis, and actuator testing across various subsystems such as engine control, ABS, instrument clusters, and vehicle comfort systems.

Safe and Efficient Power Supply

Operating on a standard AC 220V power input, the system internally converts to a stable 12V DC power supply, eliminating the need for additional batteries. Built-in short-circuit protection enhances safety, making it a reliable tool for continuous educational use.

Technical Specifications

Dimensions: 2400mm × 700mm × 1800mm (L×W×H)

Power Input: AC 220V ±10% 50Hz

Operating Voltage: DC 12V

Temperature Range: -40℃ to +50℃

Frame Material: 60×40×3mm steel tubing

Panel Cabinet: 1.5mm cold-rolled steel stamping

Caster Wheels: 100×60mm heavy-duty mobility casters

Advantages of Cross-Line Type System

Enhanced Realism: Provides a more accurate representation of real-world automotive CAN network behavior.

Optimized Signal Flow: Enables multi-directional communication for improved efficiency in diagnostics and testing.

Simplified Troubleshooting: Designed for easier identification and isolation of faults within the vehicle's electronic network.

Future-Ready Training: Prepares students for evolving automotive technologies with an industry-standard approach to CAN-BUS systems.

Applications

The CAN-BUS System Teaching Board (Cross-Line Type) is widely applicable in:

Automotive vocational schools – Ideal for hands-on training in electronic communication and diagnostics.

Technical training centers – A practical tool for understanding and troubleshooting vehicle network systems.

Industry workshops and labs – Used for research, testing, and advanced learning in automotive technology.

Why Choose Our CAN-BUS Training System?

Innovative Learning Tool

Our CAN-BUS System Teaching Board (Cross-Line Type) delivers an interactive and in-depth approach to understanding vehicle electronic networks, setting a new standard in technical education.

Customizable Solutions

We offer tailored configurations to meet the specific requirements of different training institutions, ensuring maximum adaptability and effectiveness.

Built for Durability and Safety

Manufactured with premium-grade materials and equipped with protective safety features, the system is designed for long-term, intensive educational use in demanding training environments.

With its advanced simulation capabilities and practical learning applications, this teaching board is an essential tool for mastering modern vehicle communication systems.
