Automotive Instrument System Teaching Board

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive instrument system teaching board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Automotive Instrument System Teaching Board

Product Introduction

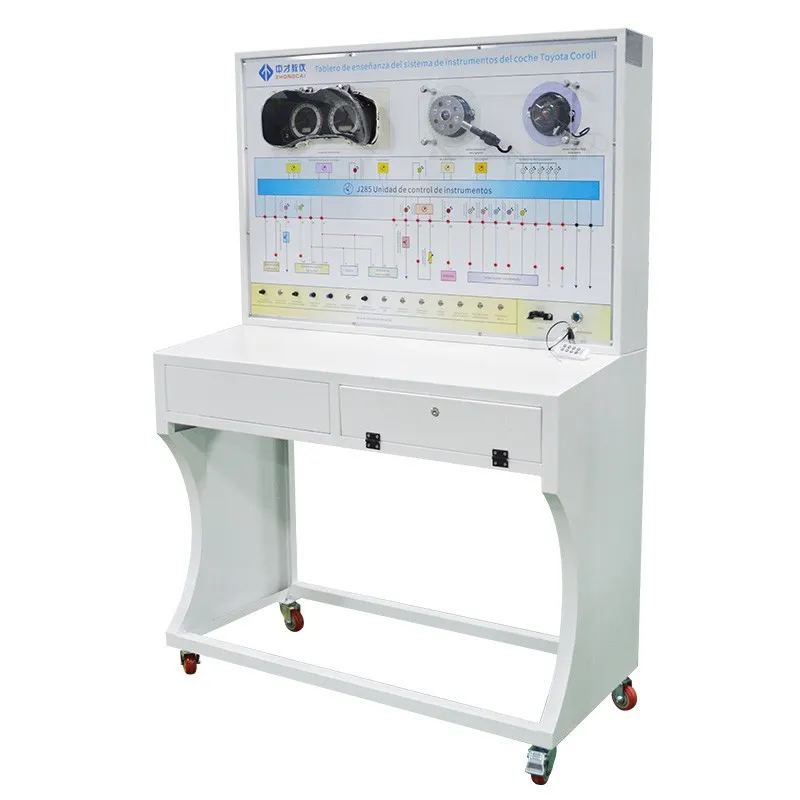

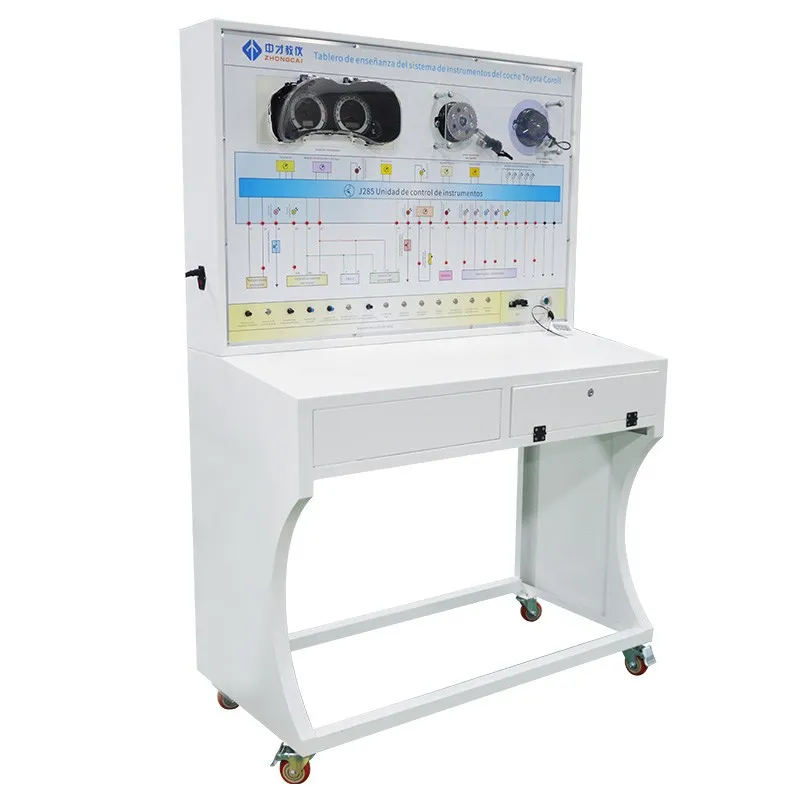

The Automotive Instrument System Teaching Board is a cutting-edge training device based on the actual Toyota Corolla automobile instrument system. It provides a vivid and comprehensive demonstration of the system's structure and working process. This teaching equipment is ideal for schools and training institutions to facilitate theory instruction and maintenance training related to automotive instrument systems.

Features

Realistic Demonstration

The teaching board integrates a fully functional automotive electronic instrument system, enabling users to observe and study its composition and operation. It controls various sensors and switches while simulating instrument signal sources, effectively showcasing the working principles of the automotive instrument system.

Durable and Educational Design

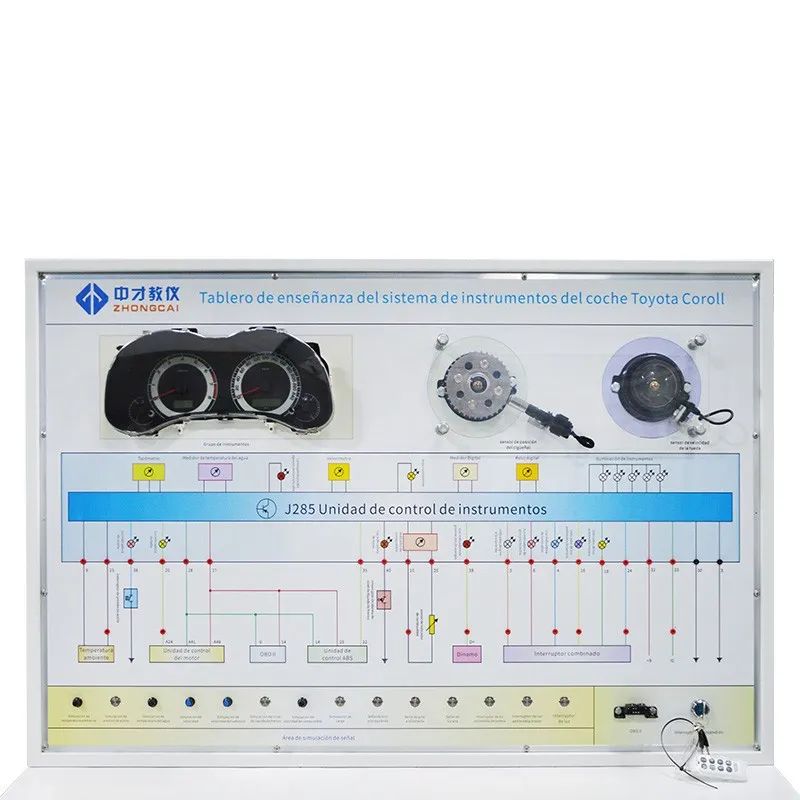

Built with high-quality aluminum-plastic panels, the Automotive Instrument System Teaching Board offers exceptional resistance to impact, pollution, fire, and moisture. The surface features a primer coating applied through a special process, ensuring durability and visual clarity. The printed circuit diagram on the panel allows students to compare the system with real components, enhancing their understanding of automotive instrument principles.

Advanced Testing Capability

Equipped with detection terminals, the teaching board facilitates direct measurement of electrical signals, such as resistance, voltage, current, and frequency, from various circuit components of the automotive electronic instrument system.

Robust Construction

The panel structure is crafted from 1.5mm cold plate stamping, providing a sleek and professional appearance. The sturdy steel frame, combined with a self-locking caster device, ensures stability and mobility. The base includes a 40cm tabletop, offering a convenient surface for tools, testing instruments, and instructional materials.

Safe and Efficient Power Supply

Operating with an ordinary 220V AC power supply, the board converts it to a stable 12V DC power supply using an internal transformer and rectifier circuit. This eliminates the need for batteries, simplifying maintenance while providing anti-short circuit protection for safe operation.

Technical Parameters

Overall Dimensions: 1240×600×1700mm (Length×Width×Height)

External Power Supply: AC 220V±10% 50Hz

Working Voltage: DC 12V

Working Temperature: -40℃～+50℃

Color: 7032

Steel Pipe Dimensions: 40×40×3mm

Cabinet Material: 1.5mm cold plate stamping, with maintenance door at the back

Educational Benefits of the Teaching Board

The Automotive Instrument System Teaching Board offers significant advantages for automotive education and training:

Hands-On Learning

Students gain practical experience with a real and operational instrument system, deepening their understanding of its functionality and maintenance requirements.

Simplified Troubleshooting

The built-in testing terminals and clearly labeled components help users identify and resolve system issues efficiently, making it an invaluable tool for teaching diagnostic skills.

Visual Understanding

The printed circuit diagrams on the panel provide a direct reference for system operation, allowing trainees to connect theory with real-world applications.

After-Sales Service

Technical Assistance

Our dedicated support team provides expert guidance for installation, usage, and troubleshooting

Warranty Coverage

A one-year warranty protects against manufacturing defects, with free repairs or replacements offered during this period.

Spare Parts Availability

We ensure the supply of original spare parts for long-term maintenance and operation of the teaching board.

User Resources

Comprehensive user manuals, video tutorials, and training materials are available to assist educators and trainees.

Customer Support

Our responsive team is ready to address any inquiries or concerns, ensuring customer satisfaction.

Insights into Automotive Instrument Systems

Automotive instrument systems provide critical information to drivers, including speed, fuel levels, engine performance, and warning signals.

Modern electronic instrument systems use advanced sensors and microprocessors to deliver accurate and reliable data.

The simulates these functions in a controlled environment, making it an essential tool for understanding and maintaining these systems in real-world applications.
