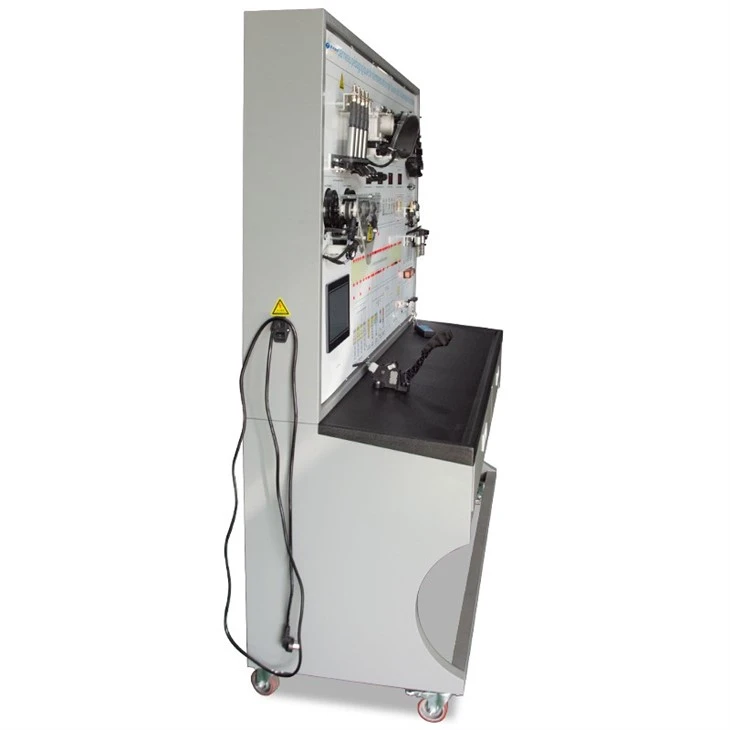

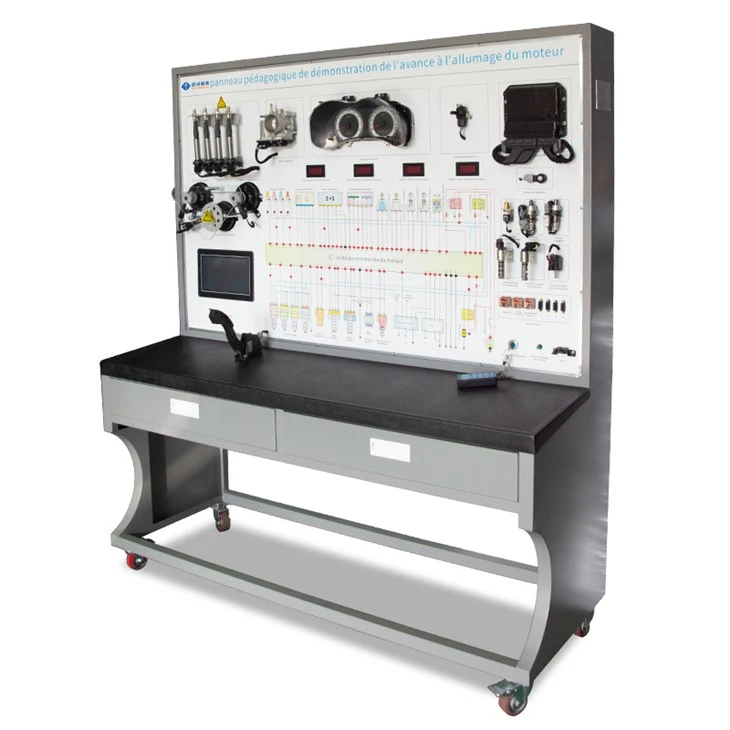

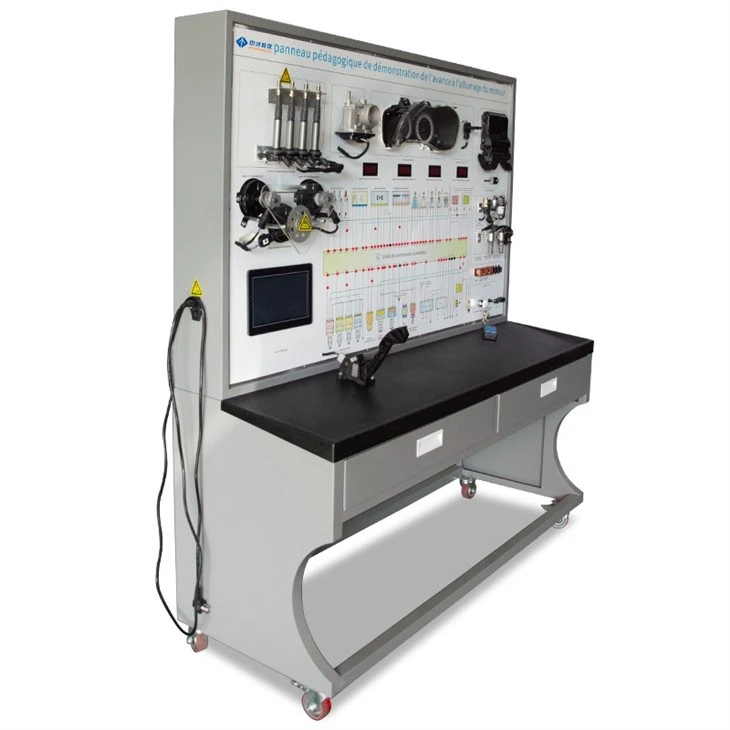

Anti-theft Ignition System Training Board

Product Introduction
The Anti-theft Ignition System Training Board is a professional Automotive Training Equipment designed for vocational schools, laboratories, and automotive education centers. It adopts a real automobile engine anti-theft system as the core demonstration platform, fully presenting the structure, components, ignition logic, immobilizer strategy, and ECU communication workflow of modern anti-theft systems.
This training board supports theoretical instruction and hands-on maintenance training, making it ideal for teaching engine anti-theft system principles and diagnostic operations.

Training Functions & Features

1.Real functional Anti-theft Ignition System capable of simulating legal and illegal key operations. When using a legal immobilizer key, the Engine ECU responds with injector triggering, ignition coil firing, spark plug ignition, and fuel pump activation. Illegal key operation will lock the ECU and disable engine functions, demonstrating real anti-theft scenarios.

2.Panel includes color wiring diagrams and system schematics, enabling learners to visually correlate circuits and components with actual physical hardware.

3.Equipped with measurement terminals for multi-signal detection including resistance, voltage, current, and frequency.

4.Built-in OBD-II diagnostic port enables fault code reading, data stream monitoring, ECU matching, parameter configuration, waveform analysis, and immobilizer key programming via universal or dedicated diagnostic scanners.

5.Board structure uses fireproof and moisture-resistant aluminum composite panel; chassis adopts welded steel with caster wheels and integrated ABS desktop for placing diagnostic instruments or documents.

6.Operates on AC 220V input with internal DC12V conversion; no battery is required.

7.Includes fault simulation modules to support training in troubleshooting, diagnostic operations, and repair procedures.

8.Dual drawers for tool storage and teaching accessories.

Technical Specifications

Dimensions (approx.): 1600 × 600 × 1700 mm

Input Power: AC 220V ±10% 50Hz

Working Voltage: DC 12V

Operating Temperature: -40°C ~ +50°C

Steel Pipe Frame: 60 × 40 × 3 mm

Panel Sheet: 1.5mm cold-rolled plate

Caster Wheels: 100 × 60 mm

Professional Tooling Package (Included)
The Anti-theft Ignition System Training Board comes with an integrated automotive tooling system to support hands-on training in component disassembly, data measurement, and diagnostic validation.
Tooling system uses ABS molding to ensure organized storage and accurate slot positioning, preventing loss and improving workflow efficiency during instruction and practical sessions.
Included tools:

Flat screwdriver (1pc)

Phillips screwdriver (1pc)

Test light (1pc)

Digital multimeter (1pc, anti-burn chip + plated test leads, ±0.5% accuracy)

Consumable kit (1 set)

Competitive Advantages (Compared to Similar Suppliers)

Real functioning anti-theft system instead of passive display boards.

Complete tooling package included; competitors often do not supply tools.

Includes diagnostic interface + ECU matching + fault simulation.

Full multimedia courseware + videos matching the hardware 1:1 for vocational training.

No battery required; safer AC → DC internal conversion.

More suitable for automotive education laboratories & technician training programs.
