Electrically Controlled Air Suspension Trainer (LS400)
Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of electrically controlled air suspension trainer (ls400) in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.
1. Product overview

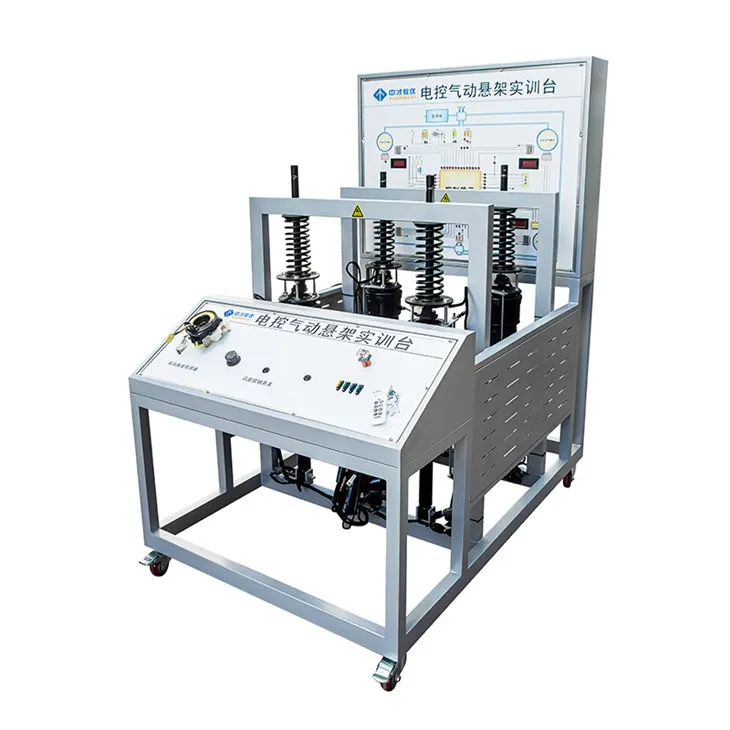

The Electrically Controlled Air Suspension Trainer (LS400) is based on Toyota LS400 automobile air suspension system, fully demonstrating the composition structure and working process of automobile air suspension.
2. Features
1. Real and operational automobile air suspension system, fully demonstrate the composition structure of automobile air suspension system.
2. Operate the height control switch or adjust the height of any suspension, the air suspension ECU controls the compressor, height control solenoid valve, suspension shock absorber hardness controller and other executive components to complete the work of the air suspension height and shock absorber hardness The adjustment is a real demonstration of the working process of the car's air suspension system.
3. The measurement panel of the training platform is painted with a color inkjet circuit diagram, which is made of 4mm thick high-strength aluminum-plastic board UV inkjet. It has large temperature difference, wear resistance, moisture resistance, corrosion resistance, non-deformation, long service life, and color Bright, not easy to fade and other characteristics; students can intuitively compare the circuit diagram and the actual object, understand and analyze the working principle of the automobile air suspension system.
4. There are detection terminals installed on the panel of the training platform, which can directly detect the electrical signals of each circuit element of the air suspension system, such as resistance, voltage, current, frequency signals, etc.
5. The panel of the training platform is equipped with a fault indicator lamp and a diagnostic socket, and the system's self-diagnosis function can be realized by flashing the fault code through the short wire.
6. The Electrically Controlled Air Suspension Trainer (LS400) is built with international standard aluminum alloy profiles. It has the characteristics of light weight, high strength, corrosion resistance and long life. It does not need to go through the spraying process, is more environmentally friendly, and looks more beautiful and high-end. The bench has self-locking casters. The device is mobile, safe, reliable, sturdy and durable.
7. Equipped with fault setting system.
3. Basic configuration requirements (each unit)
|
Number |
Name |
Specification |
Unit |
QTY |
|
1 |
Inspection control panel |
Equipped with various detection terminals and color circuit diagrams |
set |
1 |
|
2 |
Air suspension control computer (ECU) |
pcs |
1 |
|
|
3 |
Diagnostic seat |
set |
1 |
|
|
4 |
Body Control Computer (ECU) Compressor |
pcs |
1 |
|
|
5 |
No. 1 height solenoid valve |
pcs |
1 |
|
|
6 |
No. 2 height solenoid valve |
pcs |
1 |
|
|
7 |
Height control relay |
pcs |
1 |
|
|
8 |
Height control switch |
set |
1 |
|
|
9 |
Left and right front suspension control actuator |
set |
1 |
|
|
10 |
Front left and right control sensors |
set |
1 |
|
|
11 |
Left and right rear suspension control actuator |
set |
1 |
|
|
12 |
Left and right rear control sensor |
set |
1 |
|
|
13 |
Digital frequency meter |
set |
1 |
|
|
14 |
Various analog switch signal devices |
set |
1 |
|
|
15 |
jack |
2T |
set |
1 |
|
16 |
Steel ruler for height measurement |
set |
1 |
|
|
17 |
Fault setting system system |
set |
1 |
|
|
18 |
Mobile platform (with self-locking caster device) |
1300×1000×1800mm(L×W×H) |
set |
1 |
