Automobile Rear Drive Chassis Training Board

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automobile rear drive chassis training board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Description：

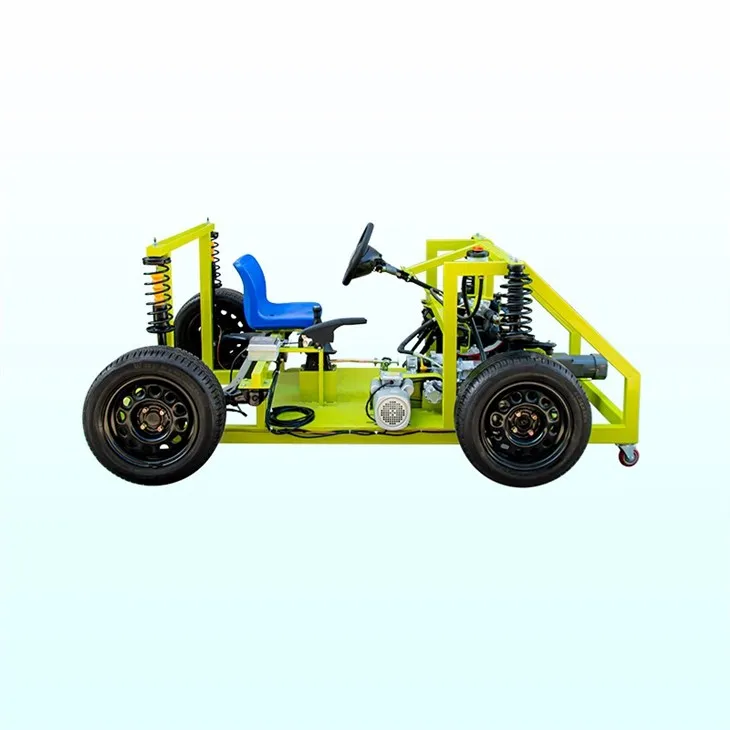

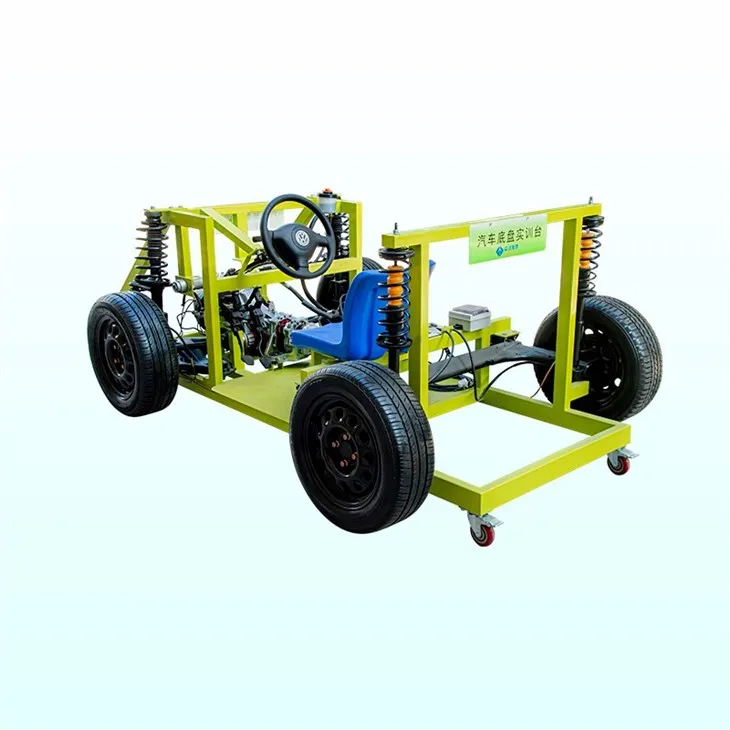

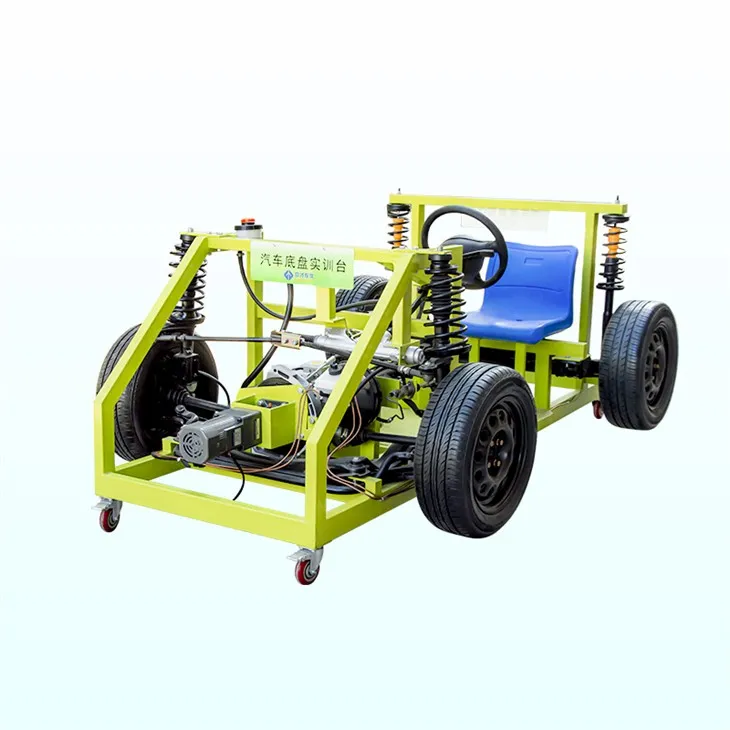

The Automobile Rear Drive Chassis Training Board machine is manufactured based on the systems of rear-powered car chassis, showing the composition and structure of each system in the chassis of a car and the operation process. It is mainly used in automobile vocational schools, automobile repair universities, automobile research and development specialties, etc. To meet the teaching needs of students for theoretical knowledge and maintenance practical training of each system of the chassis.

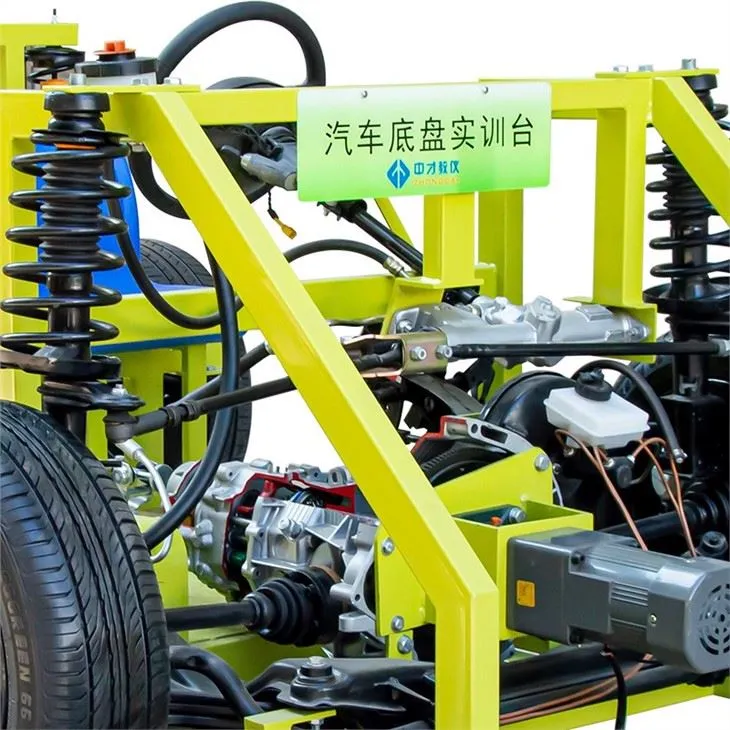

The main structure of this machine has front and rear suspension system, steering system, transmission system, manual transmission and gear mechanism, braking system and other systems, movable table mounted on casters, etc.

Functional features：

1.  Installed with the chassis system of the real car (including front and rear suspension, steering system, transmission system, manual transmission and gear mechanism, braking system), showing the composition structure and operating principle of each system of the car chassis.
2. Students can start disassembly training and competition for each system of the car chassis.
3. Automobile Rear Drive Chassis Training Board is dissected and can dynamically demonstrate the operation principle of the variator. Reduction motor input power, the transmission can be shifted and dynamic test, four wheels can simulate the slow speed driving state.
4. The special motor drives the directional power pump, which can truly show the working state and process of power steering.
5.  The base of the training table is made of welded steel structure, the surface is treated with color spraying technology, with casters for flexible movement, casters have self-locking function, convenient locking, safe, reliable, durable.
6. The machine is installed with leakage protection switch, safer to use.

Technical specifications：
Input power: 220V

Working temperature: -40℃～+50℃
Motor: 220V/250W 15r/min
Weight: 500KG
Size: 3500mm*2000*1200
