Auto Gearbox Education Equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of auto gearbox education equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

I. Product introduction

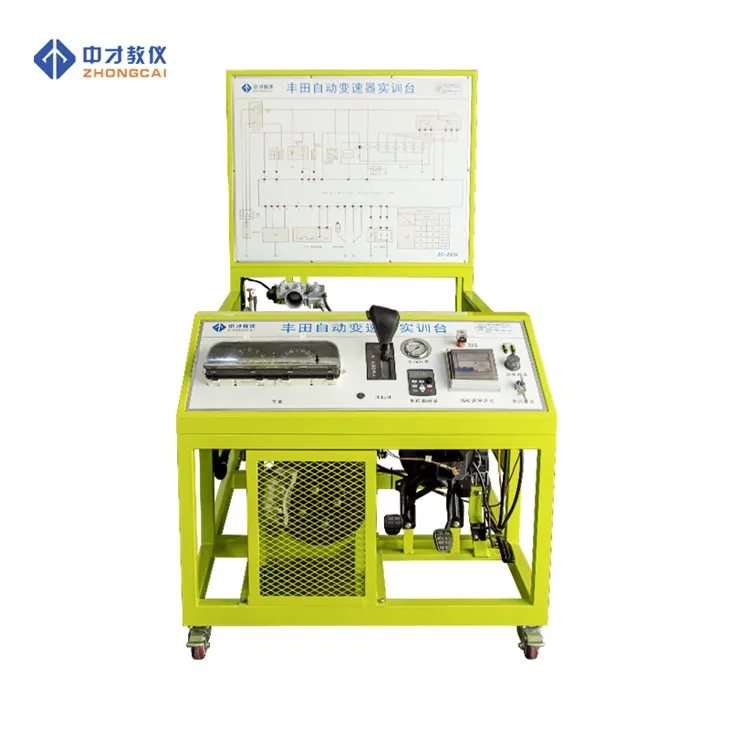

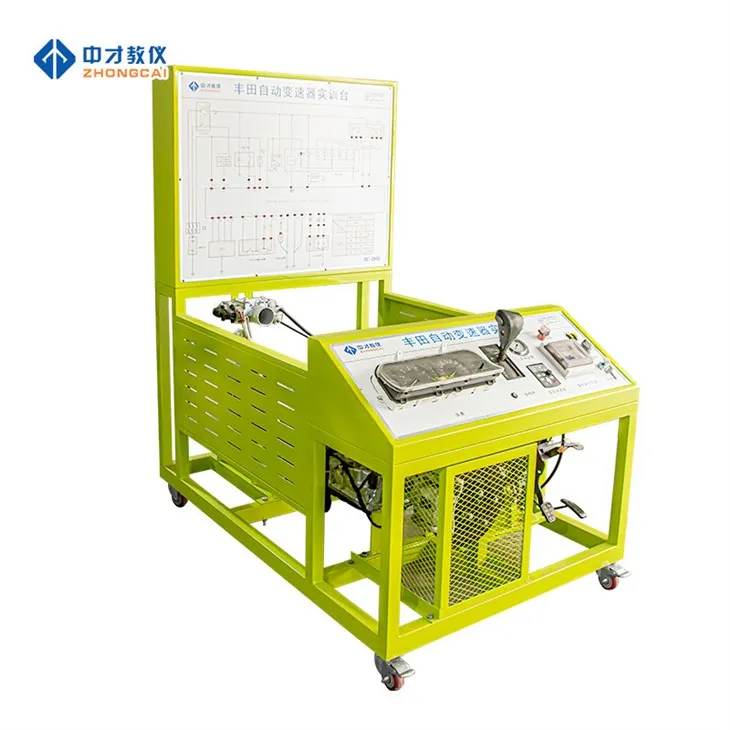

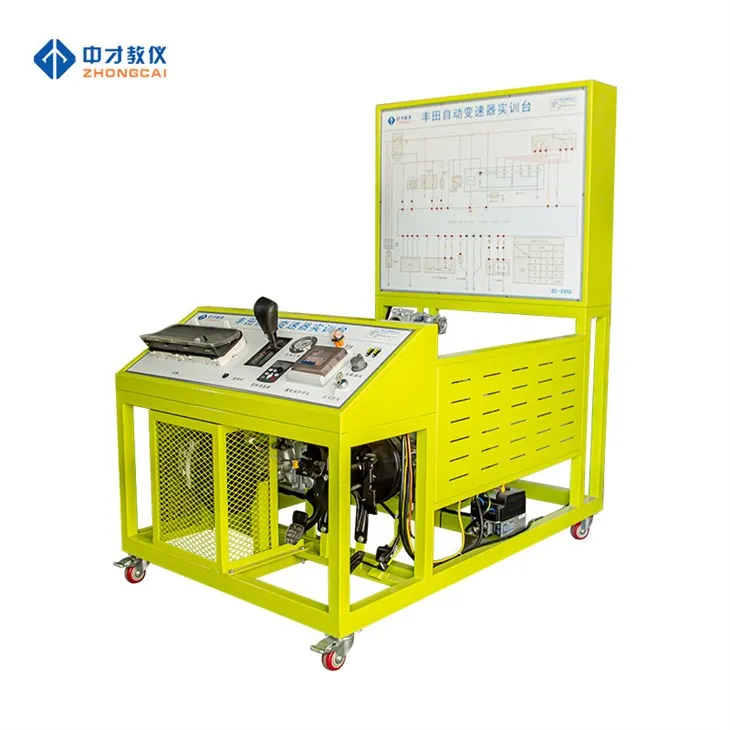

This devise uses the Toyota A340E's original electric auto gearbox education equipment as the base, controlling the speed of the three-phase drive as the power source, possibly the automatic transmission display, switches and other test working conditions. This is a real life demonstration showing the structure and principle of an electronically controlled automatic transmission.

It is suitable for all types of universities and schools for theoretical and maintenance of electric automatic transmissions for practical learning. The teaching function of the curriculum is complete, simple, safe, reliable and beautiful.

II. Constituent structure

Toyota in the collection, management unit A340E gear shift lever automatic transmission, in the collection, cooling device transmission fluid inspection measuring instruments, hull, three-phase motor control speed, throttle, engine crankshaft sensor and signal acquisition panel, pressure gauge, define the system fault diagnosis chair original automotive circuits and test terminals mobile booth, etc. Includes manual and operation manual. Each sensor and actuator is equipped with a digital indicator, while the console is fitted with a master oil manometer, universal stationary roller, stainless steel hand protector, thermal protection and rotating parts.

III. Functional characteristics

1. The normal auto gearbox education equipment works, and the diode displays the working state of the solenoid valve.

2. The fault simulation system can simulate the actual operating conditions and set different automatic transmission faults.

3. The arrow type pressure gauge shows the pressure value of the main pipe.

4. There are colored sprayer patterns on the auto gearbox education equipment, and the circuit on the sprayer is protected by glass, so that students can visually compare the circuit with the actual engine, identify and analyze the working principle of the control system.

5. Course panel installation test terminal, can directly identify the panel on the sensor and implementation mechanism, such as resistance, voltage, current, frequency, wave signal, etc.

6. Equipped with the original car diagnostic socket, which can use computerized diagnostic equipment to control electronic transmission control systems, read fault codes and data streams, and more.

7. The equipment is equipped with a power switch and other defensive equipment, such as rotating parts protection.

8. Auto gearbox education equipment can be used for a variety of practical training programs. The gearbox can move/rise/fall automatically, as can other practical tests.

9. Learn tabletop welded steel construction, paneling plate template, paneling plate and base can be separated, tabletop is mixed with paint, there is a universal automatic closing roller device.

10. External dimensions :1500 mm X 1000 mm X 1700 mm
