Passat Auto Gearbox Education Equipment

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of passat auto gearbox education equipment in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Profile

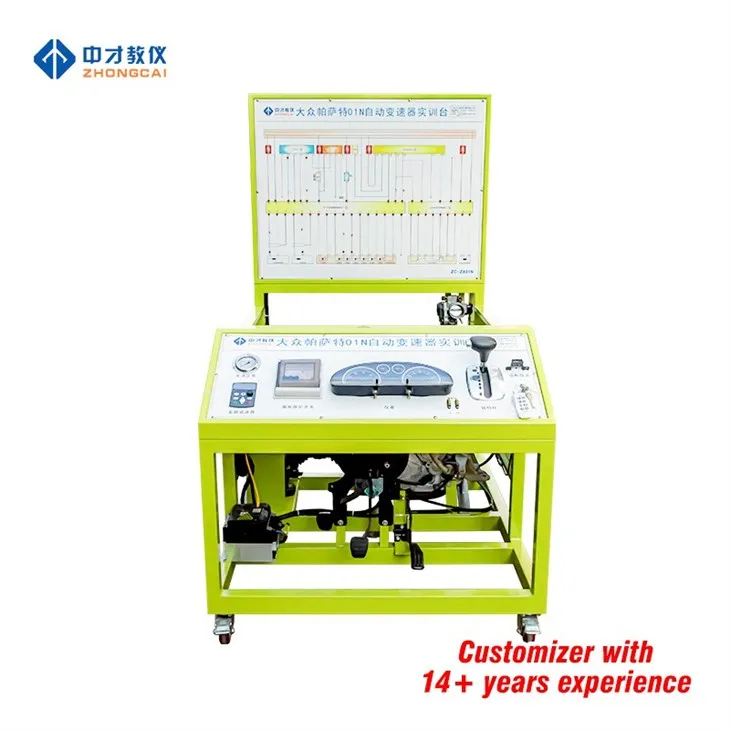

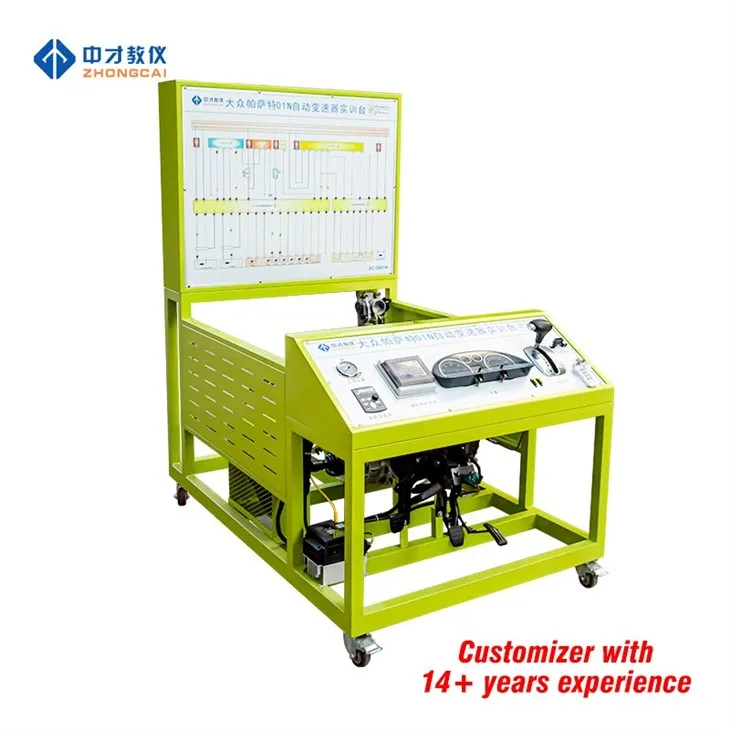

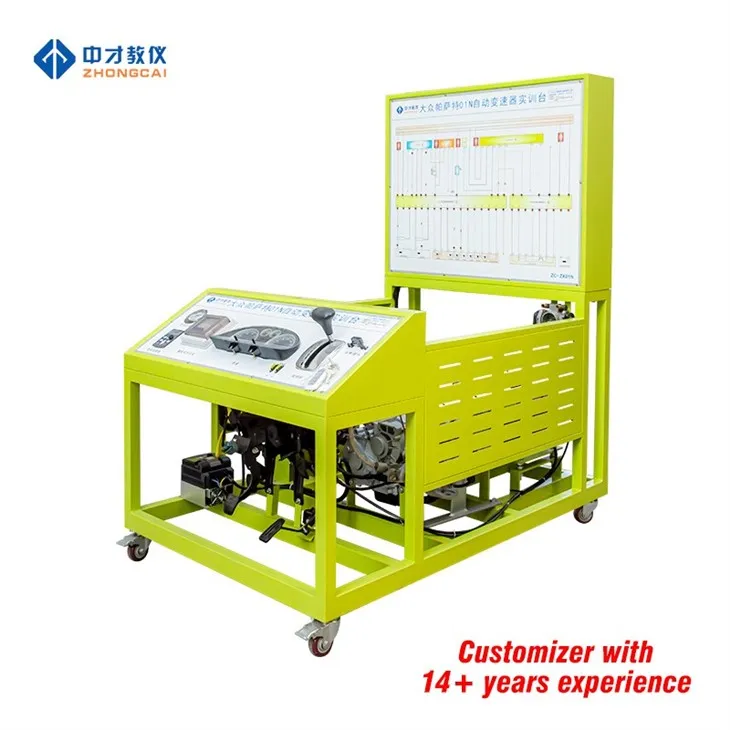

       Passat auto gearbox education equipment adopts 01 N electronically controlled automatic transmission with three-phase induction motor as the power source, which realizes the test of automatic transmission with various working conditions such as gear display, neutral start, forward and backward. The system can reflect the working principle of the system.

        Passat auto gearbox education equipment can meet the teaching requirements of auto automatic transmission principle, and also meet the requirements of school maintenance training.

The functional characteristics of the electric automatic transmission training bench.
　　1. A three-phase induction motor with adjustable speed is used to drive the system. The composition and working process of the system are fully verified by actual operation of the conditions of gear display, neutral start, forward gear operation and reverse gear operation.
       2. The electric motor directly drives the transmission, and the motor and transmission are fixed directly by coupling.
       3. To avoid overloading the motor, set the rated current as stated on the motor nameplate with a frequency converter and set the motor with an electronic thermal overload relay, or set the acceleration/deceleration curve with an S-Curve frequency converter to avoid vibration during start/stop.
       4. The training platform is composed of high-grade aluminum and plastic panels that are resistant to damage, pollution, fire and moisture, and painted with a special primer; a colorful wiring diagram that will not lose its color is printed on the panel; so that trainees can recognize and analyze the working principle of the automatic transmission device through the comparison of circuit graphics and actual products.
       5. The training table panel is installed with test terminals to directly detect electrical signals such as resistance, voltage, current, frequency signals, etc. from the sensor, actuator and control unit pins on the panel.
       6. On the control panel of the training bench, there are car gauges and pressure gauges, which can display the engine speed, automatic transmission gears, main oil pressure, and other data.
       7. A diagnostic socket is provided on Passat auto gearbox education equipment, to which a special or common car decoder can be connected, thus enabling a series of automatic diagnostics such as reading fault codes and clearing fault codes for the electronic control system of this automatic engine transmission device. On the training bench, a device capable of real-time monitoring of the operation of the solenoid valve of the electric vehicle for electric vehicles is equipped.
       8. Training bench is equipped with motor shield, output shaft shield and other safety protection equipment
       9. Equipment panel cabinet: 1.5 mm cold plate stamping and forming, maintenance door back; will base with steel structure welded, surface treated with spray technology, self-locking casters, flexible movement, safe, reliable and durable.
