Electric Vehicle Training

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of electric vehicle training in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

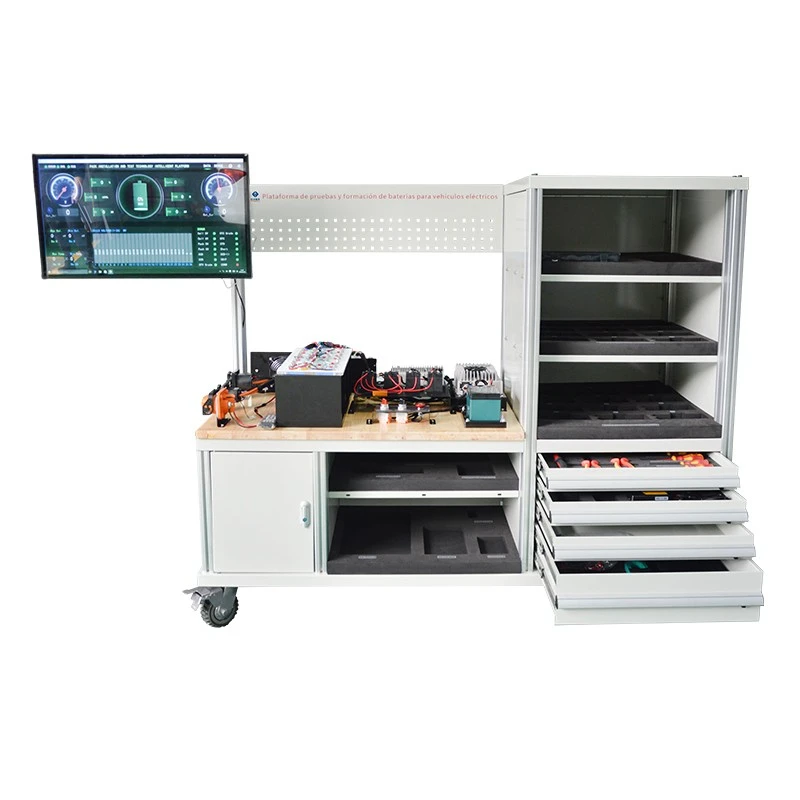

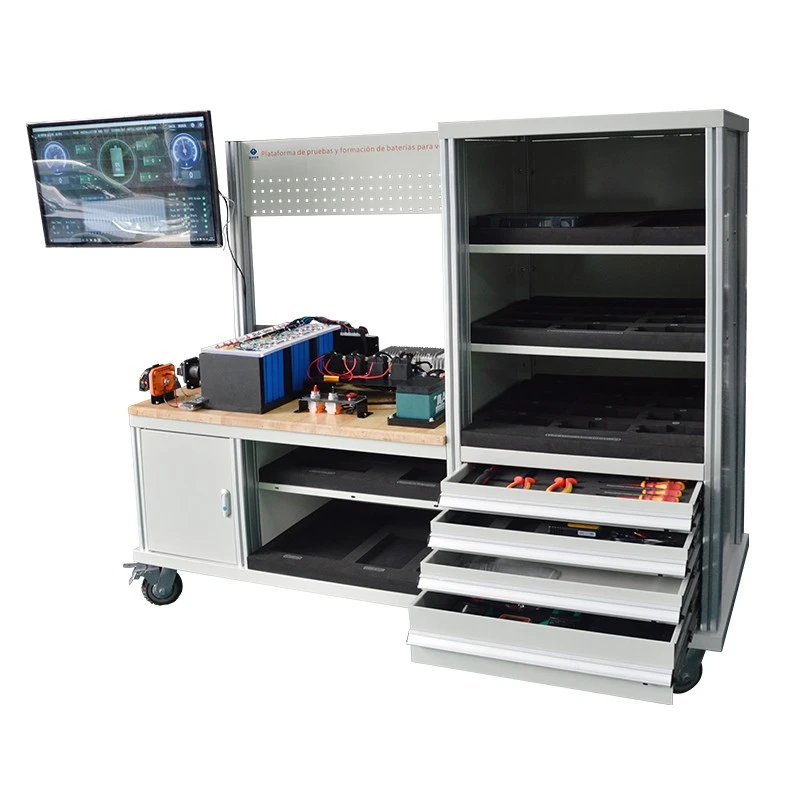

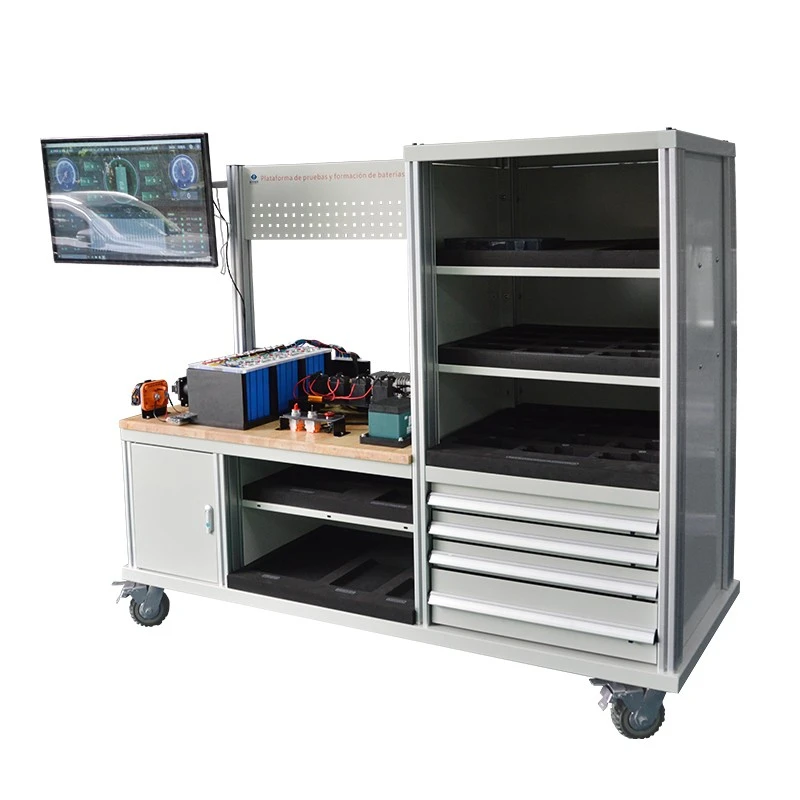

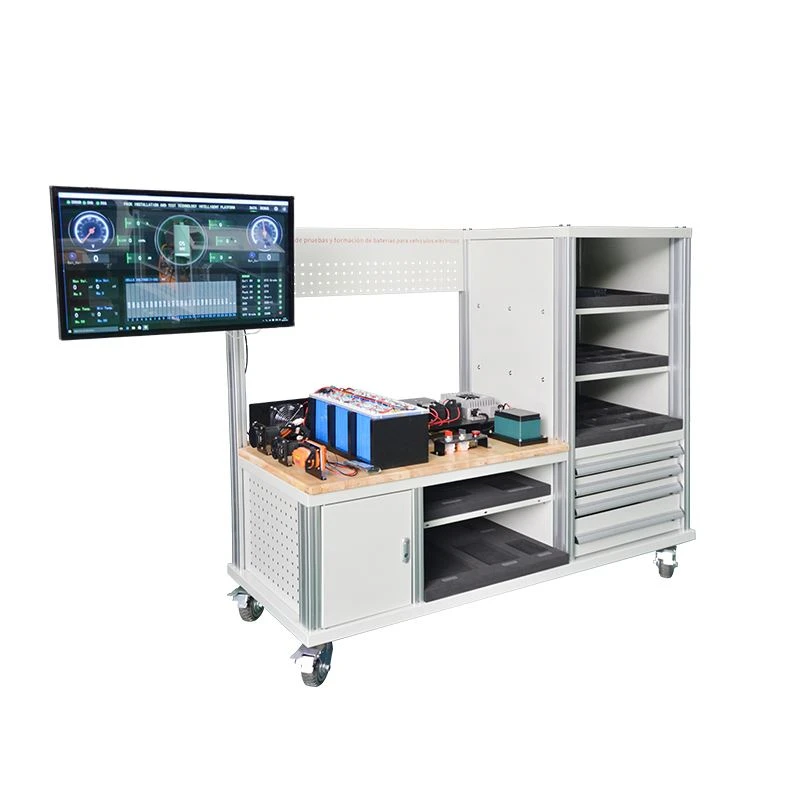

The Electric Vehicle Training for Battery Pack Testing Platform is designed for vocational education, focusing on the practical training of power management systems in new energy vehicles. This platform allows for comprehensive testing, including power management core component detection, individual cell sorting, and battery module assembly.

1.Key Features

Insulated Workbench: A dedicated workbench for assembling components and wiring connections.

Lithium Iron Phosphate Batteries: The platform supports repeated assembly training with specialized bases and terminals.

Automotive-grade Maintenance Switch: Facilitates training in assembly and wiring for maintenance switches.

BMS Management System: Collects real-time data on cell voltages and temperatures, displayed on a multimedia terminal.

Internal Resistance Testing: Offers sorting and balancing training for individual batteries.

Standard Charging Interface: Includes a national standard charging interface for practical charging exercises.

High-Voltage Contactor Training: Provides hands-on training for high-voltage contactor installation and wiring.

2.Training Objectives

Sorting individual cells.

Assembling battery modules.

Testing power management components.

Wiring of battery management systems.

3.Configuration List

4.All-in-One Machine Requirements

Display Specifications: ≥ 32-inch touch all-in-one computer

Operating System: Windows 10

CPU: Intel I5-3247U-TI

Memory: No less than 8GB DDR3

Storage: Solid State Drive (SSD) with a minimum capacity of 128GB

HDMI Output: HDMI 2.0a standard display interface, supports up to 4K output

USB Ports: 2 x USB 3.0 and 2 x USB 2.0 interfaces

WiFi Configuration: Built-in high-performance SDIO interface WiFi module, supports IEEE 802.11 b/g/n/ac

Ethernet Port: 10/100/1000Mbps adaptive Ethernet RJ45 port

Input Power: AC 100-240V, 50Hz

5. Product Specifications and Requirements

Battery Pack Voltage: DC 76.8V

High Voltage Contact Specifications: Battery pack output 120A; charging and pre-charging 40A

Operating Voltage: DC 12V

Integrated Package for Electric Power Battery Training

The Integrated Package for Electric Power Battery Assembly, Adjustment, and Auxiliary Teaching includes essential disassembly tools, testing instruments, and training consumables. These measurement tools and consumables are specifically configured to align with the training tasks, which reduces procurement costs and simplifies management. As a result, this integration significantly improves the efficiency of equipment usage.

Additionally, the high level of integration among training platforms, measurement tools, consumables, supporting training software, and teaching materials enhances the effectiveness of both theoretical and practical education. This comprehensive approach ensures that students gain valuable hands-on experience, preparing them for careers in the rapidly evolving field of electric vehicle technology.

https://www.zcequipment.com/news/gess-dubai-education-exhibition-and-conference-81268422.html

The Electric Vehicle Training for Battery Pack Testing Platform  not only equips students with practical skills but also enhances the effectiveness of integrated theoretical and practical teaching. By fostering a comprehensive educational environment, students are prepared to meet the challenges of the evolving automotive industry.
