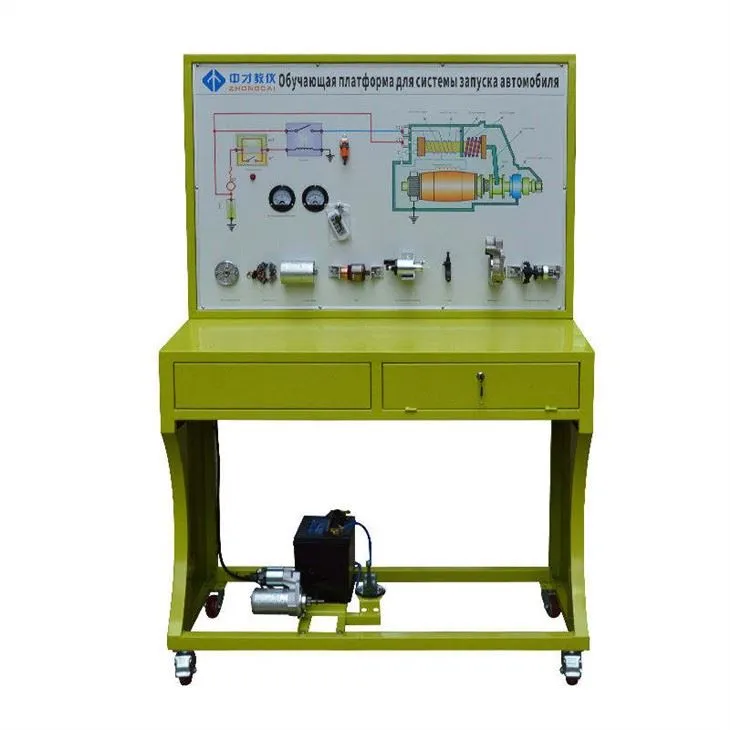

Automotive Starting System Training Boards

The equipment uses the car starting system as the basis to fully demonstrate the starting system composition and working process. It is suitable for the teaching needs of starting system theory and maintenance training for middle and high vocational technical colleges, general education colleges and training institutions.

Main configuration:

Lithium iron phosphate battery pack and management system (with CAN communication, including 24 single cells, relay, charging relay, precharge relay, precharge resistor, Hall current sensor, maintenance switch, insurance, charging interface, discharge interface, low voltage Control interface, power battery collection module, BMS battery management system main control module, 7-inch LCD screen), drive motor and running part, electronic throttle assembly, shift mechanism assembly, instrument (with CAN communication), gearbox, Left and right drive shafts, left and right front wheel disc brakes, magnetic powder brakes (left and right), manual tension controller, booster with pump assembly, vacuum pump assembly, electric vacuum booster brake system, vacuum pressure sensor, vacuum tank assembly, national standard charging socket With charging gun, car charger (with CAN communication), DC-DC module, fault setting system, auxiliary battery (12V45AH), battery power off switch, emergency stop switch, upper computer software and data line (motor and battery control unit) , Mobile platform built with all-aluminum alloy profile (1500×1000×1700mm, with self-locking caster device, principle panel with installation detection terminal 948×898mm), fault inspection system, equipment operation manual.

Features:

1. A color inkjet circuit diagram is drawn on the measurement panel of the training platform. It is made of high-strength acrylic sheet with a thickness of 8mm. It is resistant to large temperature differences, wear-resistant, moisture-proof, corrosion-resistant, not easily deformed, has a long service life, and has bright colors. Not easy to fade and other characteristics.

2. There are detection terminals installed on the panel of the training platform, which can directly detect the electrical signals of the sensors, actuators, and transmission control unit pins on the panel, such as resistance, voltage, current, and frequency signals.

3. The training platform is built with international standard aluminum alloy profiles. It has the characteristics of light weight, high strength, corrosion resistance and long life. It does not need to be sprayed, it is more environmentally friendly, and the appearance is more beautiful and high-grade. The device is flexible in movement, safe, reliable, durable.
