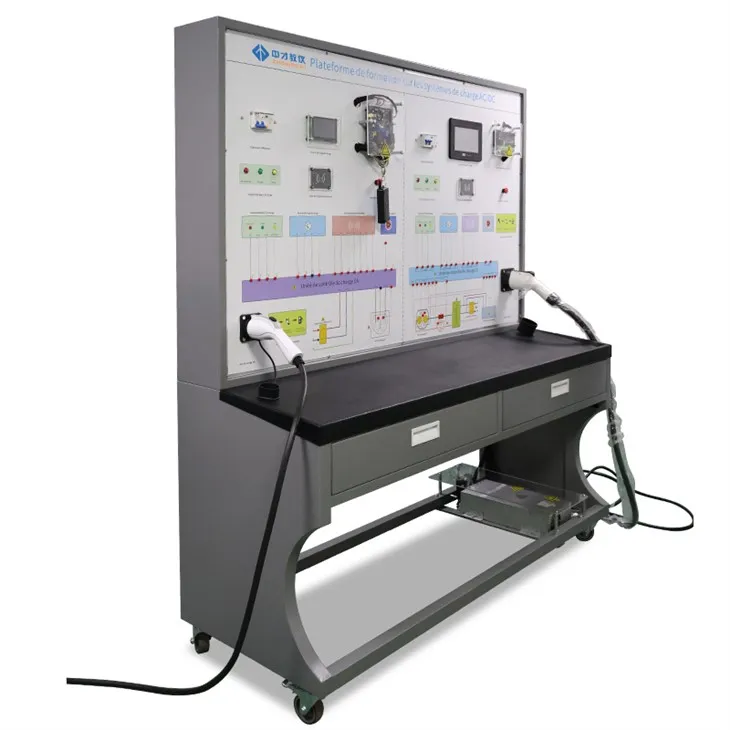

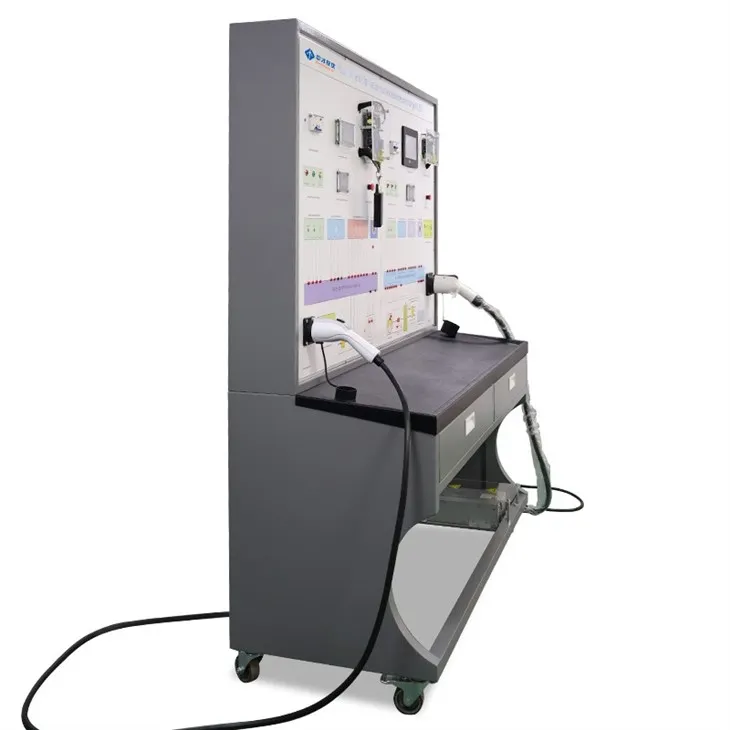

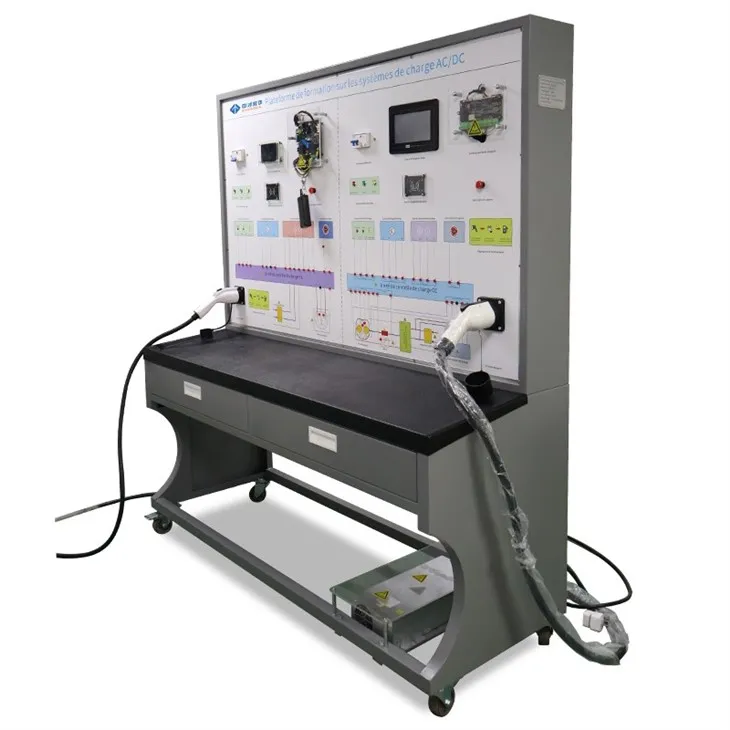

AC/DC Charging Training Board

Product Introduction

The AC / DC Charging Training Board is developed based on a new national standard AC and DC electric vehicle charging pile system. It consists of a mobile training frame and a functional teaching panel, accurately reproducing the structure, working principles, and operation process of electric vehicle charging systems.

This training equipment is designed to meet the teaching and practical training needs of electric vehicle charging management systems, including system structure recognition, working principle analysis, operation training, and fault diagnosis. It is widely suitable for vocational colleges, technical schools, and automotive training institutions.

System Composition

1. AC Charging Pile System

The AC charging management system is composed of:

Leakage protection switch

AC charging controller

Charging status indicator

Display screen

Card reader module

Charging card

Emergency stop switch

AC charging gun and charging gun holder

2. DC Charging Pile System

The DC charging management system is composed of:

Leakage protection switch

DC charging controller

Charging status indicator

Display screen

Card reader module

Charging card

Emergency stop switch

DC charging gun and charging gun holder

Product Functions & Features

Real Working Condition Demonstration
The training board fully demonstrates the actual working characteristics of AC and DC electric vehicle charging systems. Charging is initiated by card swiping, and real-time charging data is displayed on the screen, allowing students to clearly understand the charging process, system principles, equipment operation, and basic maintenance.

Comprehensive Safety Protection
The system is equipped with an emergency stop switch, enabling quick power cutoff in emergency situations to ensure safe operation during teaching and training.

High-Durability Teaching Panel
The panel is made of high-grade aluminum-plastic material, featuring impact resistance, pollution resistance, fire resistance, and moisture resistance. Students can intuitively compare circuit diagrams with actual components to analyze system structure and working principles.

Integrated Testing Terminals
Multiple testing terminals are installed on the panel, allowing direct measurement of AC/DC charging system signals, including:

Resistance

Voltage

Current

Frequency
This design supports hands-on electrical testing and diagnostic training.

Ergonomic and Robust Structure Design

Panel formed from 1.5 mm cold-rolled steel, ensuring a neat and professional appearance

Base frame made of welded steel structure with surface coating treatment

Equipped with self-locking casters for easy movement and secure positioning

Integrated approximately 40 cm ABS anti-slip and anti-static desktop, suitable for placing documents and light testing instruments

Built-in Tool Storage Drawers
Two self-absorbing drawers are provided, one of which is used for storing commonly used tools, improving training efficiency and organization.

Technical Parameters

Frame dimensions: approx. 1600 × 600 × 1700 mm

Charging pile type: AC charging pile / DC charging pile

Rated power: 7 kW

Output current: ≤ 32 A

Input voltage: 220 Vac ±20%

Communication interfaces: RS485, Ethernet, GPRS wireless, CAN

Protection level: IP54

Our Unique Advantage 1: Professional Testing Tools Included

This training board is supplied with a professional integrated tool system, which is not standard with many competitors' products, providing complete support for hands-on teaching.

1. Integrated Tool System

One-piece ABS vacuum-formed design

Customized slots based on tool and instrument shapes

Centralized storage to prevent loss or damage

Significantly improves training efficiency and standardization

2. Testing Instruments

Smart digital multimeter with anti-burn chip and gold-plated test leads, accuracy ±0.5%

Test lamp made of high-voltage insulated material, ensuring safety and reliability

3. Tool List

Flat screwdriver × 1

Phillips screwdriver × 1

Test lamp × 1

Digital multimeter × 1

Consumables × 1 set

Our Unique Advantage 2: Complete Teaching Resources Included

In addition to hardware, this product is delivered with exclusive teaching resources, achieving an integrated solution of equipment + tools + curriculum.

1. Instructional Videos

Micro-course format covering disassembly, operation, and fault diagnosis

Video resolution ≥ 1080P, frame rate ≥ 30 fps

Supports multi-terminal playback for classroom and after-class learning

2. Teaching Courseware Features

Courseware is precisely matched to this training board

Includes real equipment photos, structural diagrams, and operation interface screenshots

Clearly marks key components, buttons, and wiring terminals

Training steps strictly follow the actual operating procedures of the equipment

3. Course Content Includes

Overview and system recognition of the training board

Principles of core components such as controllers, sensors, and actuators

Basic operation and testing training using multimeters and test lamps

Special function training modules and common fault diagnosis

Practical exercises and skill assessment modules
