BYD E5 vehicle frame
https://www.zcequipment.com/new-energy-automotive-training-equipment-kit/new-energy-automotive-trainers/six-sets-of-new-energy-vehicle-training.html

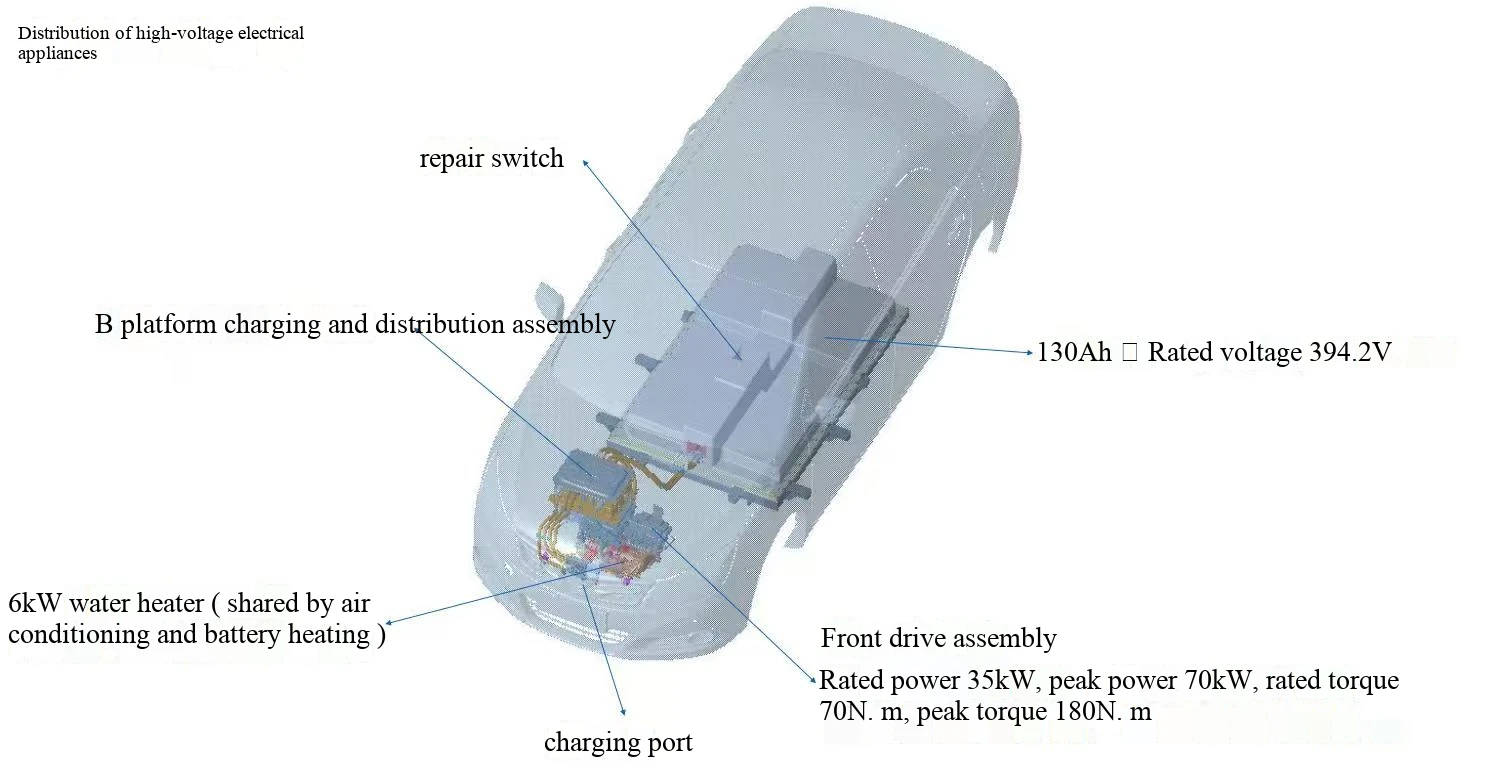

High-voltage electrical equipment distribution
Basic parameters of the power battery pack

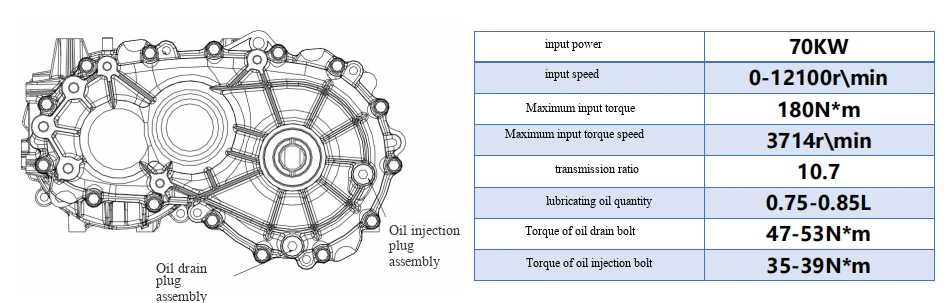

Basic parameters of the powertrain

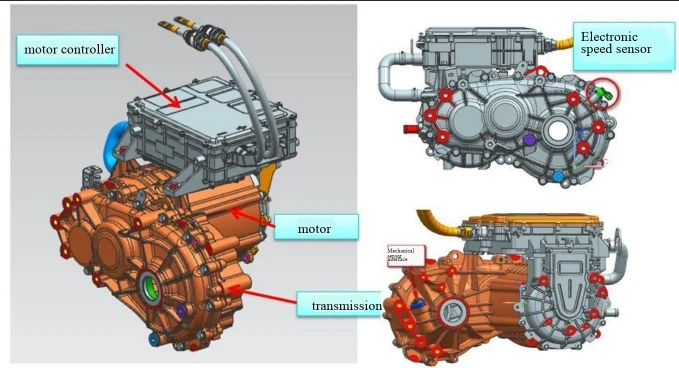

The 2019 BYD E5's powertrain uses a three-in-one structure, combining the motor controller, drive motor, and main reducer. The motor control high-voltage harness is connected internally, and only high-voltage DC is supplied externally, which greatly saves on wiring costs and represents the mainstream development direction of electric vehicle powertrains.
