Car Airbag System Teaching Board

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of car airbag system teaching board in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Product Introduction

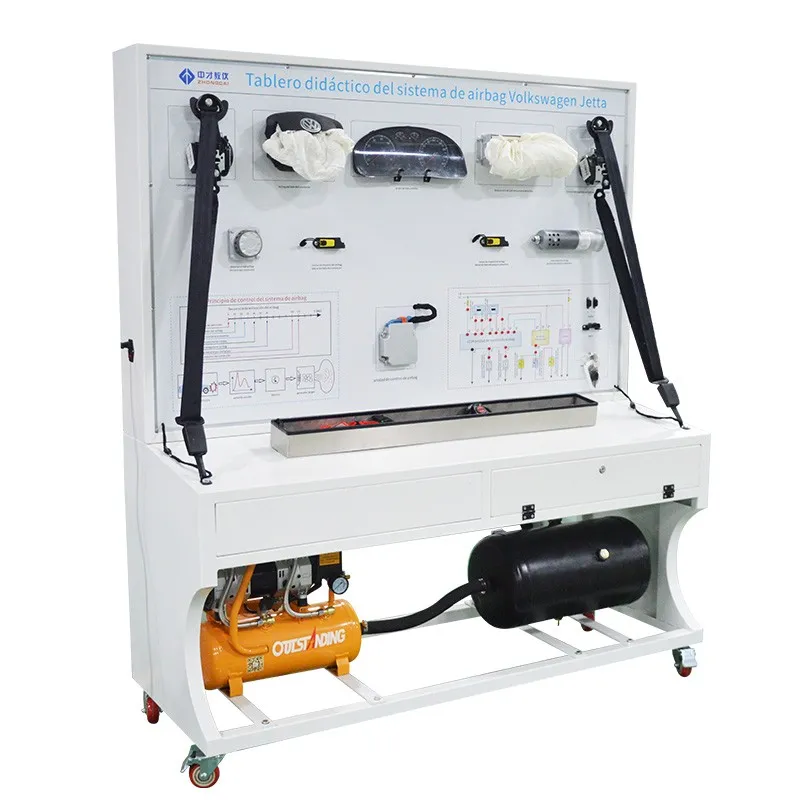

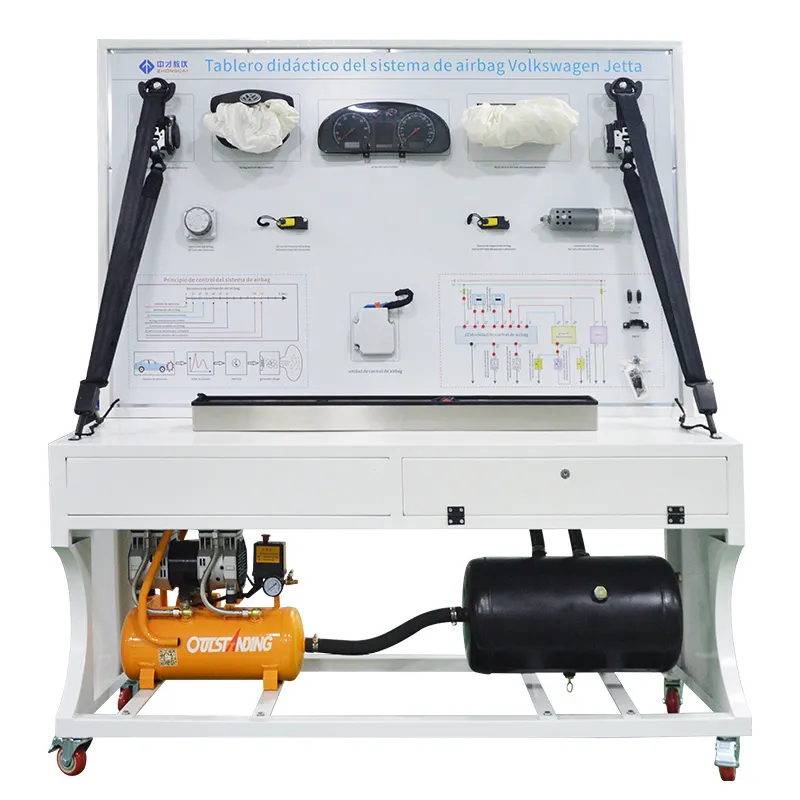

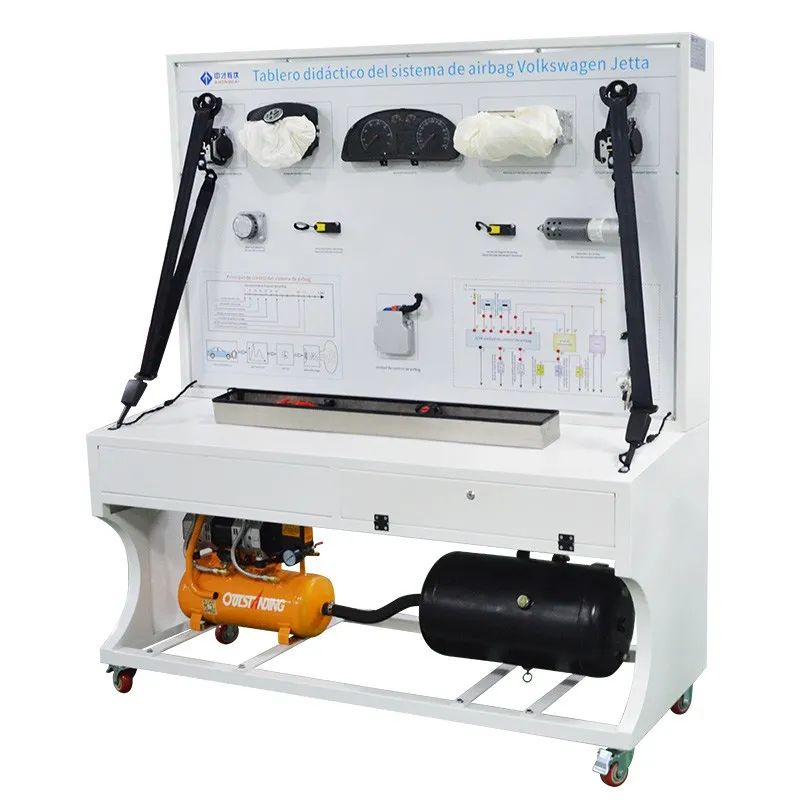

The Car Airbag System Teaching Board is a state-of-the-art training tool that uses real automobile airbag system components to demonstrate its structure and working process. It is designed for schools, training institutions, and automotive education centers to meet the teaching needs of airbag system theory, practical training, and maintenance.

Additionally, the product includes comprehensive after-sales support, ensuring users receive professional guidance, technical assistance, and prompt resolution of any issues that may arise during use.

Functional Characteristics

Realistic System Simulation

The teaching board integrates an operational airbag system that accurately displays its structure and working principles. During a simulated collision, the airbags on both sides rapidly inflate, providing a clear and engaging demonstration of how the system operates.

Durable Panel Design

Constructed from 4mm thick aluminum-plastic plate, the panel is resistant to corrosion, impact, pollution, fire, and moisture. It is treated with a primer spray process and printed with high-quality, fade-resistant circuit diagrams, allowing students to compare diagrams with physical components for better comprehension.

Integrated Detection Terminals

The panel features detection terminals, enabling students to directly measure key electrical parameters such as resistance, voltage, current, and frequency, enhancing their diagnostic skills.

Diagnostic Interface

Equipped with a diagnostic connector,supports connections to specialized or universal vehicle decoders for fault code reading, clearing, and other diagnostic operations.

Safety and Power Efficiency

The teaching board operates on a safe DC 12V power supply, derived from a standard AC 220V power source through internal rectification. This eliminates the need for a battery and includes short-circuit protection for added safety.

Technical Specifications

Overall Dimensions: 1240×600×1700mm (Length×Width×Height)

External Power Supply: AC 220V±10% 50Hz

Operating Voltage: DC 12V

Operating Temperature: -40℃ to +50℃

Frame Material: Steel Pipe, 60403mm

Cabinet Material: 1.5mm cold plate stamping

Casters: 100×60mm self-locking

Educational Benefits of the Car Airbag System Teaching Board

Understanding Airbag Systems

Airbags are a critical part of a vehicle's passive safety system, designed to protect passengers during collisions. The system uses sensors to detect impact severity and trigger the rapid inflation of airbags to cushion occupants, reducing injury risk.

This teaching board helps students explore key components like sensors, control units, and airbag deployment mechanisms in a practical and interactive manner.

Hands-on Maintenance Training

By providing realistic collision simulations and diagnostic capabilities, the board prepares students for real-world maintenance and troubleshooting of airbag systems.

Enhanced Safety Knowledge

Students gain valuable insights into the role of airbags in overall vehicle safety, the limitations of airbag systems, and the importance of proper maintenance to ensure reliability.

After-Sales Service

We are committed to providing excellent after-sales support for the Car Airbag System Teaching Board, including:

Technical Assistance

Professional guidance on installation, operation, and troubleshooting is available through our dedicated technical support team.

Warranty Service

The product includes a one-year warranty covering manufacturing defects. In case of any issues, we will repair or replace components promptly.

Spare Parts Supply

Spare parts and replacement components are available to ensure the product remains functional for extended use.

User Training

Comprehensive training resources, including user manuals and video tutorials, are provided to ensure users can fully utilize the product's capabilities.

Customer Support

Our customer service team is available to address any inquiries or concerns, ensuring a seamless and satisfactory experience.

Why Choose the Car Airbag System Teaching Board?

Comprehensive Educational Tool

Combines theory with practical applications, offering a complete learning experience for students studying airbag systems.

Durable and Ergonomic Design

Built to withstand rigorous use while maintaining portability with self-locking casters.

Advanced Diagnostics and Realistic Simulation

The system provides diagnostic capabilities and collision simulations, preparing students for modern automotive safety standards.
