Automotive Starting System Module

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of automotive starting system module in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

Automotive Starting System Module – Professional Automotive Training Equipment

Product Overview

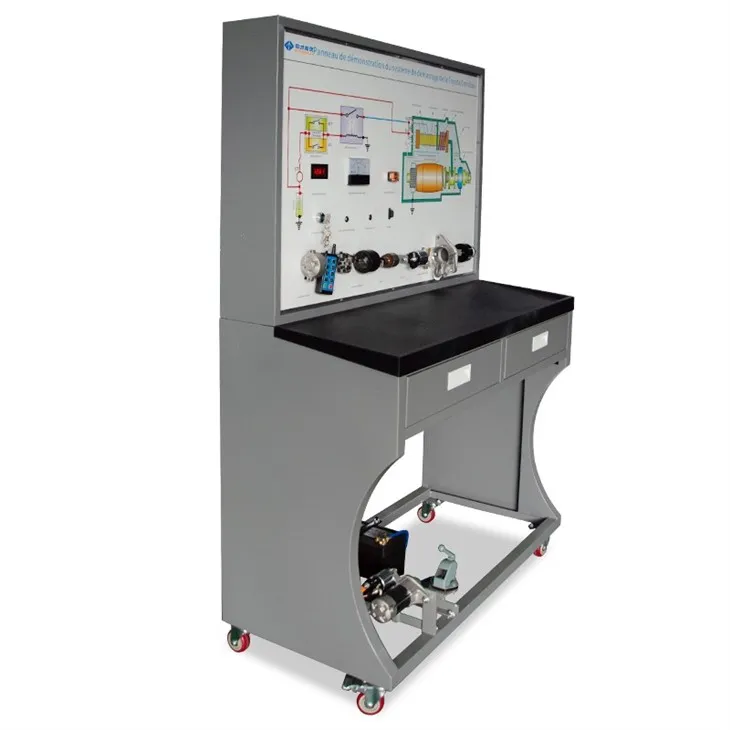

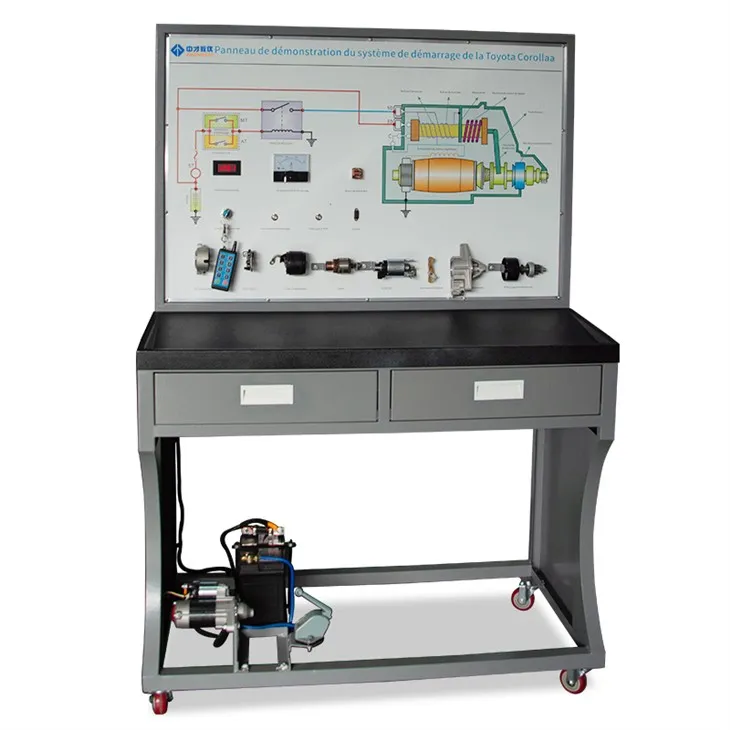

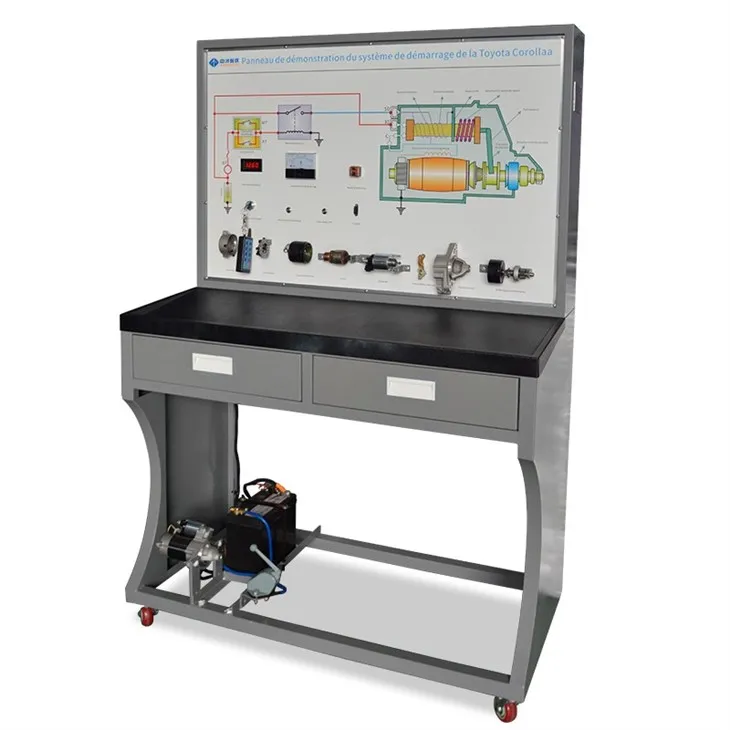

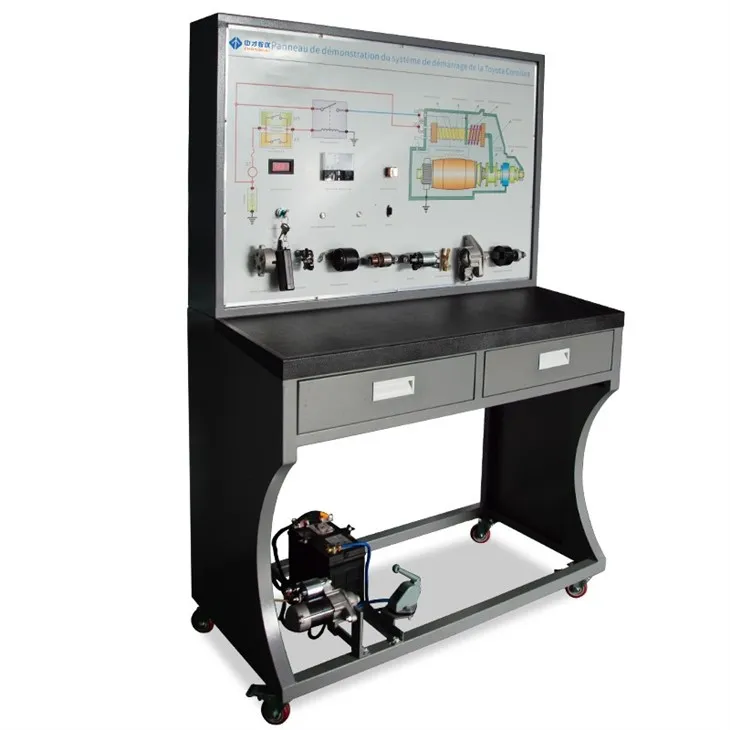

This Automotive Starting System Training Equipment is designed for automotive electrical system education, practical instruction, and technical assessment. It demonstrates the operating principles and working process of a vehicle starting system using actual components, including a starter motor assembly, battery, ignition switch, and starter relay.

As a practical Automotive Education Equipment solution, it helps students understand starting circuit structures, electrical signal measurement, and fault diagnosis. The integrated control panel, circuit schematic, and fault simulation unit provide an effective learning platform for vocational schools, technical colleges, and automotive laboratories.

Main Features

Real Starting System Demonstration
Uses a starter motor assembly and related electrical components to demonstrate the actual operation of an automotive starting system, supporting hands-on learning and practical experiments.

Electrical Measurement and Testing
The control panel is equipped with test terminals and a color circuit schematic. Students can use a multimeter to measure voltage, current, resistance, and frequency for circuit analysis and troubleshooting.

Fault Simulation and Diagnosis
The built-in fault simulation unit allows instructors to introduce common starting system faults for practical diagnosis, troubleshooting exercises, and technical assessments.

Integrated Control and Display Panel
Features a voltmeter with a 0–30V range, an ammeter with a 0–500A range, an ignition switch, a starter relay, and a master power switch for convenient operation and monitoring.

Mobile and Stable Structure
The equipment is mounted on a mobile stand with locking casters, allowing convenient movement between classrooms, workshops, and automotive teaching laboratories.

Technical Specifications

Operating Voltage: Typically DC 12V; DC 24V versions available for selected models

External Power Supply: AC 220V ±10%, 50Hz

Operating Temperature: Depending on the model, -40°C to +50°C, -50°C to +50°C, or -5°C to +40°C

Standard Dimensions: Approximately 1240 × 600 × 1700 mm (L × W × H)

Alternative Dimensions: 1600 × 1100 × 200 mm or 1300 × 900 × 1600 mm, depending on the configuration

Battery: Common specification 12V 45Ah, 550CCA

Voltmeter Range: 0–30V

Ammeter Range: 0–500A

Main Components: Starter motor assembly, battery, ignition switch, starter relay, master power switch, testing and control panel, fault simulation unit, and mobile stand

Educational Applications

This Automotive Teaching Equipment is suitable for practical training and assessment in automotive electrical technology, starting system operation, circuit testing, and fault diagnosis. It supports classroom demonstrations, laboratory experiments, hands-on exercises, and competency-based assessments.

The equipment can be used as an Automotive Training Platform to help students develop practical skills in electrical measurement, circuit analysis, starting system maintenance, and troubleshooting.

Included Accessories and Learning Materials
