Electric Chair Sytstem Training Panel Trainer

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of electric chair sytstem training panel trainer in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

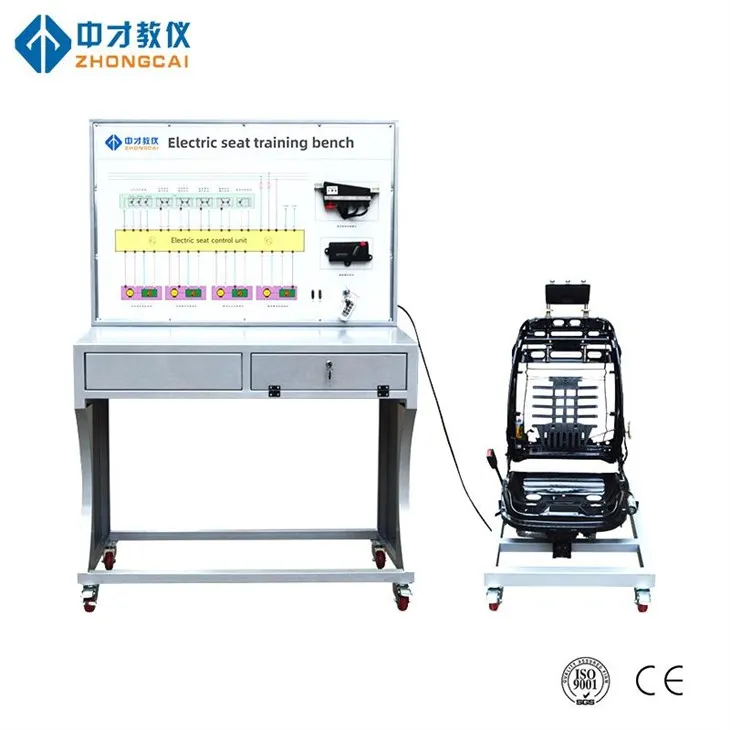

Electric Chair Sytstem Training Panel Trainer

The electric seat means that the passenger only needs to pull or press some buttons to move the seat forward and backward, and the back and forth of the backrest by the electric drive.

The electric seat control system of passengers can adjust the seat sliding and reclining by electricity; the electric seat control system of the driver can not only adjust the sliding and reclining of the seat, but also realize the front vertical, rear vertical and headrest And the adjustment of the position of the waist pad, and some also have the function of position storage. The electric seat is mainly composed of three parts: the seat switch and the position sensor, the electronic controller ECU, and the drive motor of the actuator

Main Features

Real working electric seat system, showing forward/backward movement, tilt adjustment, vertical lift, and memory function.

Seat frame and automotive electrical trainer panel are connected with aviation plugs for real-time signal testing.

Transparent seat structure allows direct observation of motor operations and mechanical components.

The trainer board is equipped with diagnostic terminals for testing voltage, resistance, current, and frequency signals.

Durable automotive electrical training aids design with professional wiring, fuses, relays, and a clear printed circuit diagram.

Fault simulation available via remote control, enabling practical training in troubleshooting.

Comes with manuals, consumables (fuses, relays), and video instructions to support teaching.

Technical Specifications

Dimensions: 1200×600×1700mm (trainer board); seat size based on original vehicle.

Power supply: AC 220V±10% 50Hz / DC 12V.

Working temperature: -40℃ to +50℃.

Steel frame: 60×40×3mm; cabinet made of 1.5mm cold-rolled steel; mobile wheels 100×50mm.

This automotive electrical trainer is an essential tool for vocational schools, colleges, and training centers, making complex automotive systems easy to understand and teach.
