Car Can-Bus System Teaching Board

By analyzing the old process and usage of Automotive Teaching Board Panel, teaching kit tool, gearbox dissection demonstration bench, we have formulated a new process, thereby improving product quality and economic benefits. The continuous improvement of our high-quality, professional and technical team lays the foundation for supporting our strategic planning. Looking forward to the future, in the new century, facing new opportunities and challenges, our company will take today as a new starting point. The vision of our business is supported by operational standards and standards and policies, and every one of our employees will abide by it. With the concept of 'excellent quality and first-class service', we will meet the challenges of the market.

Product Detail

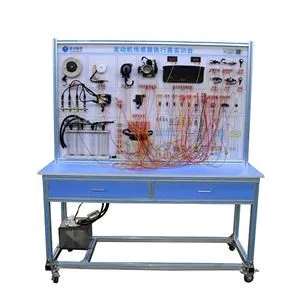

Can/Most Bus Simulator on Board /Car CAN-BUS system teaching board

Based on the real Audi on-board gateway system, the training system integrates all related sensors and actuators into a teaching board, demonstrating the working principle of the automotive gateway system. It can be used for fault diagnosis, data measurement and other practical operations.

Functional features

1. The real running CAN/LIN/MOST communication system of automobile fully demonstrates the composition and working process of the gateway communication system of automobile.

2. The display board is equipped with a digital display table, which can display real-time changes of relevant sensor parameters.

3. The board is painted with spray-painted diagram and equipped with detection terminal, which can directly detect the electrical signals of each sensor, actuator and control unit pin, such as resistance, voltage, current and frequency signals, etc.

4. The teaching board is equipped with a fault setting system, which can set one or more common faults to simulate the circuit faults of the gateway communication system, so as to achieve the purpose of examination

5. The teaching board is equipped with a diagnostic socket, which connected with a special or general purpose automobile decoder to perform self-diagnosis functions such as reading fault codes, clearing fault codes and reading data streams for the gateway communication system.

FAQ for CAN-BUS system teaching board

1.Which port will you ship the goods ?

We offer price of EXW, shipping port is Guangzhou port.

2.Can you produce based on ours design and special request ?

Yes, no problem, just offer your parameter or design picture for us reference.

3.What about the mass production time ?

The production time will according to the quantity of the order. Normally will take 5 days.

4.What is your terms of delivery?

EXW, FOB, CFR, CIF, BY SEA.

5.What factors affect the price?

Car model, material, dimension, quantity, etc.

For your inquiry, if possible, try to give us all these information to get exact quotation.

Our items are commonly identified and trusted by customers and may fulfill continuously switching economic and social wants of Car Can-Bus System Teaching Board. Our enterprise tenet is: abide by contracts, keep reputation, survive by quality. In terms of product research and development and design, our company adheres to the strategy of independent innovation, grasps the industry development frontier and improves the company's innovation and research and development capability.
