Hybrid Vehicle Dissection and Fault Detection Platform

Product Introduction

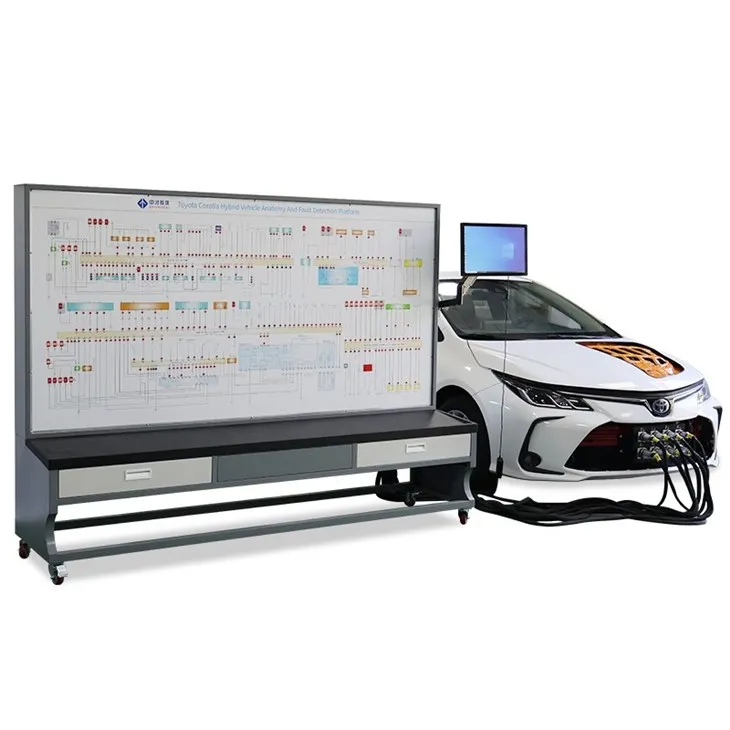

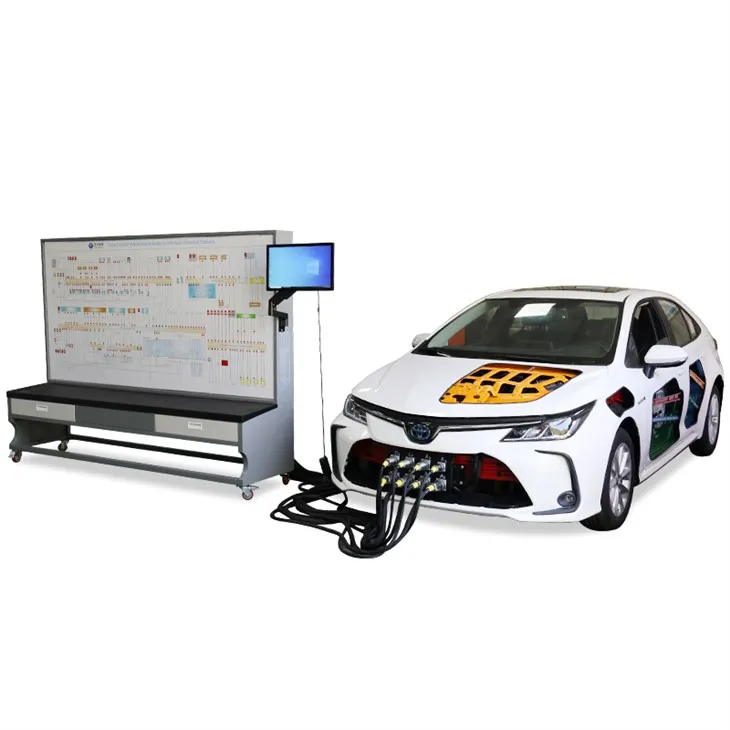

The Hybrid Vehicle Dissection and Fault Detection Platform is specially designed for automotive colleges, training institutions, and vocational schools. Built from modified new energy vehicles, this platform allows students to observe the engine compartment, side body structure, steel plate thickness, suspension system, and door internal components through partial dissection. It helps learners quickly understand vehicle construction, internal structures, and functional principles, improving their hands-on skills in electric vehicle education and automotive systems. This platform is a complete automotive training equipment solution for modern hybrid and electric vehicle teaching.

Functional Features

Key components of the body panels, frame, mechanical, electrical, power battery, and motor systems are carefully dissected while maintaining the relative integrity of the vehicle.

Sheet metal and glass openings are neatly cut, painted in different colors to indicate separate structures, ensuring safety and durability.

Retained body panels, interior trim, and paint remain undamaged; cut sections are edged with adhesive strips to preserve the support functions of key components.

After dissection, wiring harnesses, suspension, electrical systems, power battery, and motor are fully visible for detailed study.

The dissected vehicle remains fully operational and can be driven normally, demonstrating real hybrid vehicle functionality.

The layout of powertrain, transmission, suspension, driving, braking, and steering systems is clearly displayed, providing a realistic learning environment.

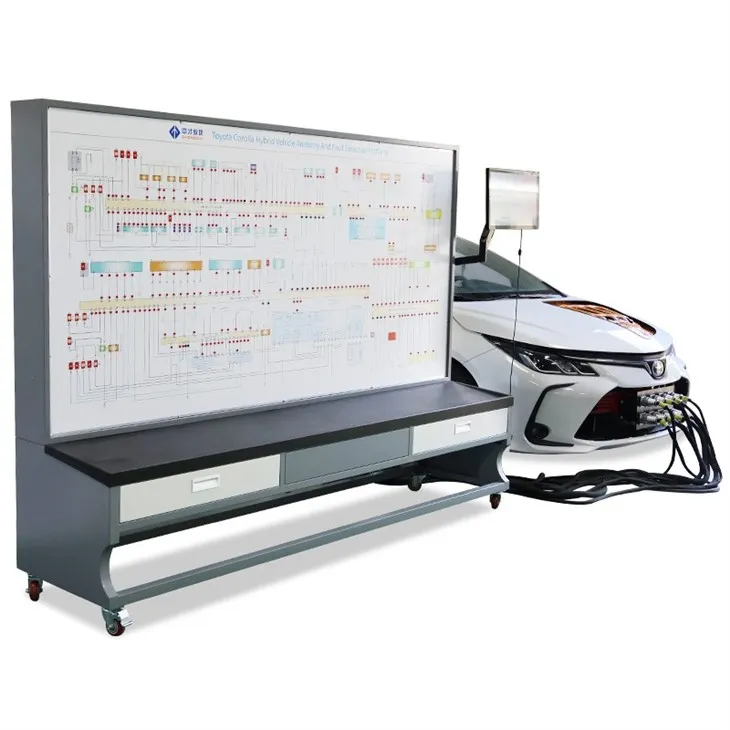

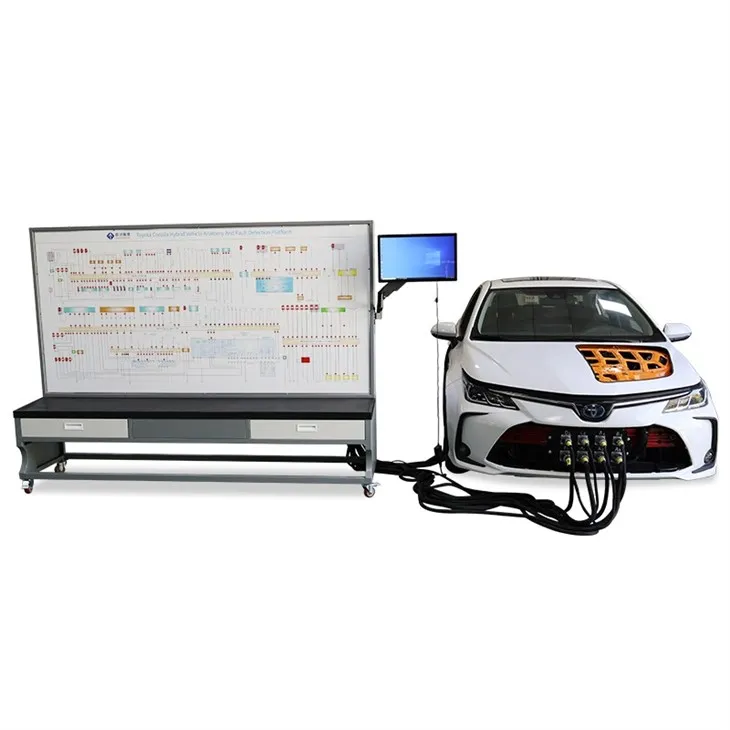

The included fault detection platform connects to the dissected vehicle via industrial-grade aviation connectors to test low-voltage control circuits such as the drive system, battery management system, ABS, air conditioning, and body electrical systems.

The platform operates independently; when disconnected, the vehicle systems still function normally.

The platform panel is made of high-grade aluminum-plastic composite board, resistant to impact, stains, fire, and moisture, with a primer coating for durability.

Equipped with test terminals, the platform allows direct measurement of resistance, voltage, current, and frequency signals for all low-voltage components.

The platform features a 1.5mm cold-rolled steel frame, welded steel base with powder coating, self-locking casters, and a 40cm tabletop for instruments and documentation.

Includes a 21-inch all-in-one machine for fault simulation, data retrieval, and practical training in electric vehicle diagnostics.

Technical Parameters

Overall Vehicle Dimensions: As per original vehicle specifications

Fault Detection Platform Dimensions: 2400×700×1800mm (L×W×H)

Operating Voltage: As per original vehicle specifications

Control Voltage: 12V

Operating Temperature: -50℃～50℃

Unique Advantages

Comes with professional testing instruments for immediate electrical diagnostics.

Includes practical training courses to enhance student learning and understanding of hybrid and electric vehicle systems.

Provides hands-on experience that competitors often do not offer, making it ideal for modern automotive teaching equipment programs.

Fully functional dissected vehicle allows real-time demonstration and experimentation.

High-quality, durable materials ensure long-term use and reliable performance.
