Petrol Engine Training Equipment Engine Anatomy Model

Guangdong Zhongcai Education Equipment Co.,Ltd. is one of the most reliable manufacturers and suppliers of petrol engine training equipment engine anatomy model in China. Welcome to buy high quality engineering education equipment from our factory. Also, OEM&ODM service is available.

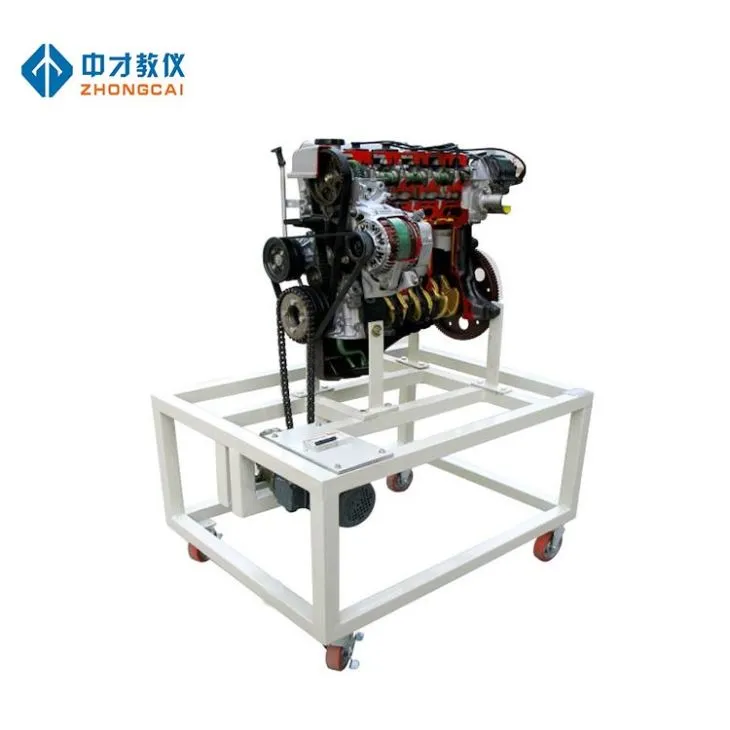

Petrol engine training equipment engine anatomy model

Anatomical model of diesel engine cutaway engine model

Automotive training model cutaway engine with transmission dissection trainer engine training model driving school equipment

Anatomical parts of the engine:

Cylinder block (piston and crankshaft can be observed outside);

Valve chamber cover (camshaft operation can be observed);

Cylinder head (can be observed outside the inlet and exhaust valve operation);

Intake/exhaust manifold and filter;

Generators and pumps;

Timing mechanism (can be observed outside the operation of timing mechanism);

Technical specifications

Overall dimensions: 800×600×1200mm(length × width × height)

Power supply: 220V±10% 50Hz

Single-phase gear reduction motor:

Rated voltage: AC 220V 50Hz

Rated power: 250W

Rated speed: 0-15 RPM

Working temperature: -40℃ ~ +50℃

Steel pipe: 40 * 40 * 3 mm

Moving casters: 100*50m

An anatomical model of a diesel engine, zc-qce003

Gasoline engine anatomical model zc-qce002
